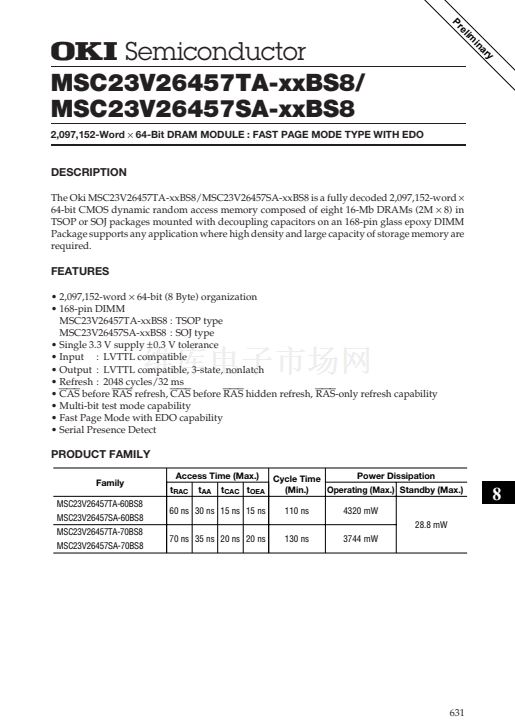

隆 Semiconductor

MSC23V26457TA-xxBS8/

MSC23V26457SA-xxBS8

隆 Semiconductor

MSC23V26457TA-xxBS8/MSC23V26457SA-xxBS8

2,097,152-Word

樓

64-Bit DRAM MODULE : FAST PAGE MODE TYPE WITH EDO

DESCRIPTION

The Oki MSC23V26457TA-xxBS8/MSC23V26457SA-xxBS8 is a fully decoded 2,097,152-word

樓

64-bit CMOS dynamic random access memory composed of eight 16-Mb DRAMs (2M

樓

8) in

TSOP or SOJ packages mounted with decoupling capacitors on an 168-pin glass epoxy DIMM

Package supports any application where high density and large capacity of storage memory are

required.

FEATURES

鈥?2,097,152-word

樓

64-bit (8 Byte) organization

鈥?168-pin DIMM

MSC23V26457TA-xxBS8 : TSOP type

MSC23V26457SA-xxBS8 : SOJ type

鈥?Single 3.3 V supply

鹵0.3

V tolerance

鈥?Input : LVTTL compatible

鈥?Output : LVTTL compatible, 3-state, nonlatch

鈥?Refresh : 2048 cycles/32 ms

鈥?/div>

CAS

before

RAS

refresh,

CAS

before

RAS

hidden refresh,

RAS-only

refresh capability

鈥?Multi-bit test mode capability

鈥?Fast Page Mode with EDO capability

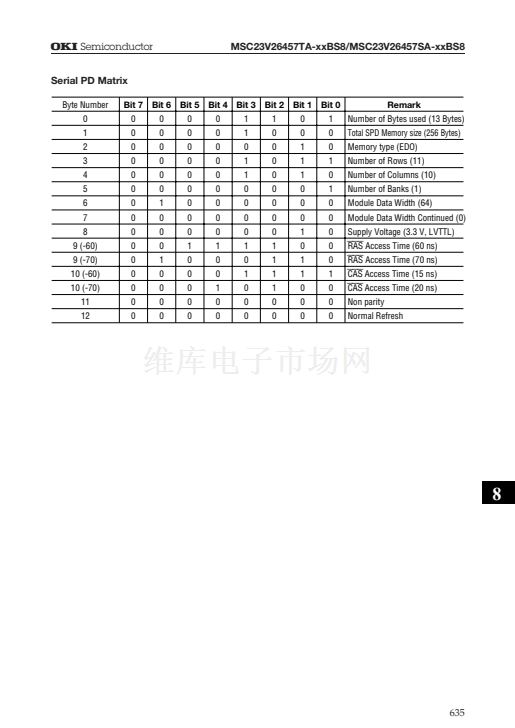

鈥?Serial Presence Detect

PRODUCT FAMILY

Family

MSC23V26457TA-60BS8

MSC23V26457SA-60BS8

MSC23V26457TA-70BS8

MSC23V26457SA-70BS8

Access Time (Max.)

RAC

CAC

OEA

Power Dissipation

Cycle Time

Operating (Max.) Standby (Max.)

(Min.)

110 ns

130 ns

4320 mW

28.8 mW

70 ns 35 ns 20 ns 20 ns

3744 mW

60 ns 30 ns 15 ns 15 ns

631
