MP02 XX 260 Series

MP02 XX 260 Series

Dual Diode Modules

Replaces December 1998 version, DS5102-3.0

DS5102-4.0 January 2000

FEATURES

s

Dual Device Module

s

Electrically Isolated Package

s

Pressure Contact Construction

s

International Standard Footprint

s

Alumina (non-toxic) Isolation Medium

Code

KEY PARAMETERS

V

RRM

1600V

I

FSM

8100A

267A

I

F(AV)

(per arm)

V

isol

2500V

CIRCUIT OPTIONS

Circuit

APPLICATIONS

s

Rectifier Bridges

s

DC Power Bridges

s

Plating Rectifiers

s

Traction Systems

HB

G

GN

VOLTAGE RATINGS

Type

Number

Repetitive

Peak

Voltages

V

RRM

1600

1400

1200

1000

Conditions

PACKAGE OUTLINE

MP02/260-16

MP02/260-14

MP02/260-12

MP02/260-10

T

vj

= 150

o

C

I

RM

= 30mA

V

RSM

= V

RRM

+ 100V

1

2

3

Lower voltage grades available. For full description of part

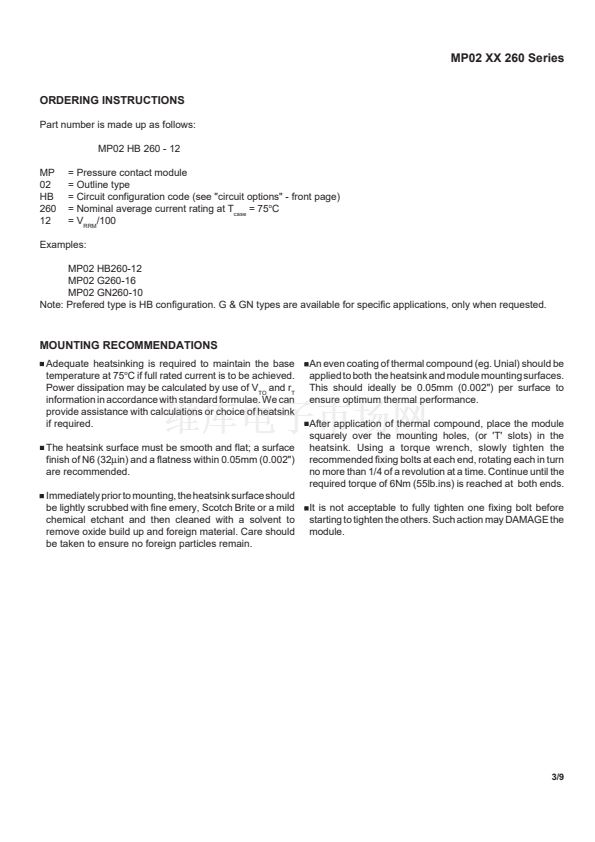

numbers see "Ordering instructions" on page 3.

Module outline type code: MP02.

See Package Details for further information.

CURRENT RATINGS - PER ARM

Symbol

Parameter

Conditions

T

case

= 75

o

C

T

case

= 85

o

C

I

F(AV)

Mean forward current

Halfwave, resistive load

T

heatsink

= 75

o

C

T

heatsink

= 85

o

C

I

F(RMS)

RMS value

T

case

= 75

o

C

Max.

267

240

216

192

420

Units

A

A

A

A

A

1/9
