MM908E625 Datasheet

  • MM908E625

  • Integrated Quad Half H-Bridge with Power Supply, Embedded MC...

  • 40頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Freescale Semiconductor, Inc.
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Document order number: MM908E625
Rev 3.0, 09/2004
Advance Information
Integrated Quad Half H-Bridge with
Power Supply, Embedded MCU, and
LIN Serial Communication

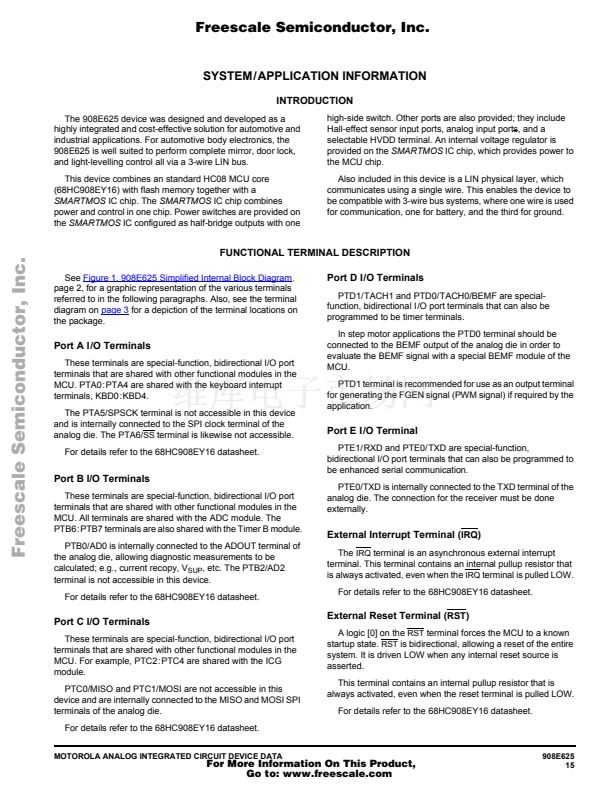

The 908E625 is an integrated single-package solution that includes a high-
performance HC08 microcontroller with a
SMARTMOS
TM
analog control IC.
The HC08 includes flash memory, a timer, enhanced serial communications

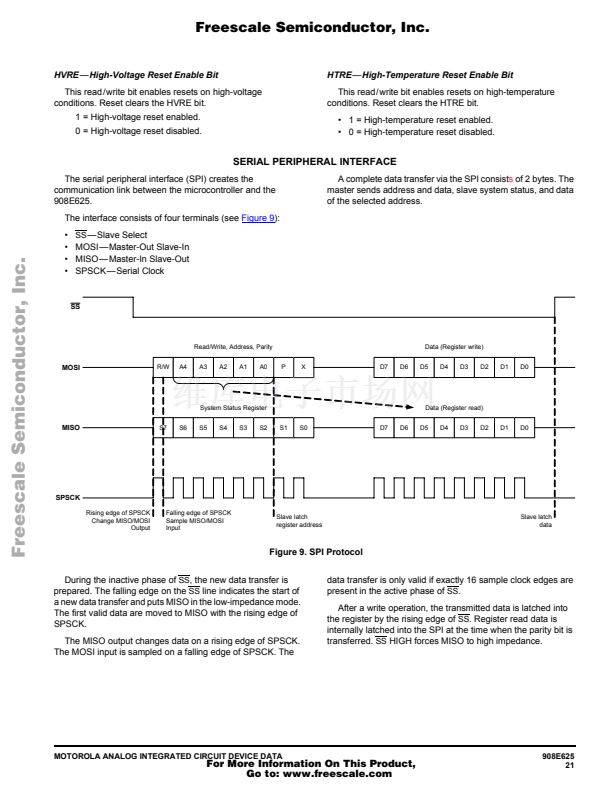

interface (ESCI), an analog-to-digital converter (ADC), serial peripheral
interface (SPI), and an internal clock generator (ICG) module. The analog

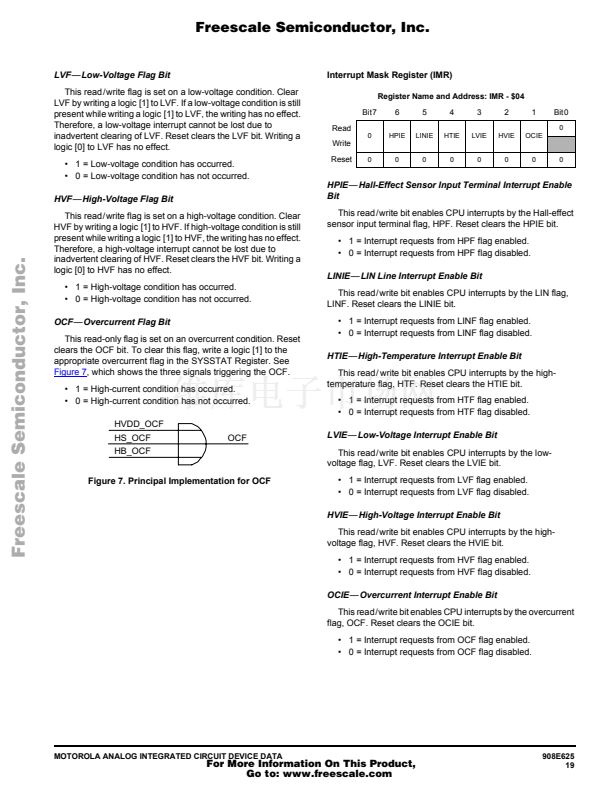

control die provides fully protected H-Bridge/high-side outputs, voltage

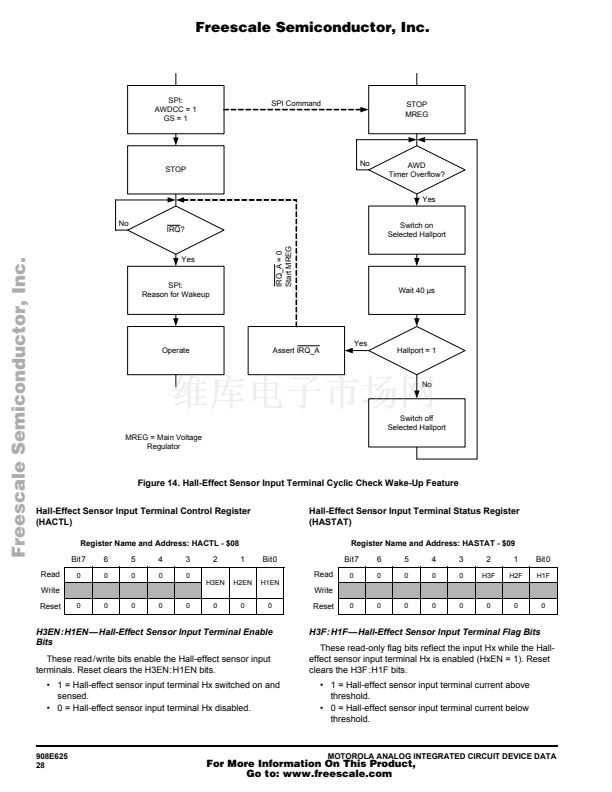

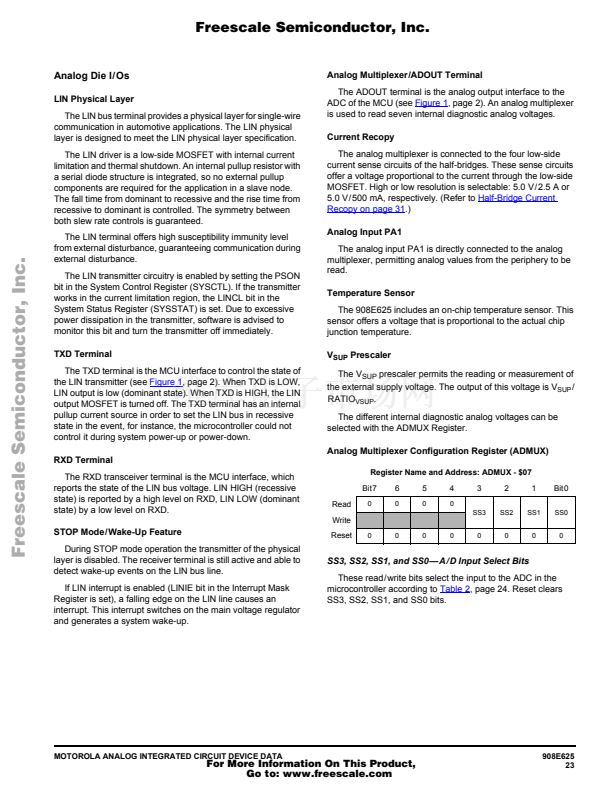

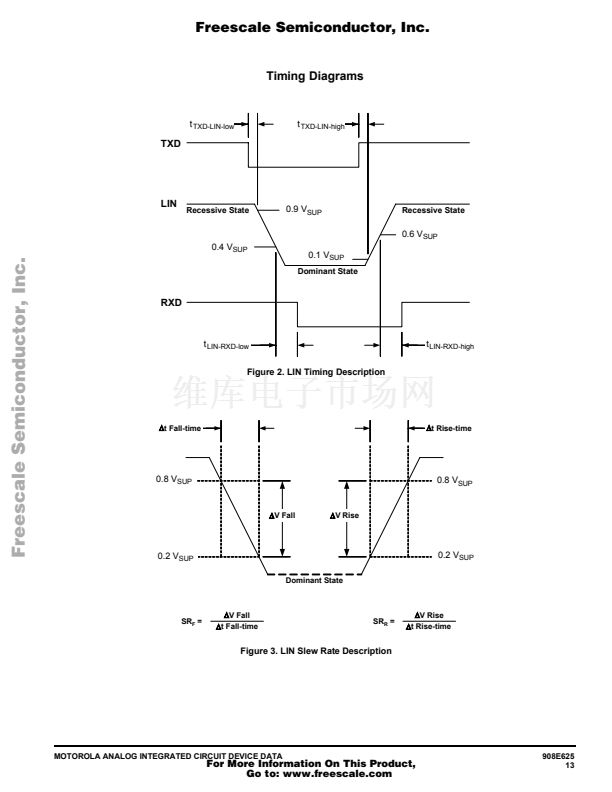

regulator, autonomous watchdog with cyclic wake-up, and local interconnect
network (LIN) physical layer.
The single-package solution, together with LIN, provides optimal
application performance adjustments and space-saving PCB design. It is well
suited for the control of automotive mirror, door lock, and light-levelling
applications.
Features

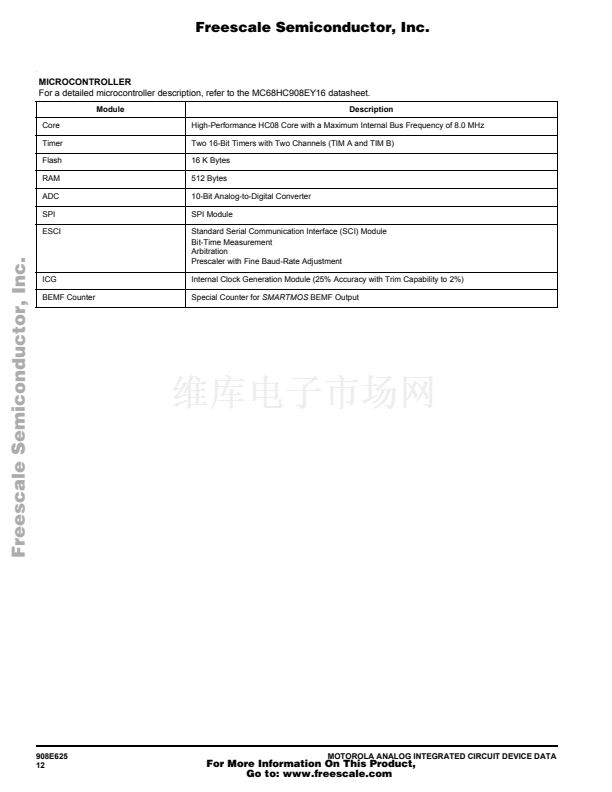

鈥?High-Performance M68HC08EY16 Core
鈥?16 K Bytes of On-Chip Flash Memory
鈥?512 Bytes of RAM
鈥?Internal Clock Generation Module
鈥?Two 16-Bit, 2-Channel Timers
鈥?10-Bit Analog-to-Digital Converter

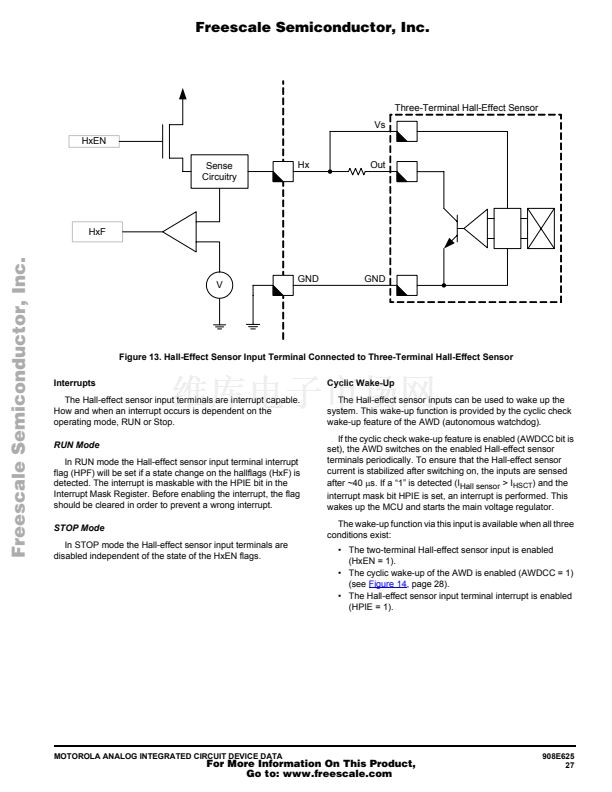

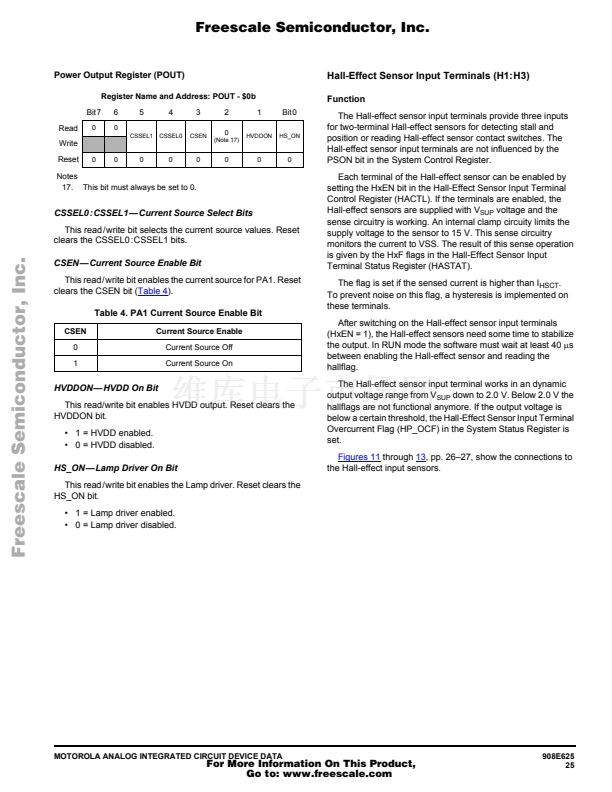

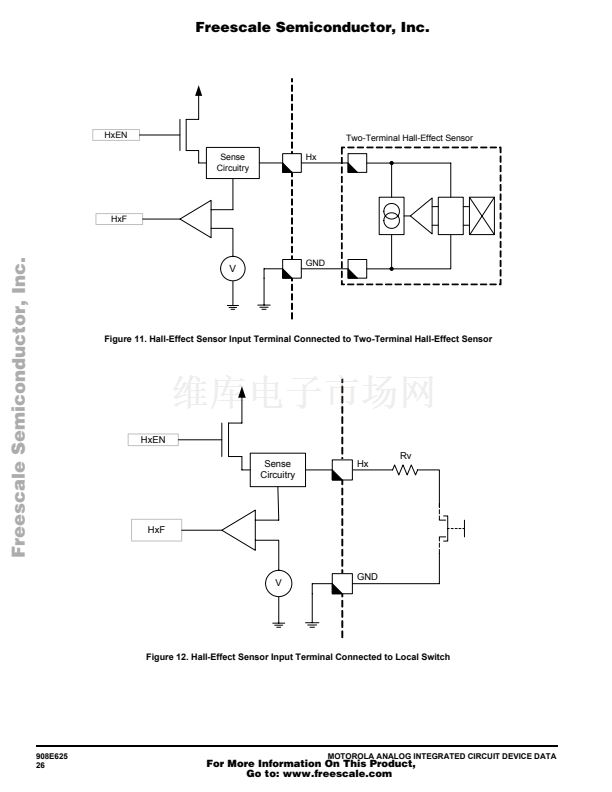

鈥?Three 2-Terminal Hall-Effect Sensor Input Ports

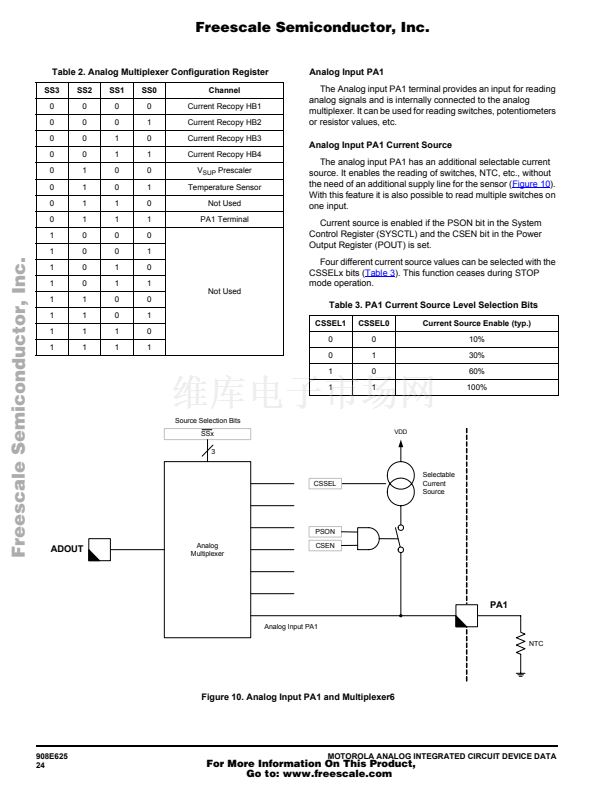

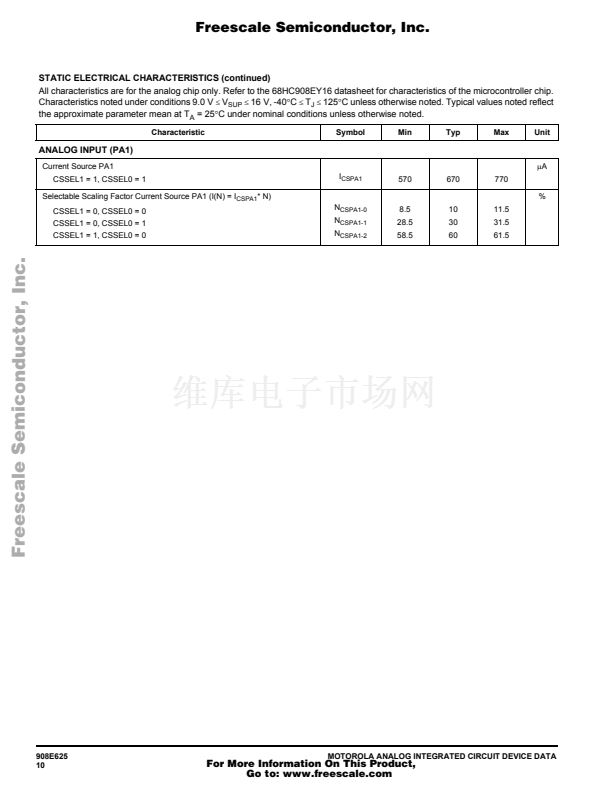

鈥?One Analog Input with Switchable Current Source

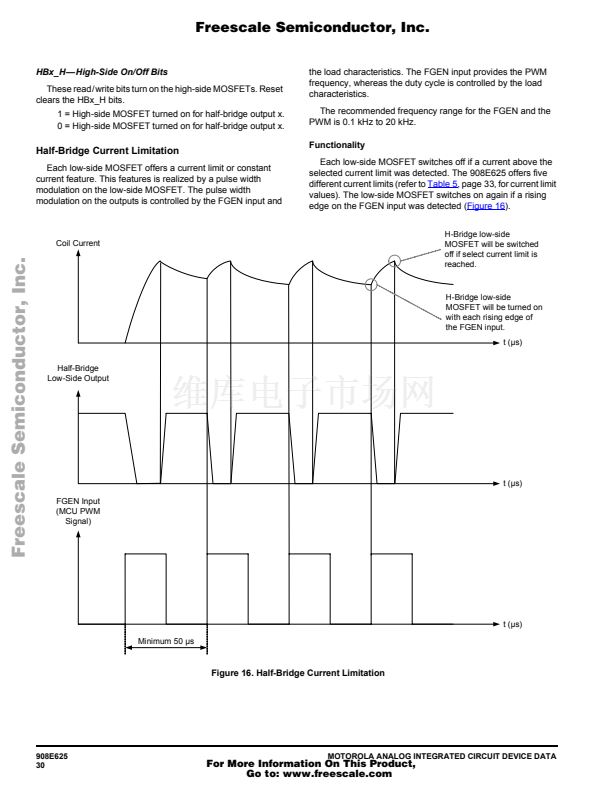

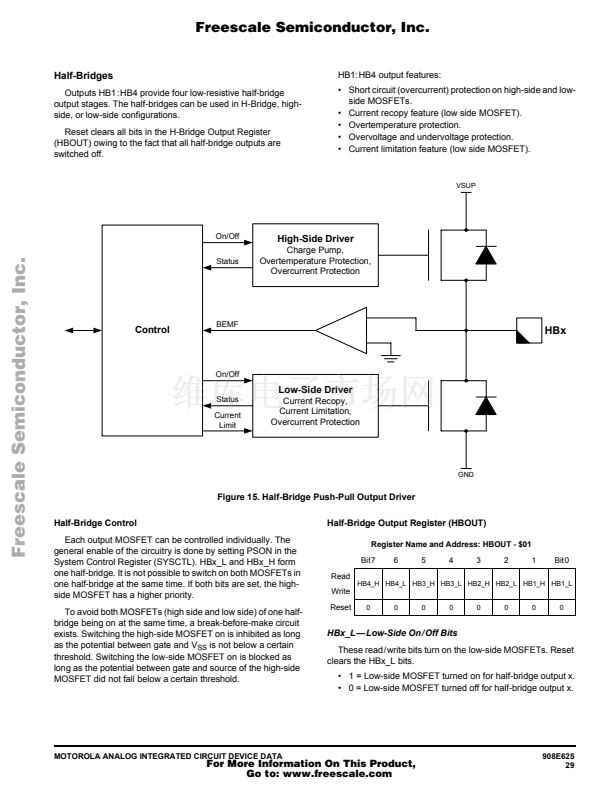

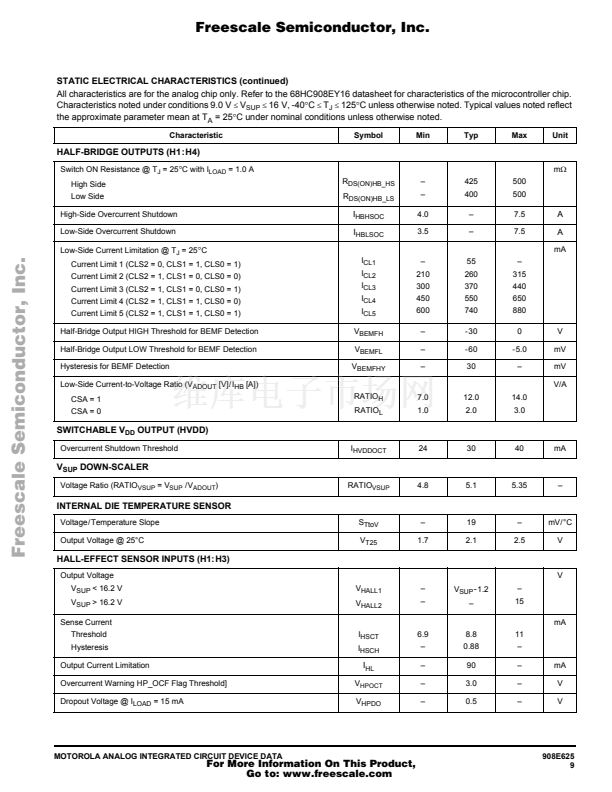

鈥?Four Low R
DS(ON)
Half-Bridge Outputs
鈥?One Low R
DS(ON)
High-Side Output
鈥?13 Microcontroller I/Os
908E625
Simplified Application Diagram
Simplified Application Diagram
908E625
908E625

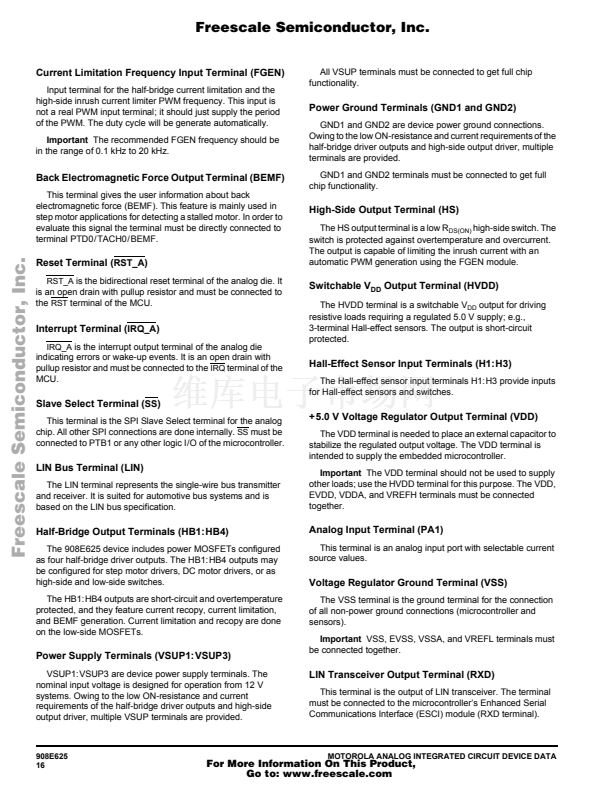

LIN

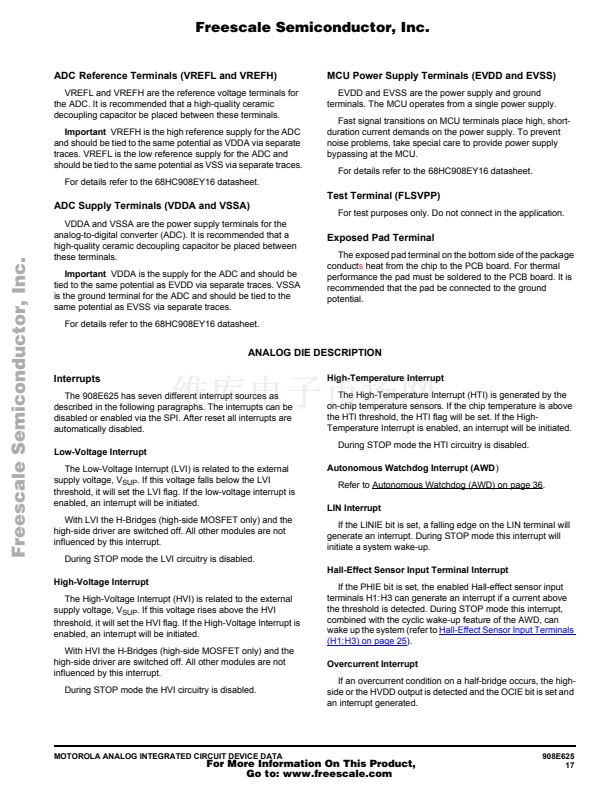

VREFH
VDDA
EVDD
VDD
VREFL
VSSA
EVSS
VSS
RST
RST_A
IRQ
IRQ_A
SS
PTB1/AD1
RXD
PTE1/RXD
PTD1/TACH1
FGEN

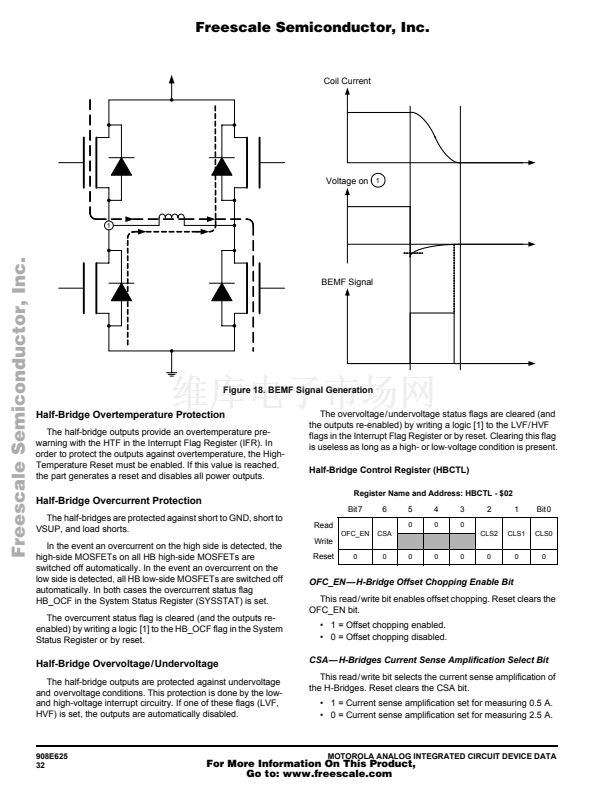

BEMF
PTD0/TACH0/BEMF
VSUP[1:3]
HB1
M
HB2
HB3
HB4
HS
High-Side
Output
HVDD
H1
H2
H3
PA1
Port A I/Os
Port B I/Os
Port C I/Os
Switchable Internal
V
DD
Output
M
M
908E625
H-BRIDGE POWER SUPPLY
WITH EMBEDDED MCU AND LIN
Freescale Semiconductor, Inc...

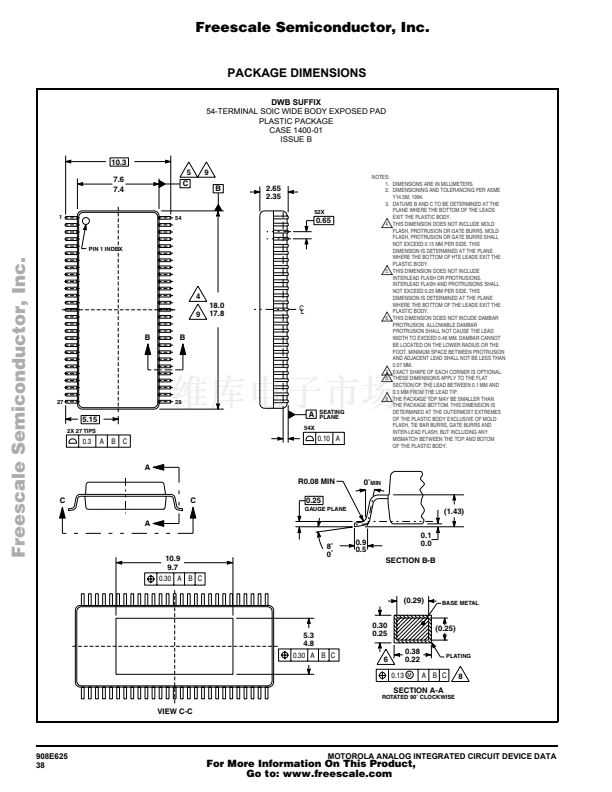

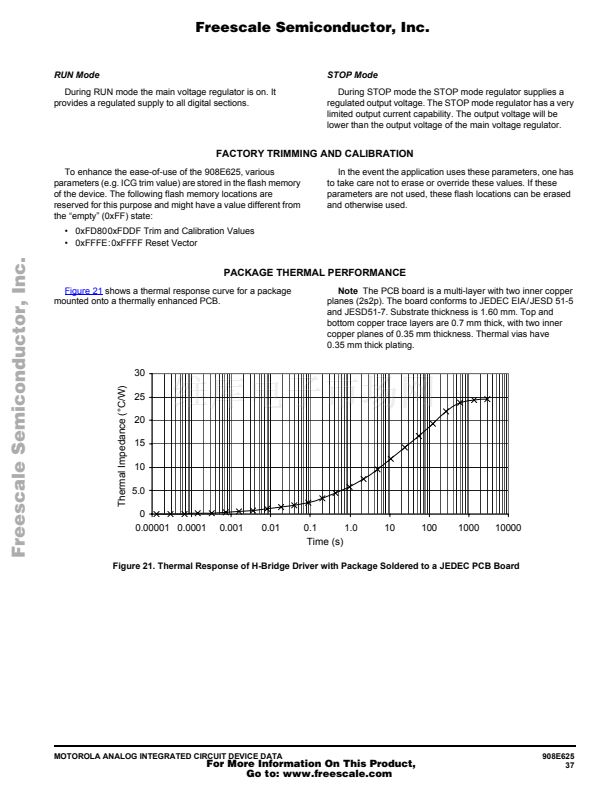

DWB SUFFIX
CASE 1400-01
54-TERMINAL SOICWB-EP
ORDERING INFORMATION
Device
MM908E625ACDWB/R2
Temperature
Range (T
A
)
-40擄C to 85擄C
Package
54 SOIC
WB-EP
4 Half-Bridges
Controlling 3 Loads
Three
2-Terminal Hall-Effect
Sensor Inputs
Analog Input with
Current Source
Microcontroller
Ports
GND[1:2] EP
This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
漏 Motorola, Inc. 2004
For More Information On This Product,
Go to: www.freescale.com
