MAX504CSD+ Datasheet

  • MAX504CSD+

  • ADC, SERIAL 10BIT, LOW POWER, 5V, 504; Resolution (Bits):10b...

  • 174.80KB

  • 16頁

  • Maxim   Maxim

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

19-0280; Rev 2; 11/96
5V, Low-Power, Voltage-Output,
Serial 10-Bit DACs
_______________General Description
The MAX504/MAX515 are low-power, voltage-output,
10-bit digital-to-analog converters (DACs) specified for
single +5V power-supply operation. The MAX504 can
also be operated with 鹵5V supplies. The MAX515
draws only 140碌A(chǔ), and the MAX504 (with internal refer-
ence) draws only 260碌A(chǔ). The MAX515 comes in 8-pin
DIP and SO packages, while the MAX504 comes in 14-
pin DIP and SO packages. Both parts have been
trimmed for offset voltage, gain, and linearity, so no fur-
ther adjustment is necessary.
The MAX515鈥檚 buffer is fixed at a gain of 2. The MAX504鈥檚
internal op amp may be configured for a gain of 1 or 2, as
well as for unipolar or bipolar output voltages. The
MAX504 can also be used as a four-quadrant multiplier
without external resistors or op amps.
For parallel data inputs, see the MAX503 data sheet.
For a hardware and software compatible 12-bit
upgrade, refer to the MAX531/MAX538/MAX539 data
sheet.
___________________________Features
o
Operate from Single +5V Supply
o
Buffered Voltage Output
o
Internal 2.048V Reference (MAX504)
o
140碌A(chǔ) Supply Current (MAX515)
o
INL = 鹵1/2LSB (max)
o
Guaranteed Monotonic Over Temperature
o
Flexible Output Ranges:
0V to V
DD
(MAX504/MAX515)
V
SS
to V
DD
(MAX504)
o
8-Pin SO/DIP (MAX515)
o
Power-On Reset
o
Serial Data Output for Daisy-Chaining
MAX504/MAX515
______________Ordering Information
PART
MAX504CPD
MAX504CSD
MAX504EPD
MAX504ESD
MAX515CPA
MAX515CSA
MAX515EPA
MAX515ESA
TEMP. RANGE
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
14 Plastic DIP
14 SO
14 Plastic DIP
14 SO
8 Plastic DIP
8 SO
8 Plastic DIP
8 SO
_______________________Applications
Battery-Powered Test Instruments
Digital Offset and Gain Adjustment
Battery-Operated/Remote Industrial Controls
Machine and Motion Control Devices
Cellular Telephones
________________Functional Diagram
REFOUT*
REFIN BIPOFF*
Refer to the MAX531/MAX538/MAX539 data sheet for military tem-
perature or die equivalents.
MAX504
MAX515
_________________Pin Configurations
RFB*
2.048V
REFERENCE*
TOP VIEW
VOUT
AGND
POWER-UP
RESET
10-BIT DAC REGISTER
CLR*
CS
SCLK
DIN
CONTROL
LOGIC
4
(MSB)
2 (LSB)
DUMMY
0s
10 DATA BITS
BITS
16-BIT SHIFT REGISTER
* MAX504 ONLY
V
SS
*
DAC
V
DD
DGND*
DIN
SCLK
1
2
8
7
V
DD
VOUT
REFIN
AGND
CS
3
DOUT
4
MAX515
6
5
DOUT
DIP/SO
MAX504 appears at end of data sheet.
1
________________________________________________________________
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800.
For small orders, phone 408-737-7600 ext. 3468.

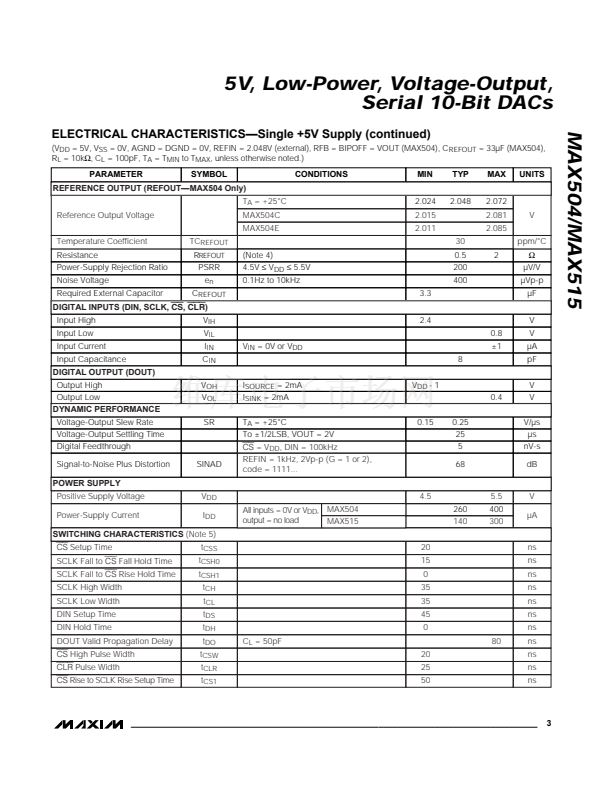

MAX504CSD+ 產品屬性

  • Lead (SnPb) Finish for COTSObsolescence Mitigation Program

  • 50

  • 集成電路 (IC)

  • 數據采集 - 數模轉換器

  • -

  • 25µs

  • 10

  • 串行

  • 1

  • 單電源

  • -

  • 0°C ~ 70°C

  • 表面貼裝

  • 14-SOIC（0.154"，3.90mm 寬）

  • 14-SOIC

  • 管件

  • 1 電壓，單極；1 電壓，雙極

  • *
