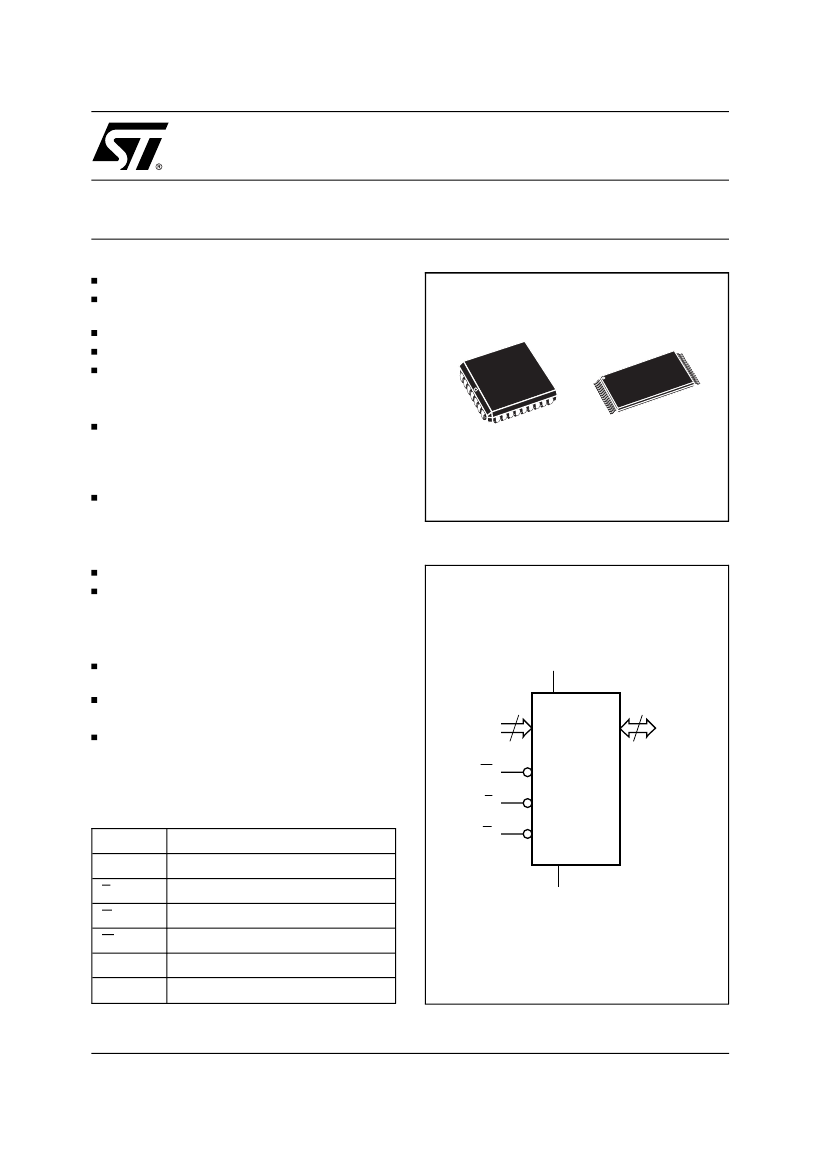

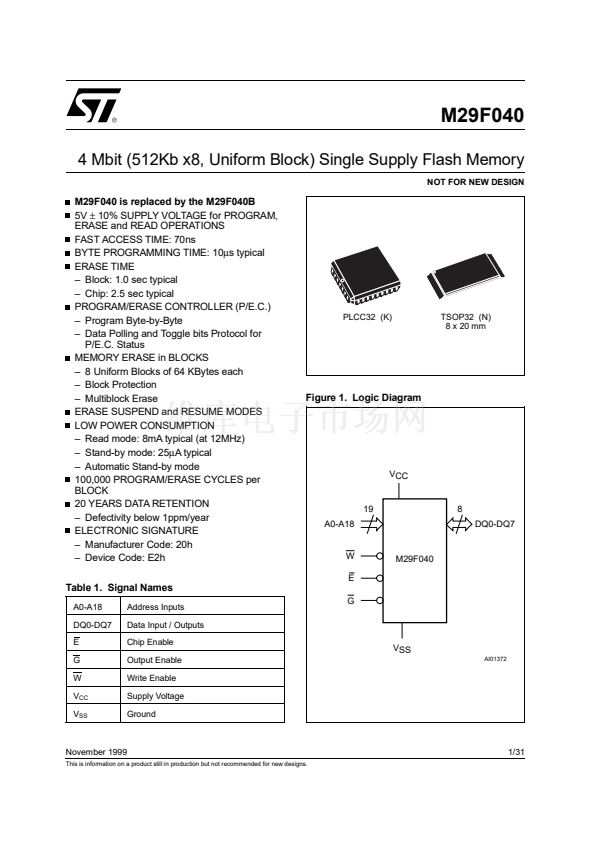

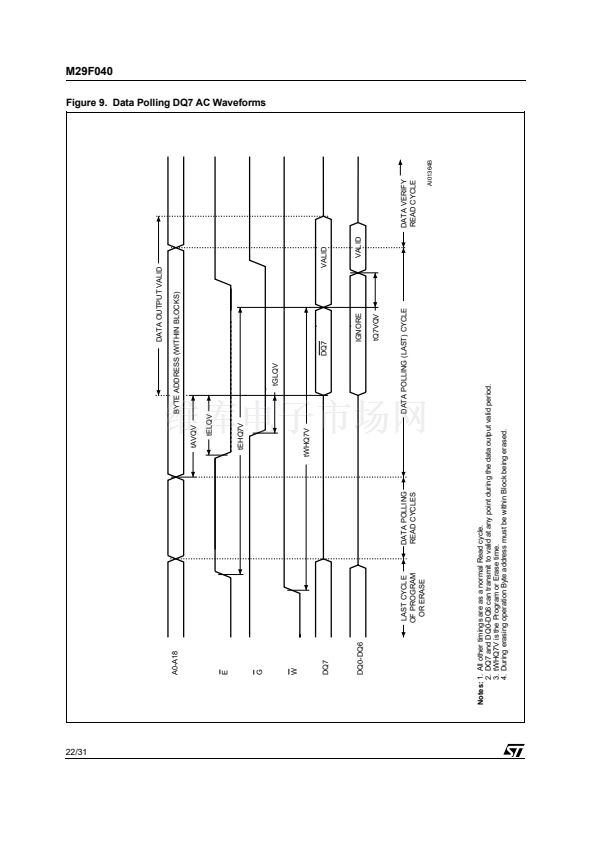

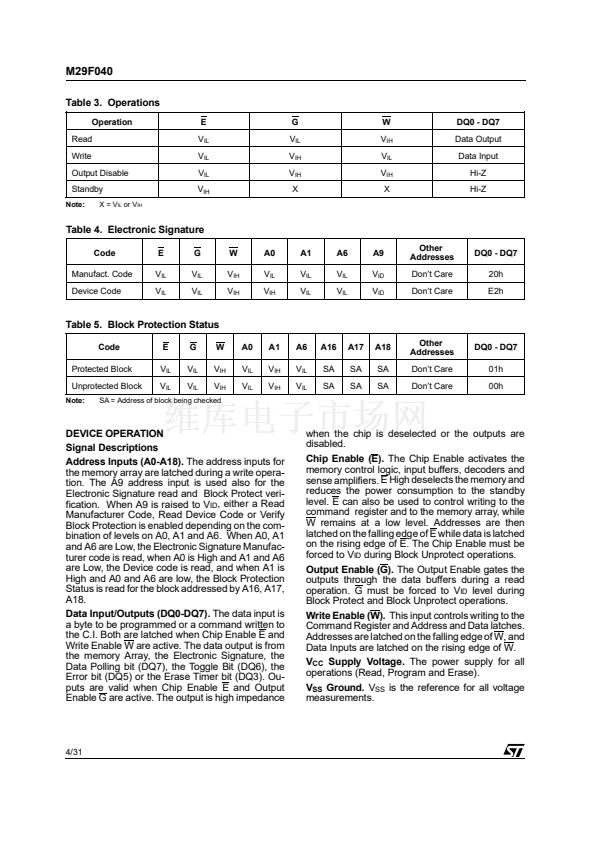

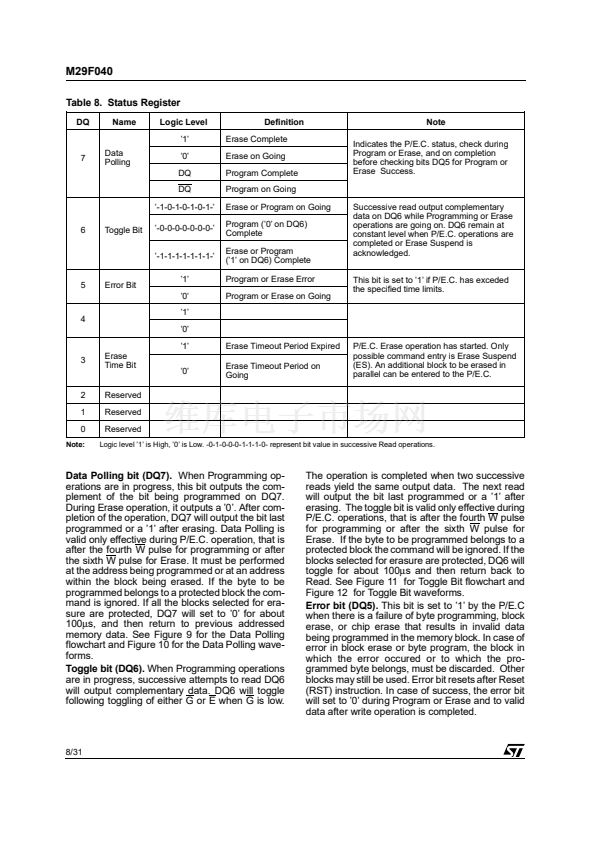

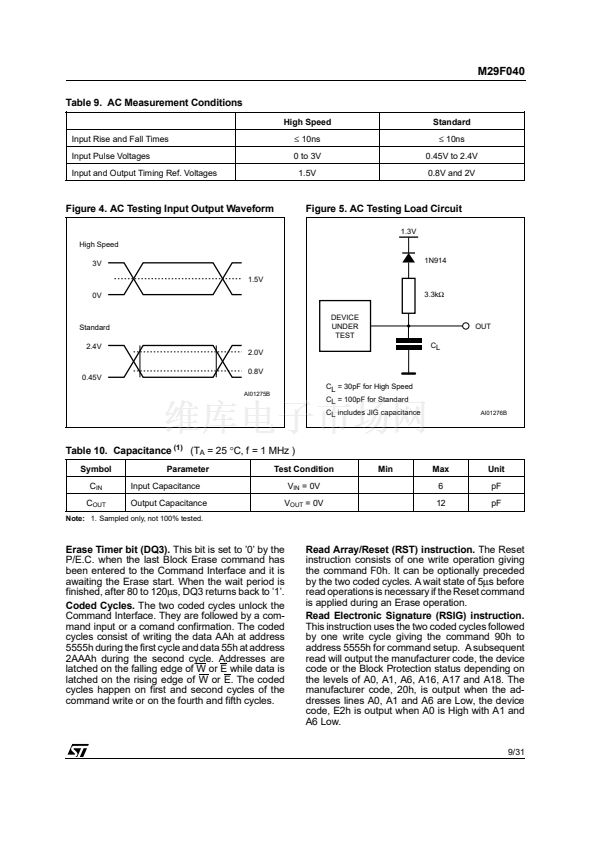

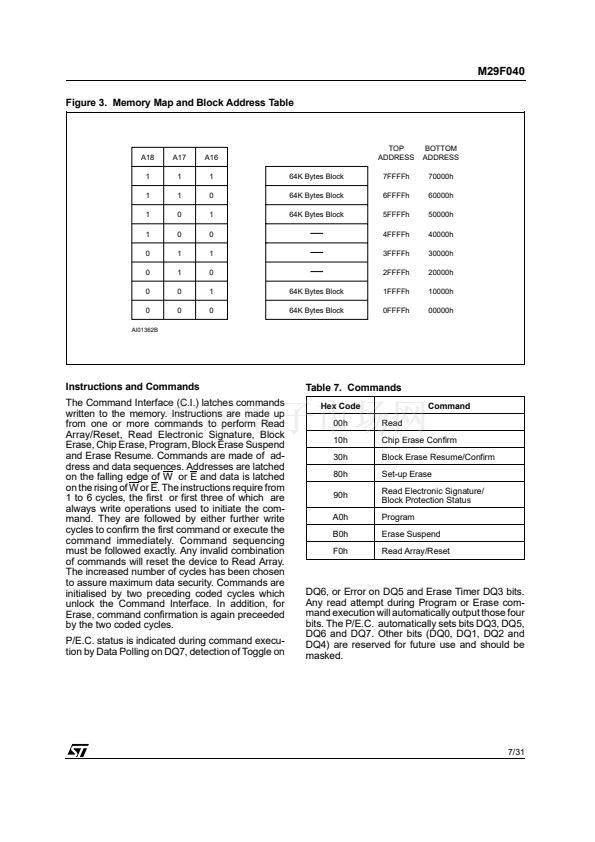

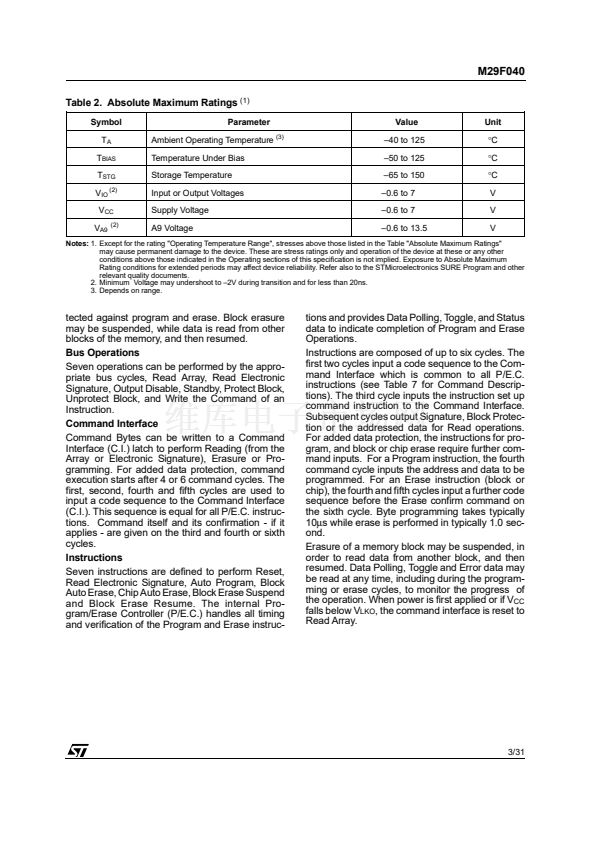

M29F040
4 Mbit (512Kb x8, Uniform Block) Single Supply Flash Memory
NOT FOR NEW DESIGN
M29F040 is replaced by the M29F040B
5V
鹵
10% SUPPLY VOLTAGE for PROGRAM,
ERASE and READ OPERATIONS

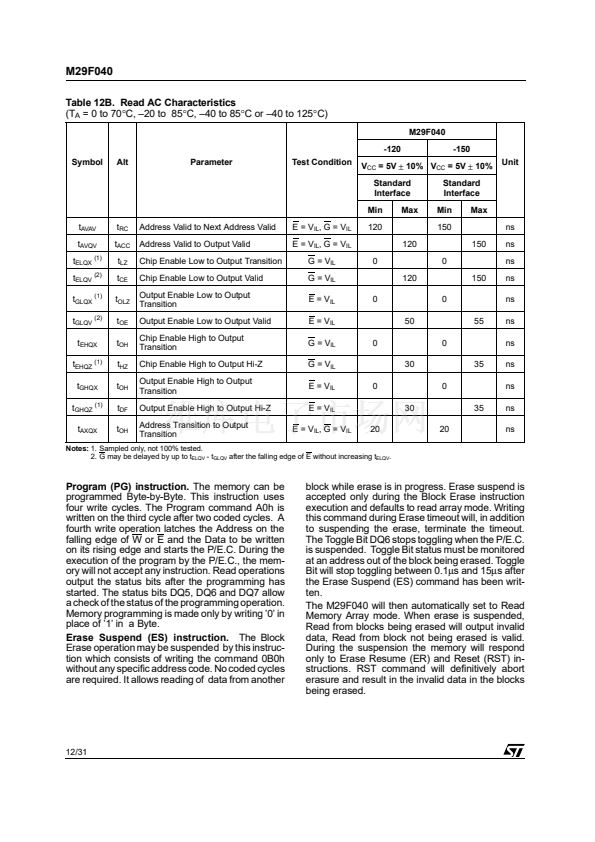

FAST ACCESS TIME: 70ns
BYTE PROGRAMMING TIME: 10碌s typical
ERASE TIME
鈥?Block: 1.0 sec typical
鈥?Chip: 2.5 sec typical

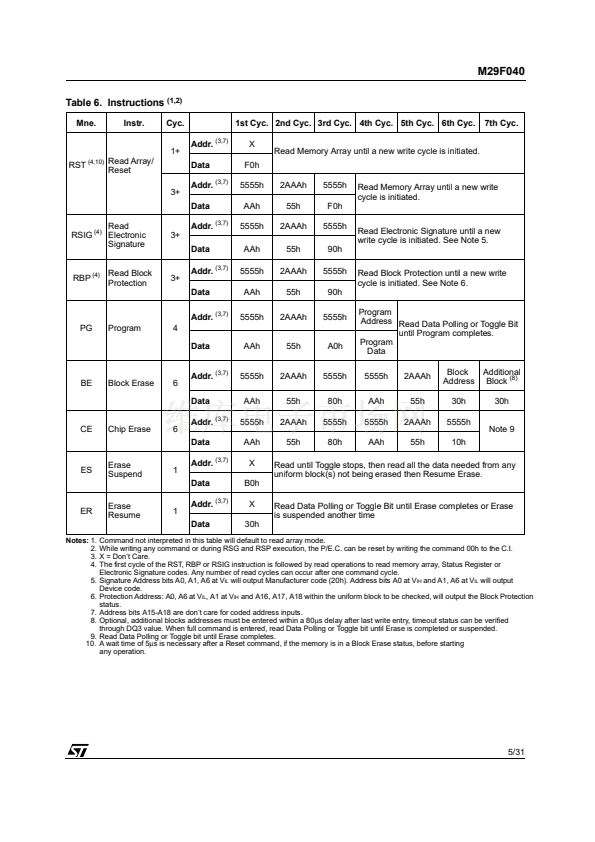

PROGRAM/ERASE CONTROLLER (P/E.C.)
鈥?Program Byte-by-Byte

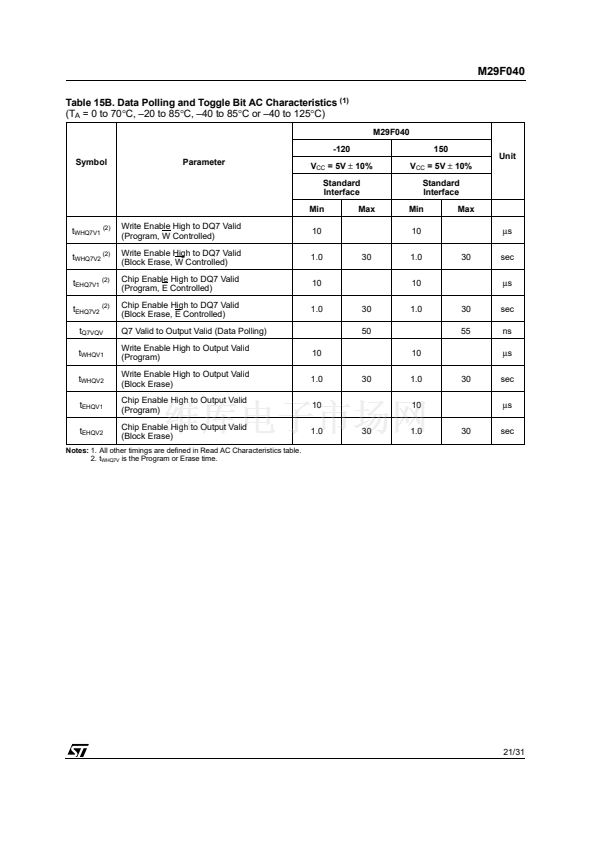

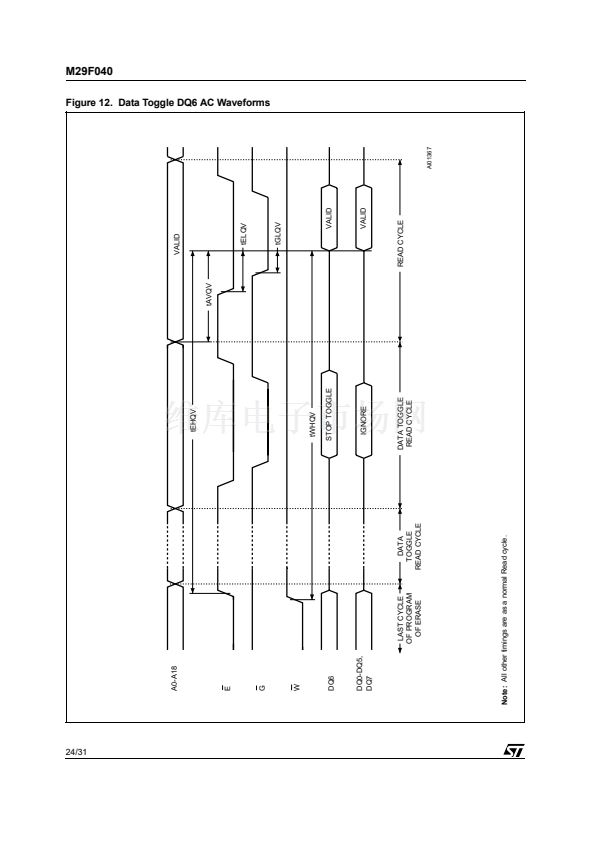

鈥?Data Polling and Toggle bits Protocol for
P/E.C. Status

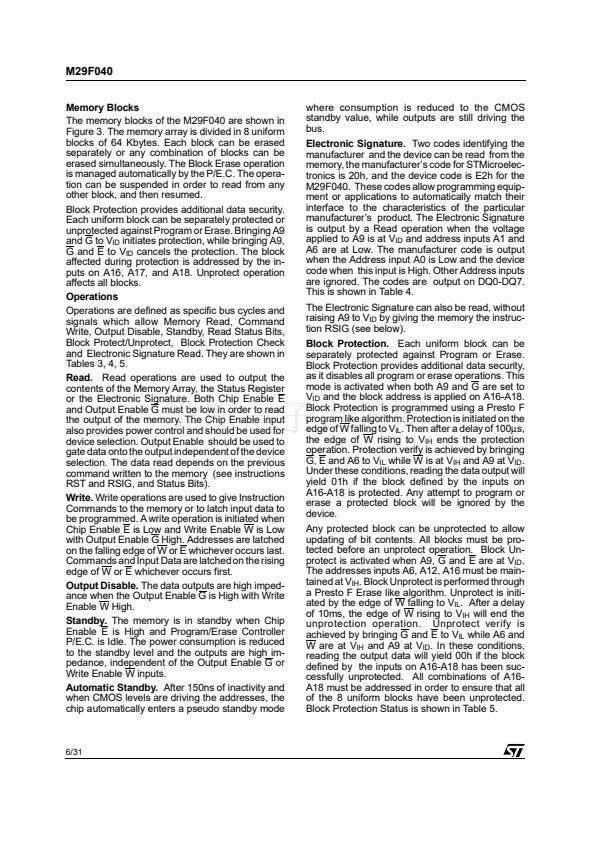

MEMORY ERASE in BLOCKS
鈥?8 Uniform Blocks of 64 KBytes each

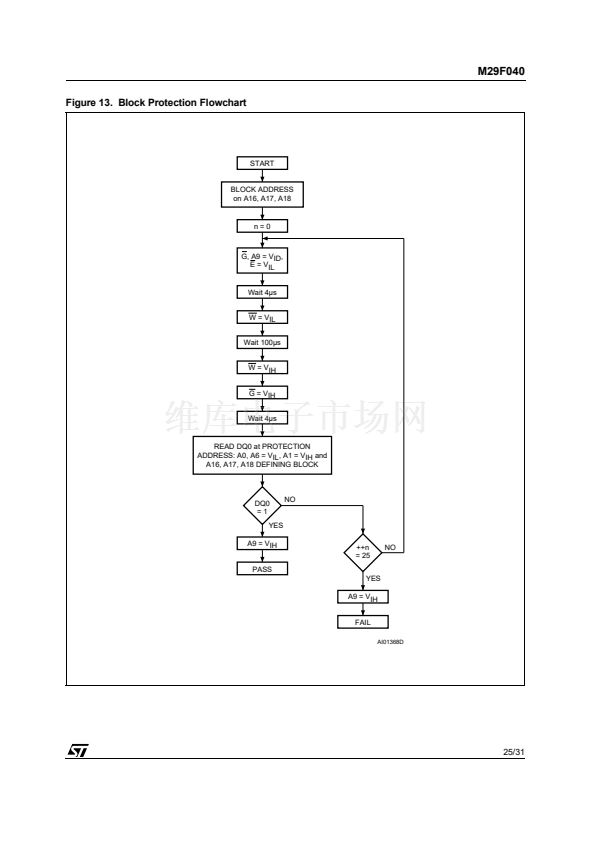

鈥?Block Protection
鈥?Multiblock Erase
ERASE SUSPEND and RESUME MODES
LOW POWER CONSUMPTION
鈥?Read mode: 8mA typical (at 12MHz)
鈥?Stand-by mode: 25碌A(chǔ) typical
鈥?Automatic Stand-by mode
100,000 PROGRAM/ERASE CYCLES per
BLOCK
20 YEARS DATA RETENTION
鈥?Defectivity below 1ppm/year
ELECTRONIC SIGNATURE
鈥?Manufacturer Code: 20h
鈥?Device Code: E2h
Table 1. Signal Names
A0-A18
DQ0-DQ7
E
G
W
V
CC
V
SS
Address Inputs
Data Input / Outputs
Chip Enable
Output Enable
Write Enable
Supply Voltage
Ground

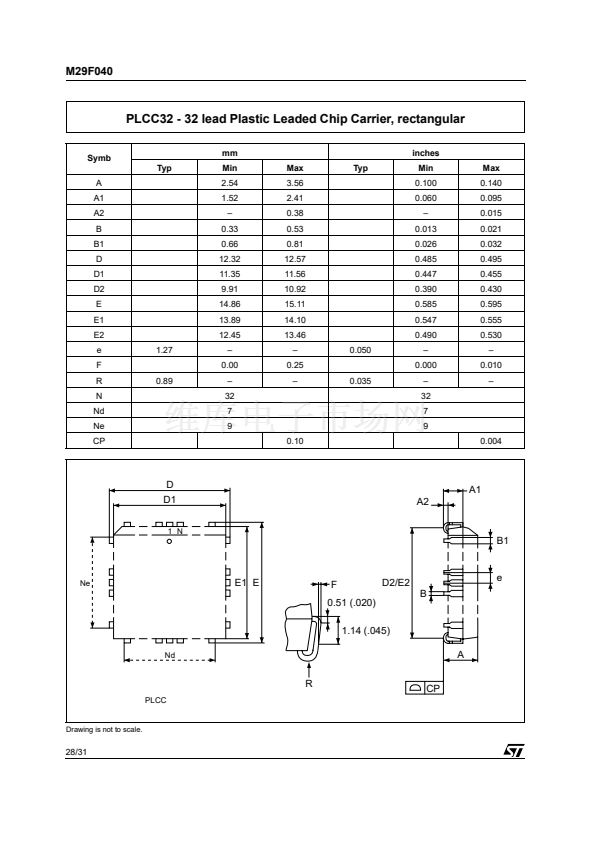

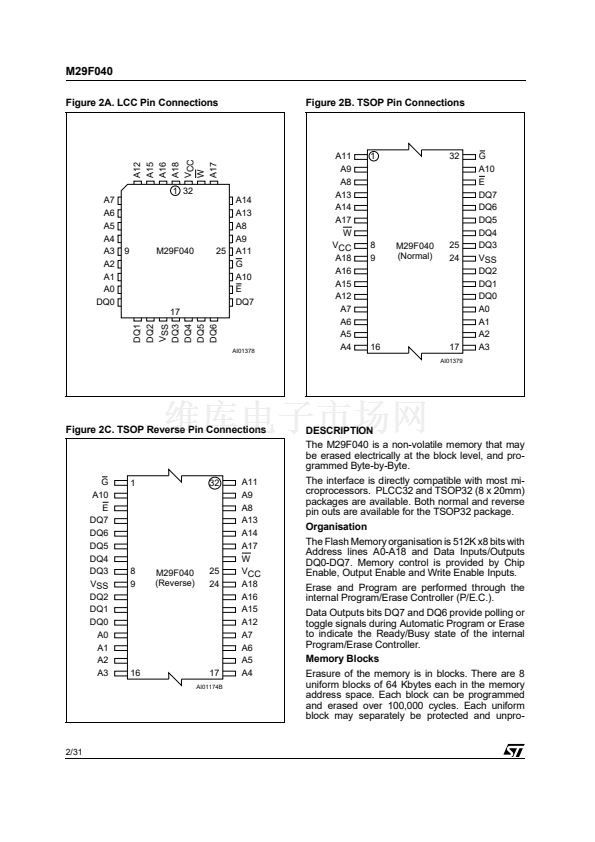

PLCC32 (K)

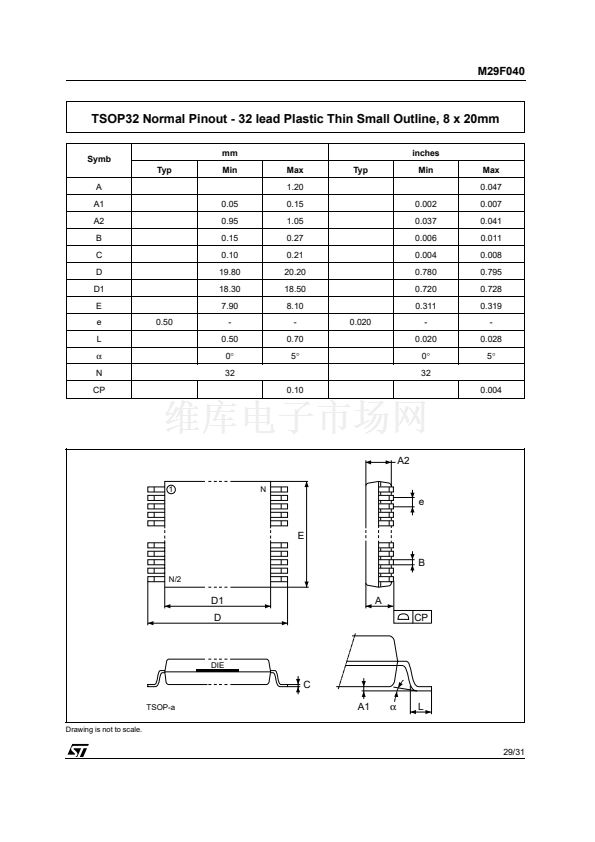

TSOP32 (N)
8 x 20 mm
Figure 1. Logic Diagram
VCC
19
A0-A18
8
DQ0-DQ7
W
E
G
M29F040
VSS
AI01372
November 1999
This is information on a product still in production but not recommended for new designs.
1/31
