M27C320-80M1 Datasheet

  • M27C320-80M1

  • 32 Mbit 4Mb x8 or 2Mb x16 OTP EPROM

  • 15頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

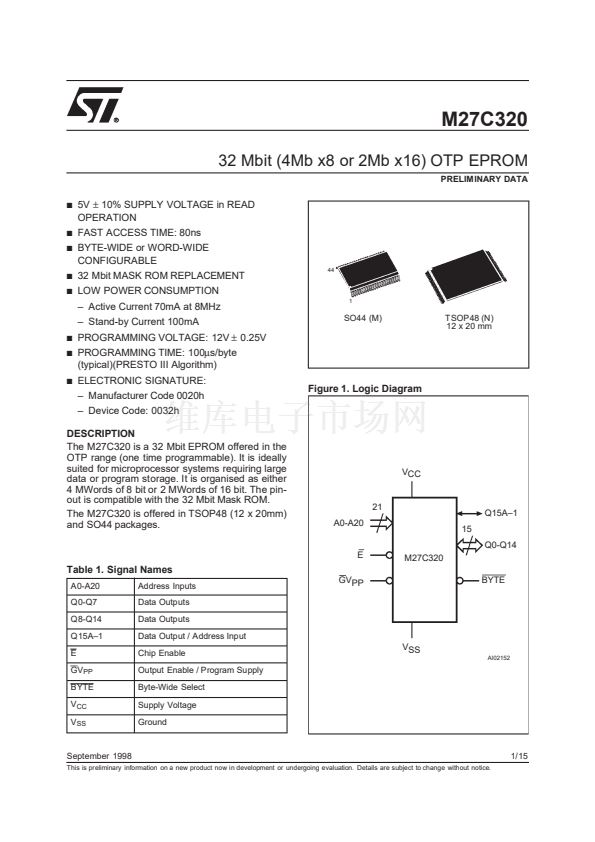

M27C320
32 Mbit (4Mb x8 or 2Mb x16) OTP EPROM
PRELIMINARY DATA
s
5V
鹵
10% SUPPLY VOLTAGE in READ
OPERATION
FAST ACCESS TIME: 80ns
BYTE-WIDE or WORD-WIDE
CONFIGURABLE
32 Mbit MASK ROM REPLACEMENT
LOW POWER CONSUMPTION
鈥?Active Current 70mA at 8MHz
鈥?Stand-by Current 100mA
1
44
s
s
s
s
SO44 (M)
s
s
PROGRAMMING VOLTAGE: 12V
鹵
0.25V
PROGRAMMING TIME: 100碌s/byte
(typical)(PRESTO III Algorithm)
ELECTRONIC SIGNATURE:
鈥?Manufacturer Code 0020h
鈥?Device Code: 0032h
Figure 1. Logic Diagram
TSOP48 (N)
12 x 20 mm
s
DESCRIPTION
The M27C320 is a 32 Mbit EPROM offered in the
OTP range (one time programmable). It is ideally
suited for microprocessor systems requiring large
data or program storage. It is organised as either
4 MWords of 8 bit or 2 MWords of 16 bit. The pin-
out is compatible with the 32 Mbit Mask ROM.
The M27C320 is offered in TSOP48 (12 x 20mm)
and SO44 packages.
VCC
21
A0-A20
15
Q15A鈥?
Q0-Q14
E
M27C320
BYTE
Table 1. Signal Names
A0-A20
Q0-Q7
Q8-Q14
Q15A鈥?
E
GV
PP
BYTE
V
CC
V
SS
Address Inputs
Data Outputs
Data Outputs
Data Output / Address Input
Chip Enable
Output Enable / Program Supply
Byte-Wide Select
Supply Voltage
Ground
GVPP
VSS
AI02152
September 1998
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
1/15
