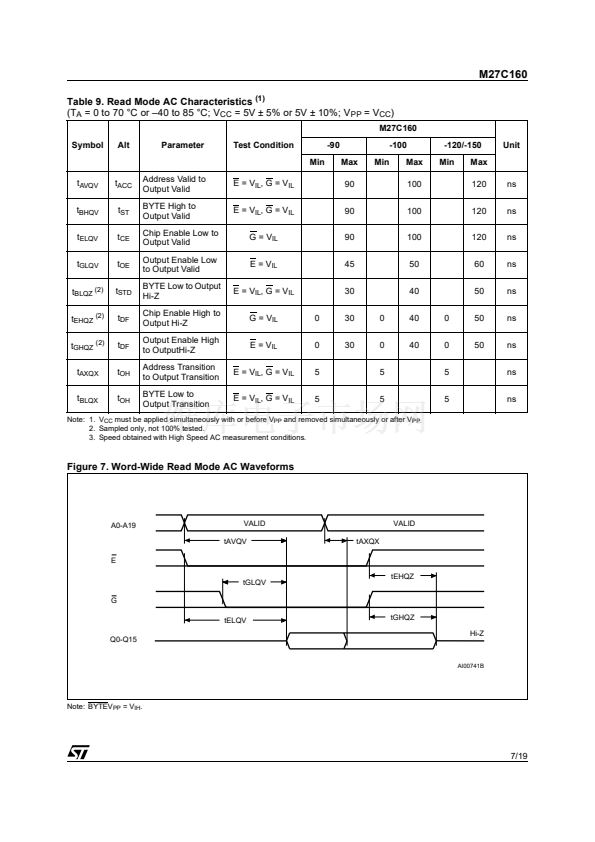

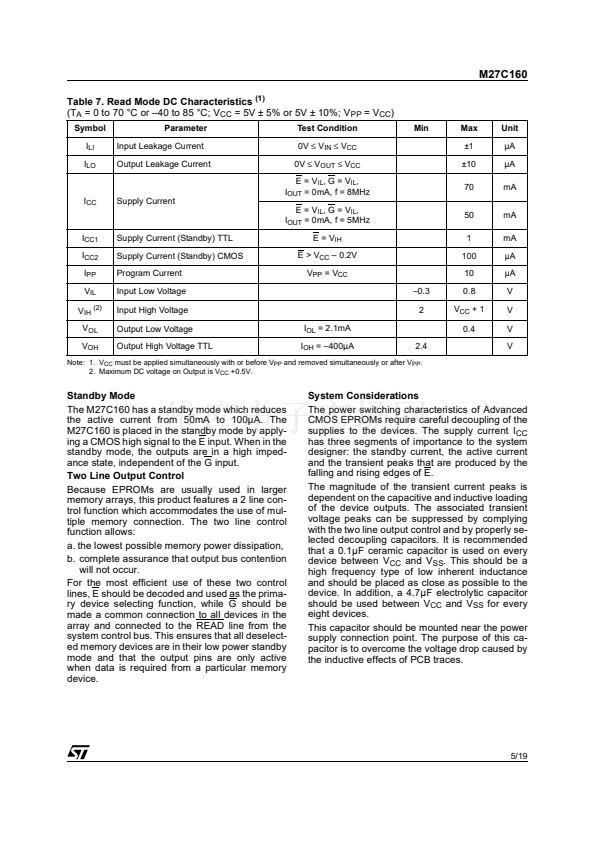

M27C160

16 Mbit (2Mb x 8 or 1Mb x 16) UV EPROM and OTP EPROM

s

5V 鹵 10% SUPPLY VOLTAGE in READ

OPERATION

ACCESS TIME: 50ns

BYTE-WIDE or WORD-WIDE

CONFIGURABLE

16 Mbit MASK ROM REPLACEMENT

LOW POWER CONSUMPTION

鈥?Active Current 70mA at 8MHz

鈥?Standby Current 100碌A(chǔ)

42

42

s

s

s

s

1

1

FDIP42W (F)

PDIP42 (B)

s

s

s

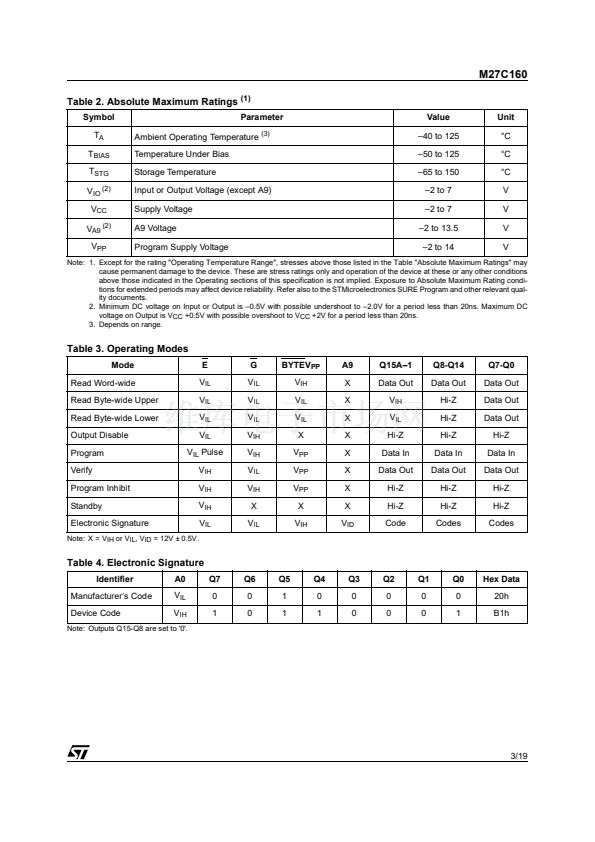

PROGRAMMING VOLTAGE: 12.5V 鹵 0.25V

PROGRAMMING TIME: 50碌s/word

ELECTRONIC SIGNATURE

鈥?Manufacturer Code: 20h

鈥?Device Code: B1h

SDIP42 (S)

42

1

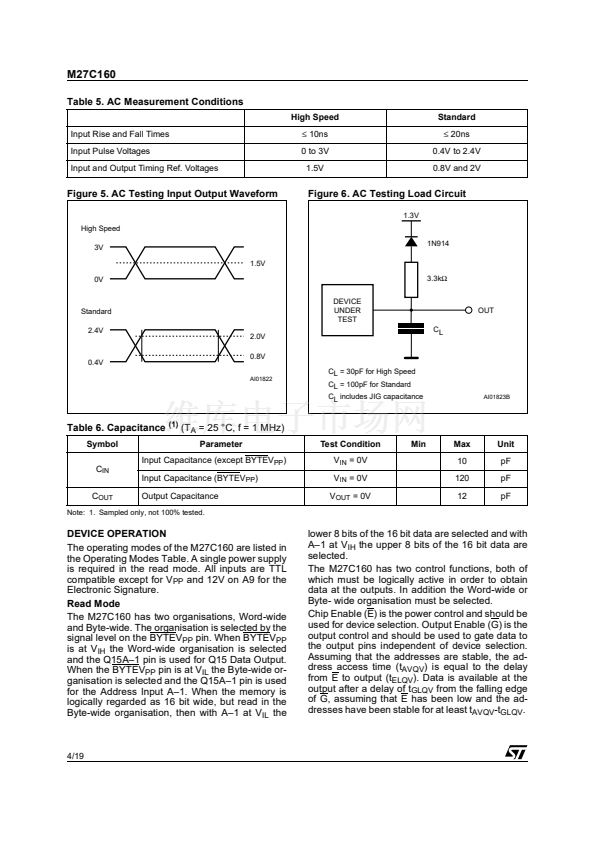

DESCRIPTION

The M27C160 is a 16 Mbit EPROM offered in the

two ranges UV (ultra violet erase) and OTP (one

time programmable). It is ideally suited for micro-

processor systems requiring large data or program

storage and is organised as either 2 Mbit words of

8 bit or 1 Mbit words of 16 bit. The pin-out is com-

patible with a 16 Mbit Mask ROM.

The FDIP42W (window ceramic frit-seal package)

has a transparent lid which allows the user to ex-

pose the chip to ultraviolet light to erase the bit pat-

tern. A new pattern can then be written rapidly to

the device by following the programming proce-

dure.

For applications where the content is programmed

only one time and erasure is not required, the

M27C160 is offered in PDIP42, SDIP42, PLCC44

and SO44 packages.

44

1

PLCC44 (K)

SO44 (M)

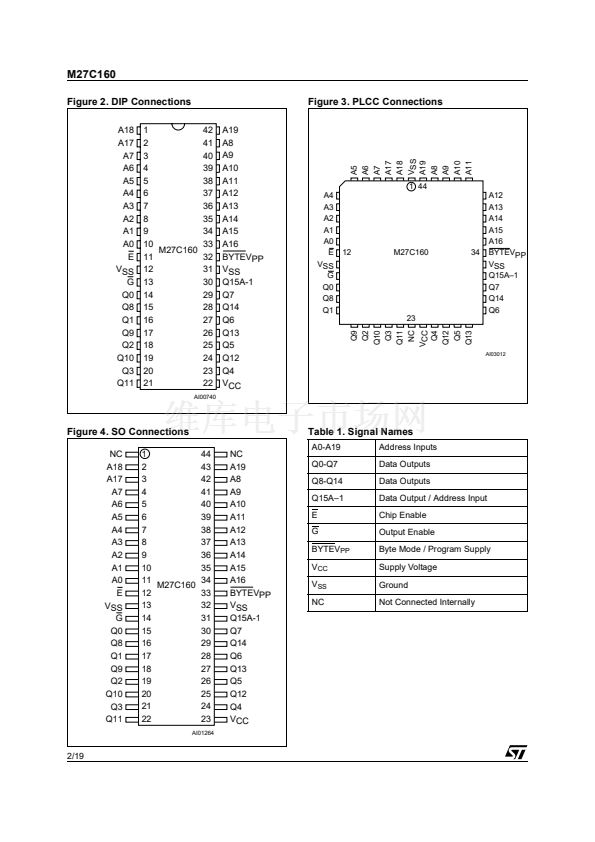

Figure 1. Logic Diagram

VCC

20

A0-A19

15

Q15A鈥?

Q0-Q14

E

G

BYTEVPP

M27C160

VSS

AI00739B

January 2002

1/19
