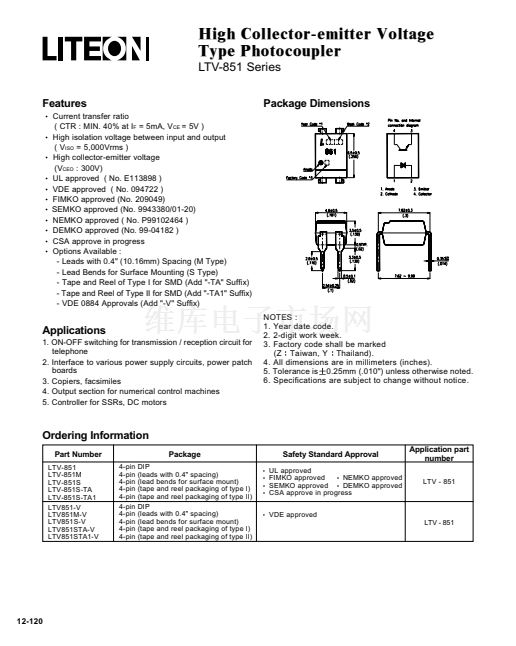

High Collector-emitter Voltage
Type Photocoupler
LTV-851 Series
Features
Current transfer ratio
( CTR : MIN. 40% at I
F
= 5mA, V
CE
= 5V )
High isolation voltage between input and output
( V
ISO
= 5,000Vrms )
High collector-emitter voltage
(V
CEO
: 300V)
UL approved ( No. E113898 )
VDE approved ( No. 094722 )
FIMKO approved (No. 209049)
SEMKO approved (No. 9943380/01-20)
NEMKO approved ( No. P99102464 )
DEMKO approved (No. 99-04182 )
CSA approve in progress
Options Available :
- Leads with 0.4" (10.16mm) Spacing (M Type)
- Lead Bends for Surface Mounting (S Type)
- Tape and Reel of Type I for SMD (Add "-TA" Suffix)
- Tape and Reel of Type II for SMD (Add "-TA1" Suffix)
- VDE 0884 Approvals (Add "-V" Suffix)
Package Dimensions
Applications
1. ON-OFF switching for transmission / reception circuit for
telephone
2. Interface to various power supply circuits, power patch
boards
3. Copiers, facsimiles
4. Output section for numerical control machines
5. Controller for SSRs, DC motors
NOTES :
1. Year date code.
2. 2-digit work week.
3. Factory code shall be marked
(Z Taiwan, Y Thailand).
4. All dimensions are in millimeters (inches).
5. Tolerance is 0.25mm (.010") unless otherwise noted.
6. Specifications are subject to change without notice.
Ordering Information
Part Number
LTV-851
LTV-851M
LTV-851S
LTV-851S-TA
LTV-851S-TA1
LTV851-V
LTV851M-V
LTV851S-V
LTV851STA-V
LTV851STA1-V
4-pin
4-pin
4-pin
4-pin
4-pin
4-pin
4-pin
4-pin
4-pin
4-pin
Package
DIP
(leads with 0.4" spacing)
(lead bends for surface mount)
(tape and reel packaging of type
(tape and reel packaging of type
DIP
(leads with 0.4" spacing)
(lead bends for surface mount)
(tape and reel packaging of type
(tape and reel packaging of type
Safety Standard Approval
UL approved
FIMKO approved
NEMKO approved
SEMKO approved
DEMKO approved
CSA approve in progress
VDE approved
Application part
number
LTV - 851
I)
II)
LTV - 851
I)
II)
12-120
1
2
3

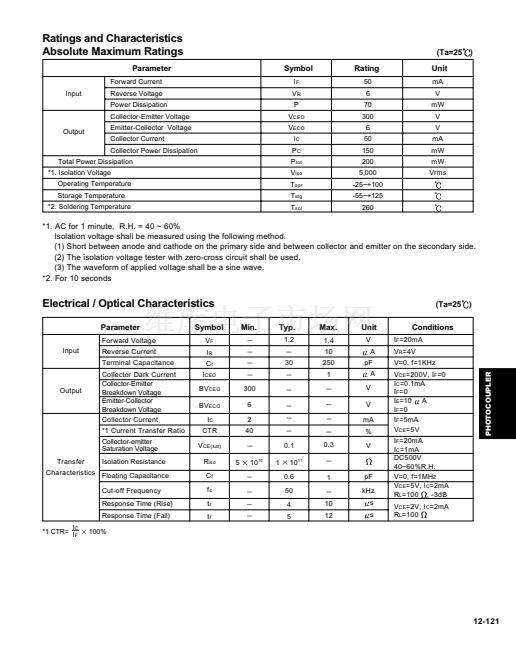

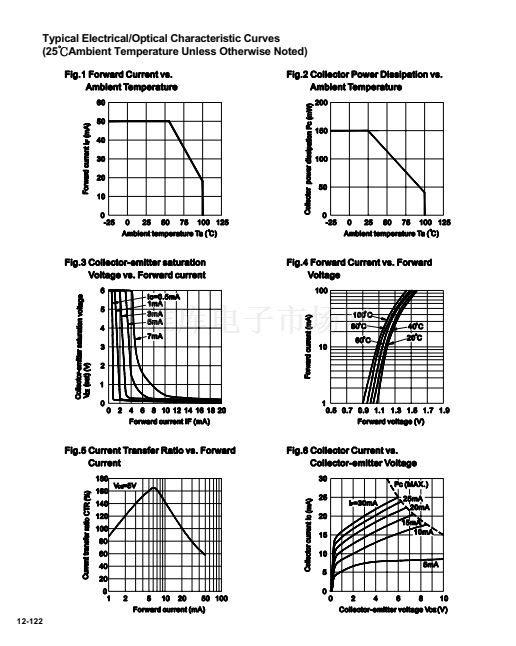

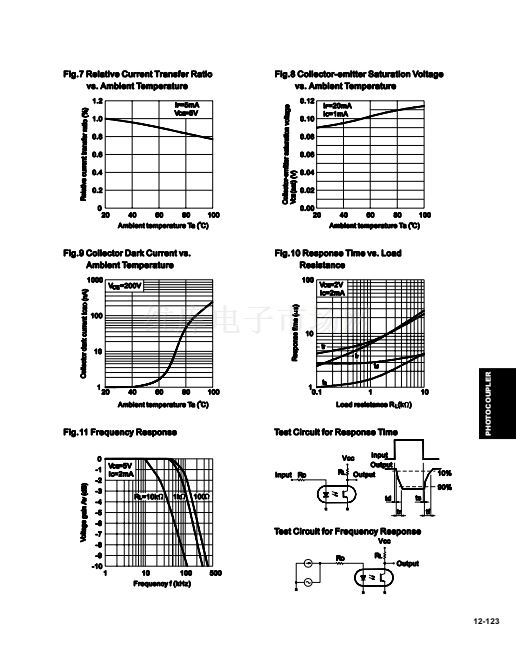

4
