High AC Input Current, AC Input
Type Photocoupler
LTV-733H Series
Features
Directly connectable to TTL
AC input response
High input current( I
F
: MAX. 150mA )
High input-output isolation voltage
( Viso = 5,000Vrms )
Low collector dark current
( I
CEO
: MAX. 10
-7
A at V
CE
= 20V )
Current transfer ratio
( CTR : MIN. 20% at I
F
=
100mA, V
CE
= 2V )
UL approved ( No. E113898 )
CSA approved ( No. CA91533-1 )
FIMKO approved ( No. 203512 )
NEMKO approved ( No. P98102534 )
DEMKO approved ( No. 308184 )
SEMKO approved ( No. 9844179/01-02 )
VDE approved ( No. 094722 )
Options Available :
- Leads with 0.4" (10.16mm) Spacing (M Type)
- Lead Bends for Surface Mounting (S Type)
- Tape and Reel of Type I for SMD (Add "-TA" Suffix)
- Tape and Reel of Type II for SMD (Add "-TA1" Suffix)
- VDE 0884 Approvals (Add "-V" Suffix)
Package Dimensions
Applications
1. Telephone sets
2. System appliances, measuring instruments
3. Signal transmission between circuits of different poten-
tials and impedances
Ordering Information
Part Number
LTV-733H
LTV-733HM
LTV-733HS
LTV-733HS-TA
LTV-733HS-TA1
LTV733H-V
LTV733HM-V
LTV733HS-V
LTV733HSTA-V
LTV733HSTA1-V
6-pin
6-pin
6-pin
6-pin
6-pin
6-pin
6-pin
6-pin
6-pin
6-pin
Package
DIP
(leads with 0.4" spacing)
(lead bends for surface mount)
(tape and reel packaging of type
(tape and reel packaging of type
DIP
(leads with 0.4" spacing)
(lead bends for surface mount)
(tape and reel packaging of type
(tape and reel packaging of type
Safety Standard Approval
UL approved
CSA approved
FIMKO approved
NEMKO approved
DEMKO approved
SEMKO approved
Application part
number
LTV - 733H
I)
II)
VDE approved
LTV - 733H
I)
II)
12-81
PHOTOCOUPLER
NOTES :
1. Year date code.
2. 2-digit work week.
3. Factory code shall be marked.
(Z Taiwan, Y Thailand).
4. All dimensions are in millimeters (inches).
5. Tolerance is 0.25mm (.010") unless otherwise noted.
6. Specifications are subject to change without notice.

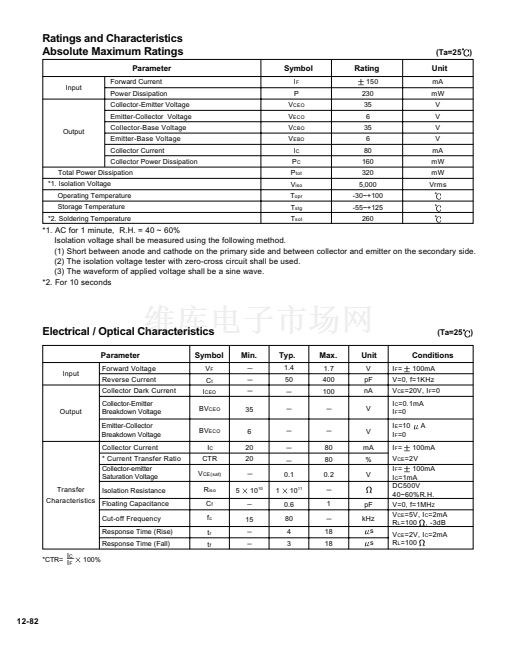

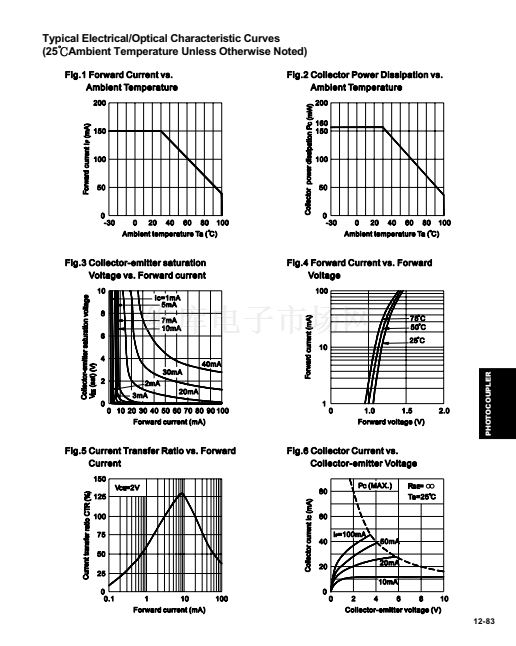

1
2
3
4
