LT1460GIZ-5 Datasheet

  • LT1460GIZ-5

  • Micropower Precision Series Reference

  • 292.81KB

  • 12頁

  • LINER

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

LT1460-5
Micropower Precision
Series Reference
FEATURES
s
s
s
s
s
s
s
s
s
s
DESCRIPTIO
High Accuracy: 0.075% Max
Low Drift: 10ppm/
擄
C Max
Industrial Temperature Range SO-8 Package
Temperature Coefficient Guaranteed to 125
擄
C
Low Supply Current: 175碌A(chǔ) Max
Minimum Output Current: 20mA
No Output Capacitor Required
Reverse Battery Protection
Minimum Input/Output Differential: 0.9V
Available in Small MSOP Package
APPLICATIO S
s
s
s
s
s
Handheld Instruments
Precision Regulators
A/D and D/A Converters
Power Supplies
Hard Disk Drives
The LT
廬
1460-5 is a micropower bandgap reference that
combines very high accuracy and low drift with low power
dissipation and small package size. This series reference
uses curvature compensation to obtain a low temperature
coefficient and trimmed precision thin-film resistors to
achieve high output accuracy. The reference will supply up to
20mA, making it ideal for precision regulator applications, yet
it is almost totally immune to input voltage variations.
This series reference provides supply current and power
dissipation advantages over shunt references that must idle
the entire load current to operate. Additionally, the LT1460-5
is stable with capacitive loads and does not require an output
capacitor. This feature is important in critical applications
where PC board space is a premium or fast settling is
demanded. Reverse battery protection keeps the reference
from conducting current and being damaged.
The LT1460-5 is available in the 8-lead MSOP, SO, PDIP
and the 3-lead TO-92 packages. It is also available in the
SOT-23 package; see separate data sheet LT1460S3-5
(SOT-23).
, LTC and LT are registered trademarks of Linear Technology Corporation.
TYPICAL APPLICATIO
Basic Connection
LT1460-5
IN
C1
0.1碌F
GND
1460-5 TA01
Typical Distribution of Output Voltage
S8 Package
20
18
1400 PARTS
FROM 2 RUNS
5.9V
TO 20V
OUT
5V
16
14
UNITS (%)
12
10
8
6
4
2
0
鈥?.10
鈥?.06 鈥?.02 0 0.02
0.06
OUTPUT VOLTAGE ERROR (%)
0.10
U
1460-5 TA02
U
U

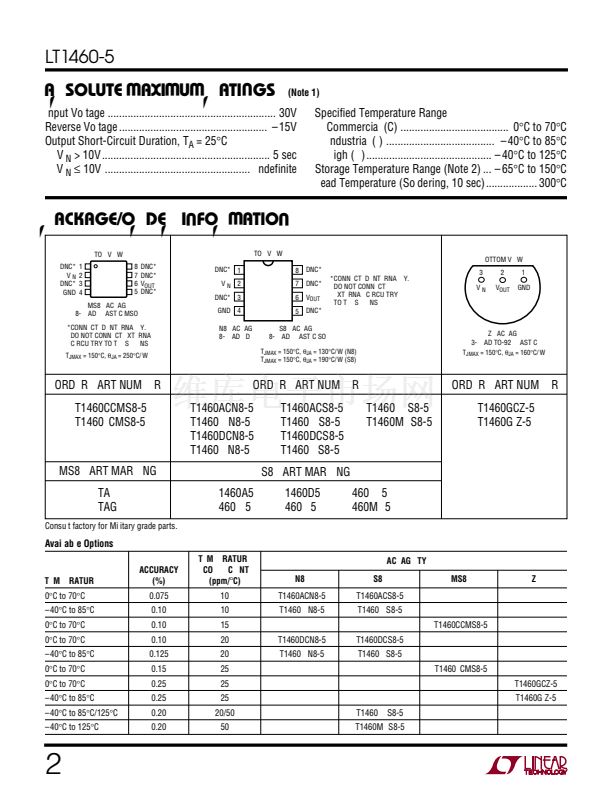

1

LT1460GIZ-5 產品屬性

  • LT1460

  • Voltage Reference Basics

  • 100

  • 集成電路 (IC)

  • PMIC - 電壓基準

  • -

  • 串聯，精度

  • 5V

  • ±0.25%

  • 25ppm/°C

  • 5.9 V ~ 20 V

  • 1

  • -

  • 240µA

  • 40mA

  • -40°C ~ 85°C

  • 通孔

  • TO-226-3、TO-92-3（TO-226AA）成形引線

  • TO-92-3

  • 散裝
