LMV792MM Datasheet

  • LMV792MM

  • 17 MHz, Low Noise, CMOS Input, 1.8V Operational Amplifiers

  • 21頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

LMV791/LMV792 17 MHz, Low Noise, CMOS Input, 1.8V Operational Amplifiers
November 2005
LMV791/LMV792
17 MHz, Low Noise, CMOS Input, 1.8V Operational
Amplifiers
General Description
The LMV791 (Single) and the LMV792 (Dual) low noise,
CMOS input operational amplifiers offer a low input voltage
while consuming only 1.15 mA
noise density of 5.8 nV/
(LMV791) of quiescent current. The LMV791 and LMV792
are unity gain stable op amps and have gain bandwidth of 17
MHz. The LMV791/ LMV792 have a supply voltage range of
1.8V to 5.5V and can operate from a single supply. The
LMV791/LMV792 each feature a rail-to-rail output stage ca-
pable of driving a 600鈩?load and sourcing as much as 60 mA
of current.
The LMV791 family provides optimal performance in low
voltage and low noise systems. A CMOS input stage, with
typical input bias currents in the range of a few femtoAm-
peres, and an input common mode voltage range which
includes ground make the LMV791 and the LMV792 ideal for
low power sensor applications. The LMV791 family has a
built-in enable feature which can be used to optimize power
dissipation in low power applications.
The LMV791/LMV792 are manufactured using National鈥檚
advanced VIP50 process and are offered in a 6-pin TSOT23
and a 10-pin MSOP package respectively.
Features
(Typical 5V supply, unless otherwise noted)
n
Input referred voltage noise
5.8 nV/
n
Input bias current
100 fA
n
Unity gain bandwidth
17 MHz
n
Supply current per channel
鈥?LMV791
1.15 mA
鈥?LMV792
1.30 mA
n
Rail-to-rail output swing
鈥?/div>
@
10 k鈩?load
25 mV from rail
35 mV from rail
鈥?/div>
@
2 k鈩?load
n
Guaranteed 2.5V and 5.0V performance
n
Total harmonic distortion
0.01%
@
1 kHz, 600鈩?/div>
n
Temperature range
鈭?0藲C to 125藲C
Applications
n
n
n
n
n
Photodiode amplifiers
Active filters and buffers
Low noise signal processing
Medical Instrumentation
Sensor interface applications
Typical Application
20116869
20116839
Photodiode Transimpedance Amplifier
Input Referred Voltage Noise vs. Frequency
漏 2005 National Semiconductor Corporation
DS201168
www.national.com

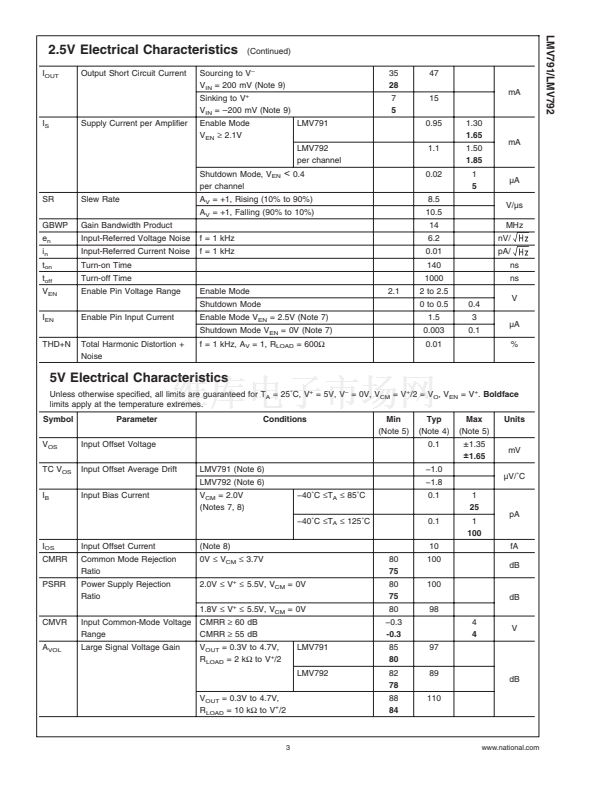

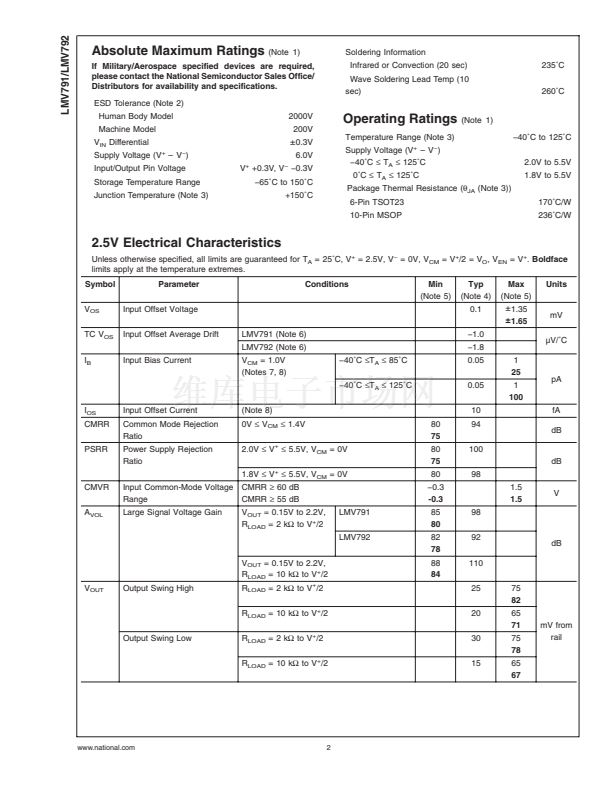

LMV792MM 產品屬性

  • National Semiconductor (TI)

  • 2

  • 80 dB

  • 1.35 mV at 5 V

  • 3 V, 5 V

  • SMD/SMT

  • MSOP

  • 11.5 V/us at 5 V

  • Yes

  • + 125 C

  • Reel

  • - 40 C

  • 1000

  • 1.7 mA at 5 V

  • 5.5 V

  • 1.8 V

  • CMOS

  • 110 dB
