LMH6624/LMH6626 Single/Dual Ultra Low Noise Wideband Operational Amplifier
May 2003
LMH6624/LMH6626
Single/Dual Ultra Low Noise Wideband Operational
Amplifier
General Description
The LMH6624/LMH6626 offer wide bandwidth (1.5GHz for
single, 1.3GHz for dual) with very low input noise (0.92nV/
, 2.3pA/
) and ultra low dc errors (100碌V V
OS
,
鹵
0.1碌V/藲C drift) providing very precise operational amplifiers
with wide dynamic range. This enables the user to achieve
closed-loop gains of greater than 10, in both inverting and
non-inverting configurations.
The LMH6624 (single) and LMH6626鈥檚 (dual) traditional volt-
age feedback topology provide the following benefits: bal-
anced inputs, low offset voltage and offset current, very low
offset drift, 81dB open loop gain, 95dB common mode rejec-
tion ratio, and 88dB power supply rejection ratio.
The LMH6624/LMH6626 operate from
鹵
2.5V to
鹵
6V in
dual supply mode and from +5V to +12V in single supply
configuration.
LMH6624 is offered in SOT23-5 and SOIC-8 packages.
The LMH6626 is offered in SOIC-8 and MSOP-8 packages.
Features
V
S
=
鹵
6V, T
A
= 25藲C, A
V
= 20, (Typical values unless
specified)
n
Gain bandwidth (LMH6624)
1.5GHz
n
Input voltage noise
0.92nV/
n
Input offset voltage (limit over temp)
700uV
n
Slew rate
350V/碌s
n
Slew rate (A
V
= 10)
400V/碌s
n
HD2
@
f = 10MHz, R
L
= 100鈩?/div>
鈭?3dBc
@
f = 10MHz, R
L
= 100鈩?/div>
n
HD3
鈭?0dBc
鹵
2.5V to
鹵
6V
n
Supply voltage range (dual supply)
n
Supply voltage range (single supply)
+5V to +12V
n
Improved replacement for the CLC425
(LMH6624)
n
Stable for closed loop |A
V
|
鈮?/div>
10
Applications
n
n
n
n
n
n
n
Instrumentation sense amplifiers
Ultrasound pre-amps
Magnetic tape & disk pre-amps
Wide band active filters
Professional Audio Systems
Opto-electronics
Medical diagnostic systems

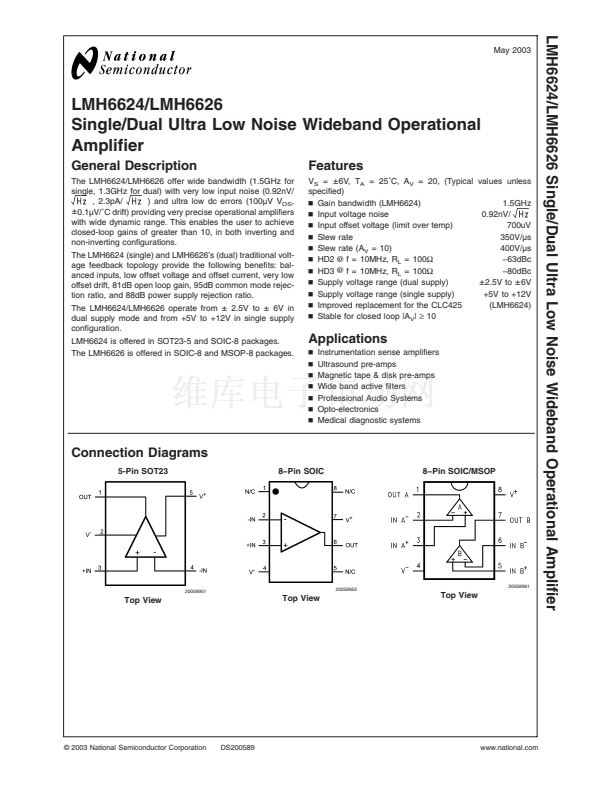

Connection Diagrams
5-Pin SOT23
8鈭扨in SOIC
8鈭扨in SOIC/MSOP
20058951
20058952
20058961
Top View
Top View
Top View
漏 2003 National Semiconductor Corporation
DS200589
www.national.com
