LM7171AMWFQMLV Datasheet

  • LM7171AMWFQMLV

  • OP-AMP|SINGLE|BIPOLAR|SOP|10PIN|CERAMIC

  • 23頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MICROCIRCUIT DATA SHEET
MNLM7171AM-X-RH REV 0C0
Original Creation Date: 03/16/00
Last Update Date: 08/02/01
Last Major Revision Date: 03/16/00
VERY HIGH SPEED, HIGH OUTPUT CURRENT, VOLTAGE FEEDBACK
AMPLIFIER: ALSO AVAILABLE GUARANTEED TO 300K RAD(Si)
TESTED TO MIL-STD-883, METHOD 1019.5
General Description
The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic
of a current feedback amplifier; yet it can be used in all traditional voltage feedback
amplifier configurations. The LM7171 is stable for gains as low as + 2 or -1. It provides
a very high slew rate at 2000V/uS (Minimum) and a wide gain-bandwidth product of 170MHz
(Minimum) while consuming only 6.5mA of supply current. It is ideal for video and high
speed signal processing applications such as HDSL and pulse amplifiers. With 100mA output
current, the LM7171 can be used for video distribution, as a transformer driver, or as a
laser diode driver.
Operation on +15V power supplies allows for large signal swings and provides greater
dynamic range and signal-to-noise ratio. The LM7171 is ideal for ADC/DAC systems. In
addition, the LM7171 is specified for +5V operation for portable applications.
The LM7171 is built on National's advanced VIP(TM)III(Vertically integrated PNP)
complementary bipolar process.
Industry Part Number
LM7171AM
NS Part Numbers
LM7171AMJ-QML
LM7171AMJ-QMLV
LM7171AMJFQML
LM7171AMJFQMLV
LM7171AMW-QML
LM7171AMW-QMLV
LM7171AMWFQMLV
LM7171AMWG-QML
LM7171AMWG-QMLV
LM7171AMWGFQML
LM7171AMWGFQMLV
Prime Die
LM7171
Controlling Document
See Features Section
Processing
MIL-STD-883, Method 5004
Subgrp Description
1
2
3
4
5
6
7
8A
8B
9
10
11
Static tests at
Static tests at
Static tests at
Dynamic tests at
Dynamic tests at
Dynamic tests at
Functional tests at
Functional tests at
Functional tests at
Switching tests at
Switching tests at
Switching tests at
Temp (
o
C)
+25
+125
-55
+25
+125
-55
+25
+125
-55
+25
+125
-55
Quality Conformance Inspection
MIL-STD-883, Method 5005
1

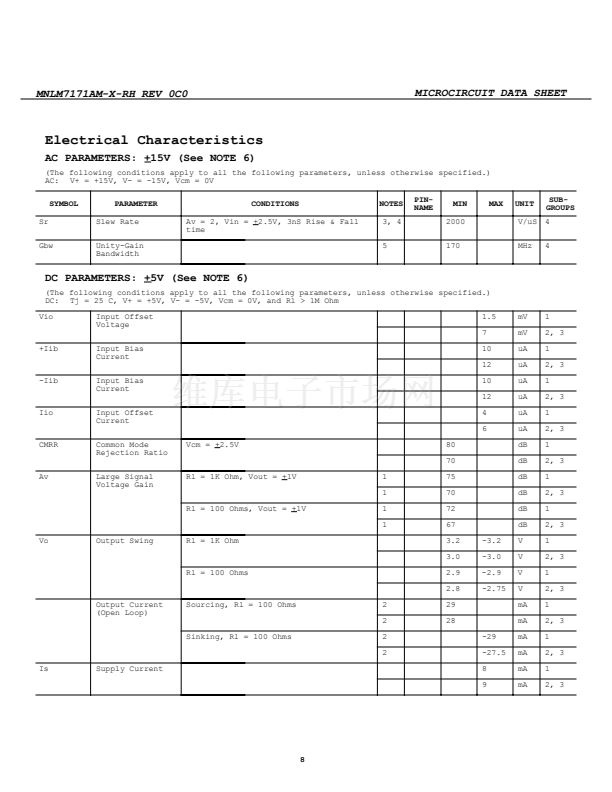

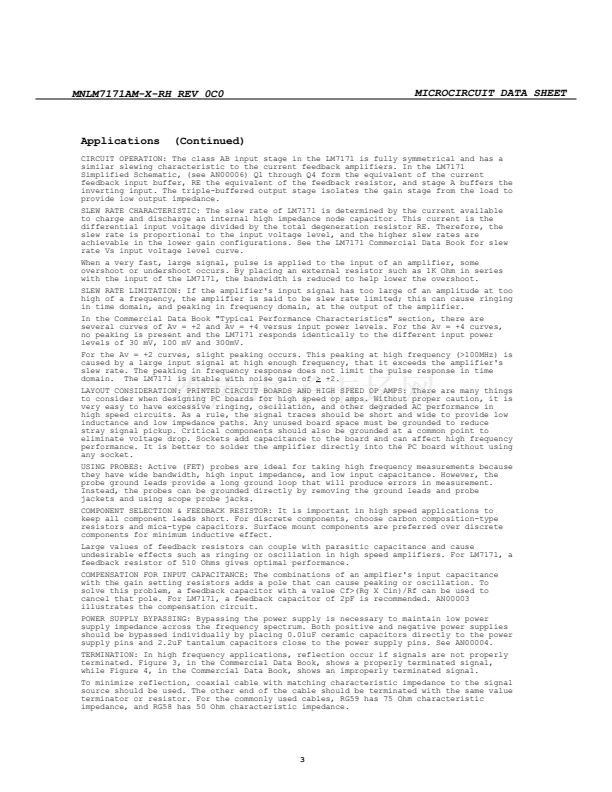

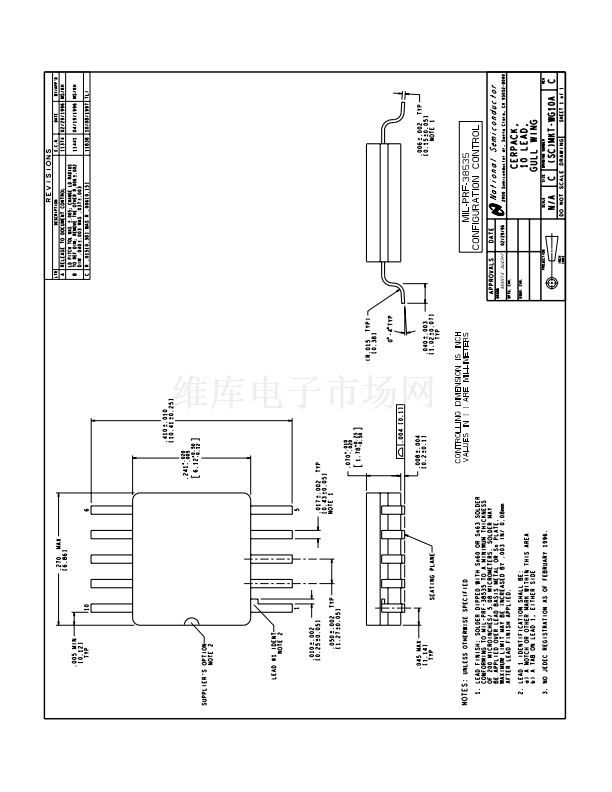

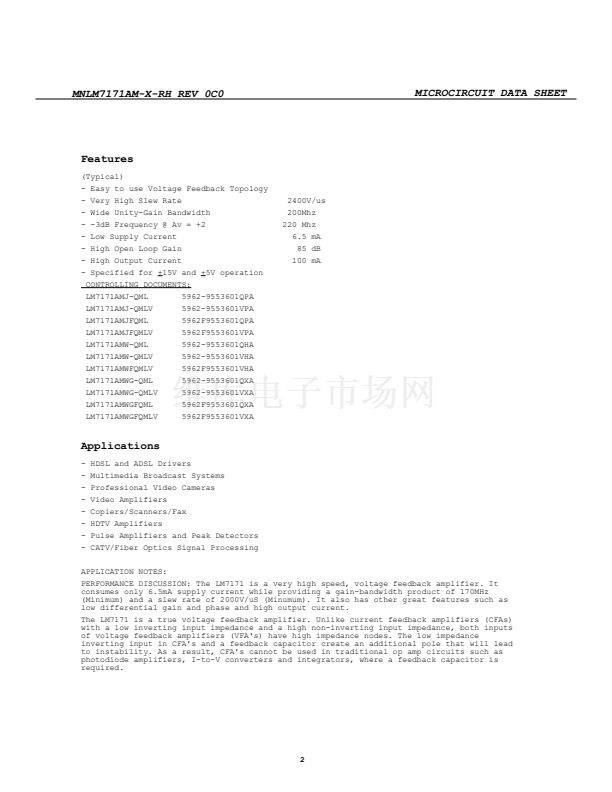

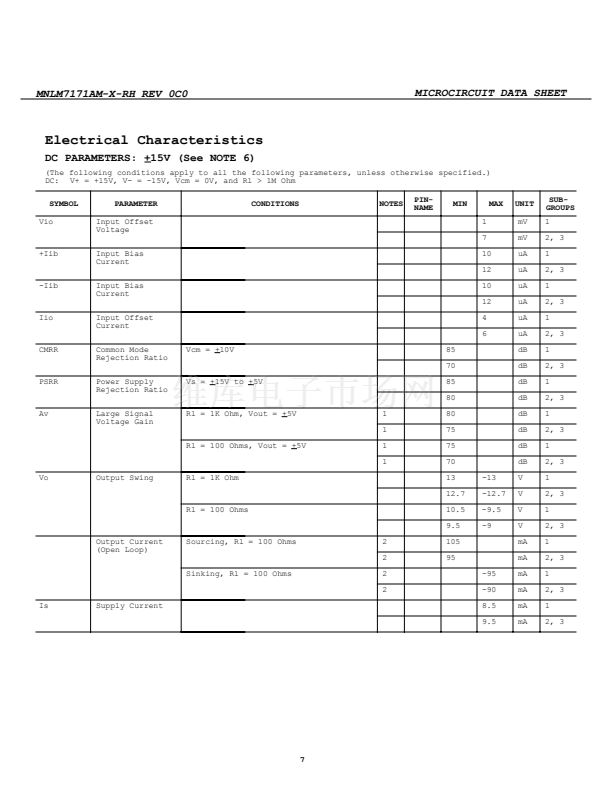

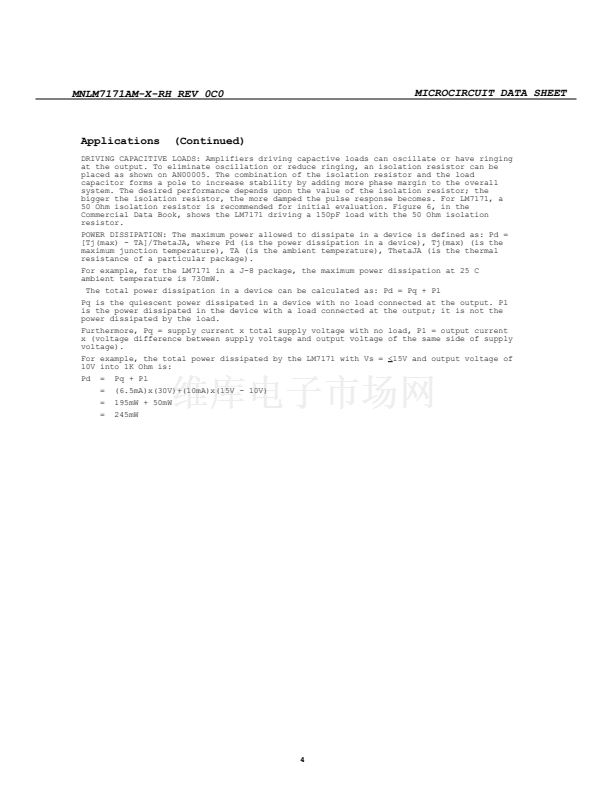

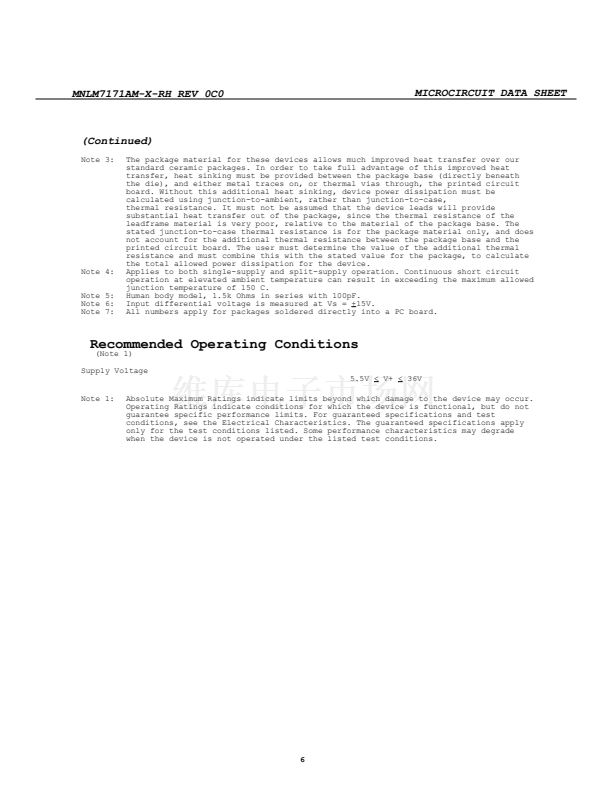

LM7171AMWFQMLV 產品屬性

  • National Semiconductor (TI)

  • 1

  • 80 dB

  • 1.5 mV at +/- 5 V

  • 9 V, 12 V, 15 V, 18 V, 24 V, 28 V

  • SMD/SMT

  • CPAK

  • 2000 V/us at +/- 15 V (Min)

  • No

  • + 125 C

  • Tube

  • - 55 C

  • 8 mA at +/- 5 V

  • 36 V

  • 5.5 V

  • BiCOM

  • 75 dB
