LM3146 High Voltage Transistor Array
February 1995
LM3146 High Voltage Transistor Array
General Description
The LM3146 consists of five high voltage general purpose
silicon NPN transistors on a common monolithic substrate
Two of the transistors are internally connected to form a
differentially-connected pair The transistors are well suited
to a wide variety of applications in low power system in the
dc through VHF range They may be used as discrete tran-
sistors in conventional circuits however in addition they
provide the very significant inherent integrated circuit ad-
vantages of close electrical and thermal matching The
LM3146 is supplied in a 14-lead molded dual-in-line pack-
age for applications requiring only a limited temperature
range
Features
Y
Y
Y
Y
Y
High voltage matched pairs of transistors V
BE
matched
g
5 mV input offset current 2
mA
max at I
C
e
1 mA
Five general purpose monolithic transistors
Operation from dc to 120 MHz
Wide operating current range
Low noise figure
3 2 dB typ at 1 kHz
Applications
Y
Y
Y
General use in all types of signal processing systems
operating anywhere in the frequency range from dc to
VHF
Custom designed differential amplifiers
Temperature compensated amplifiers
Connection Diagram
Dual-In-Line and Small Outline Packages
TL H 7959 鈥?1
Top View
Order Number LM3146M or LM3146N
See NS Package Number M14A or N14A
C
1995 National Semiconductor Corporation
TL H 7959

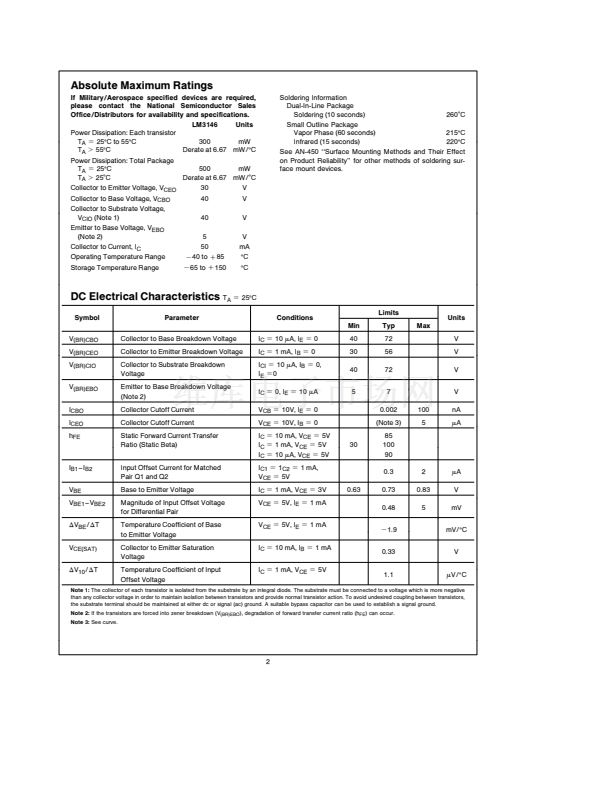

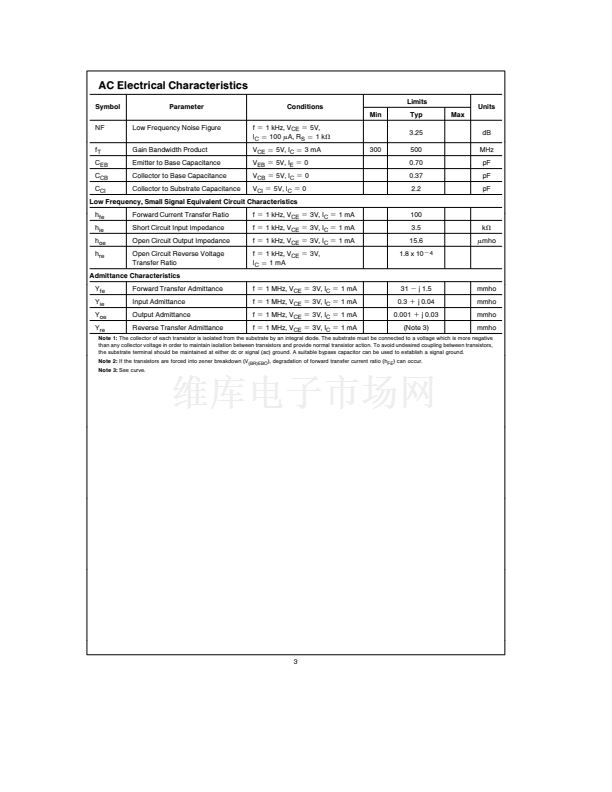

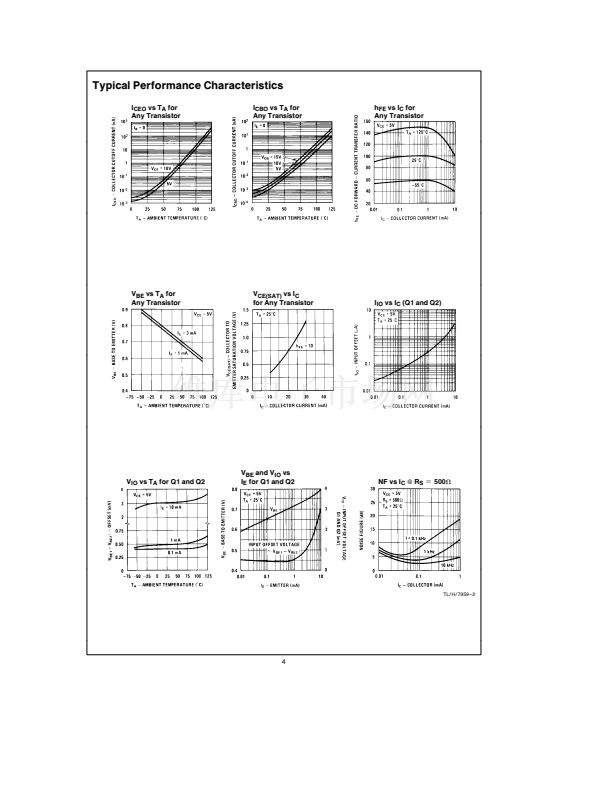

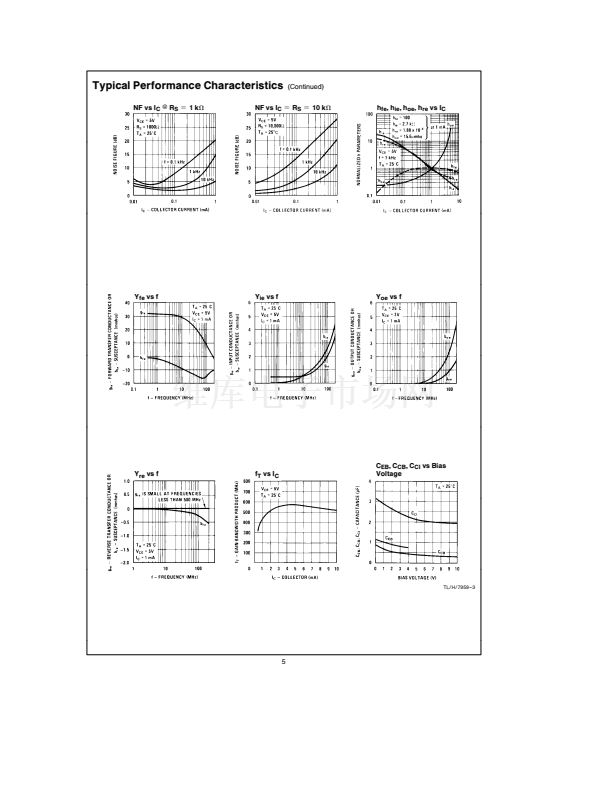

RRD-B30M115 Printed in U S A
