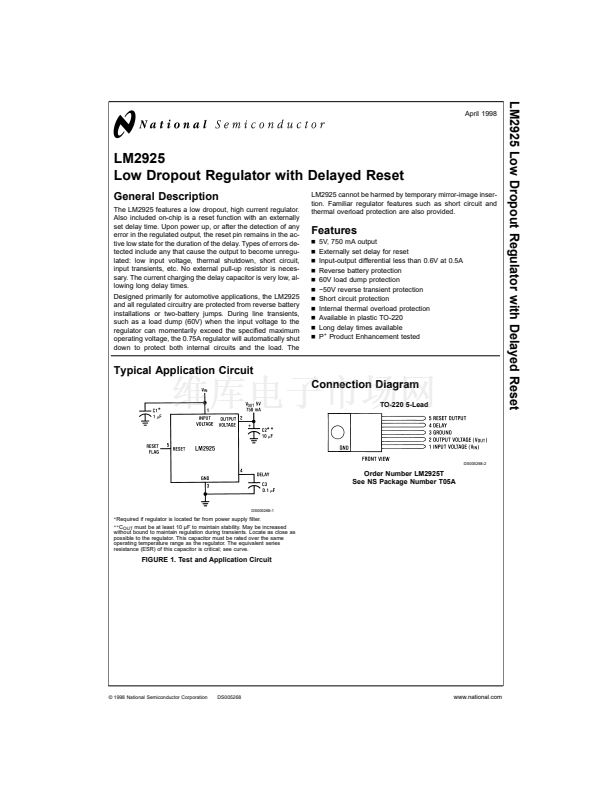

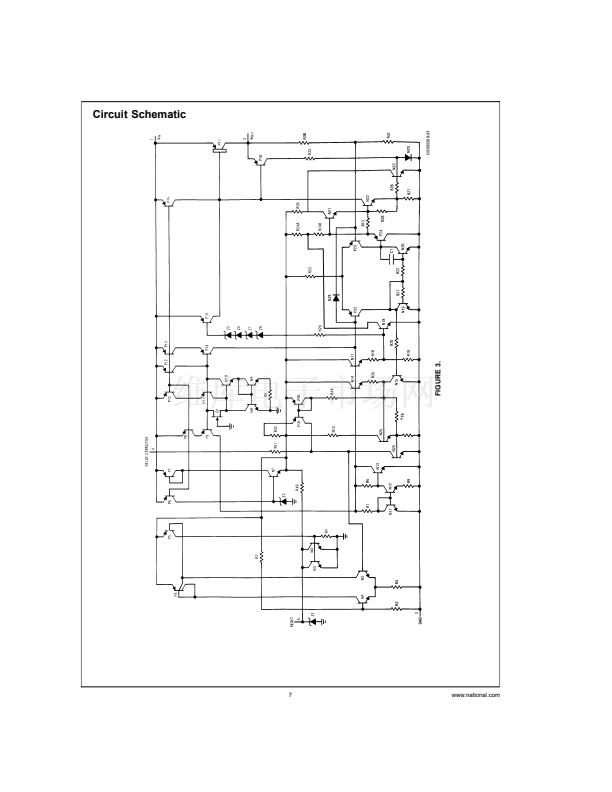

LM2925 Low Dropout Regulator with Delayed Reset
April 1998
LM2925
Low Dropout Regulator with Delayed Reset
General Description

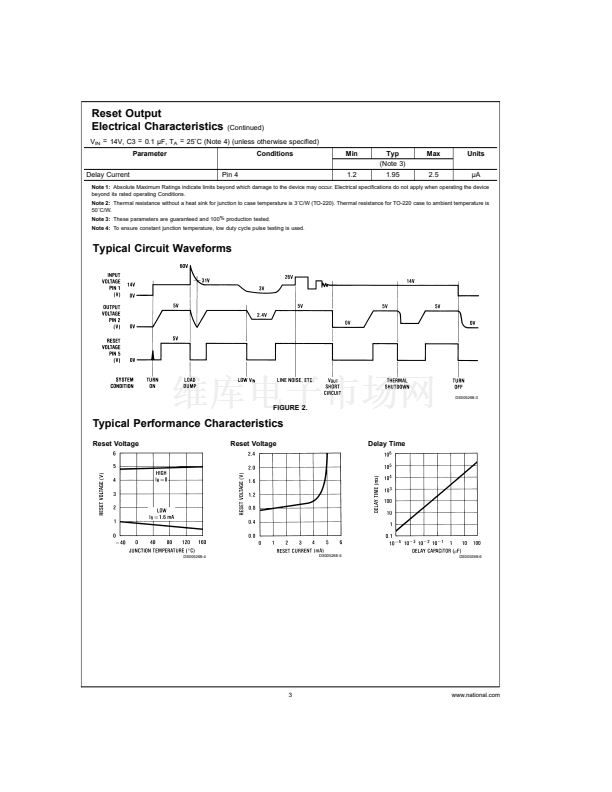

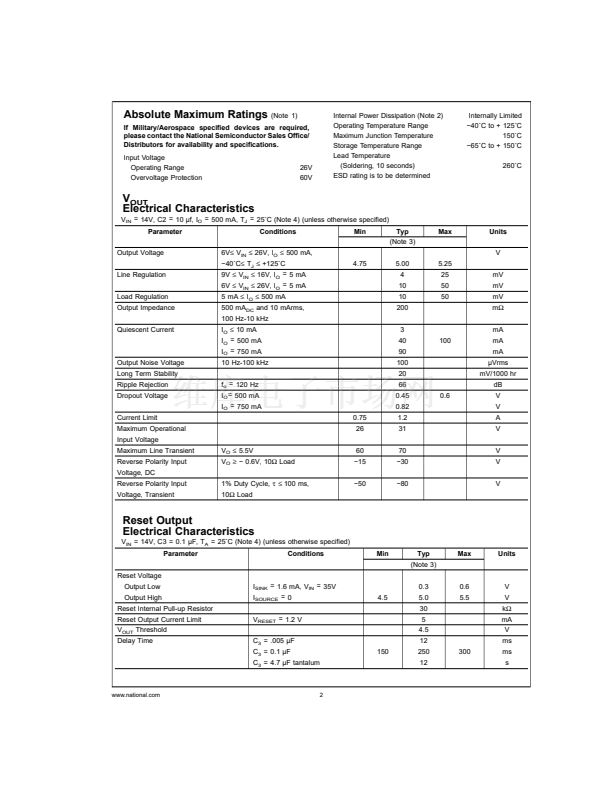

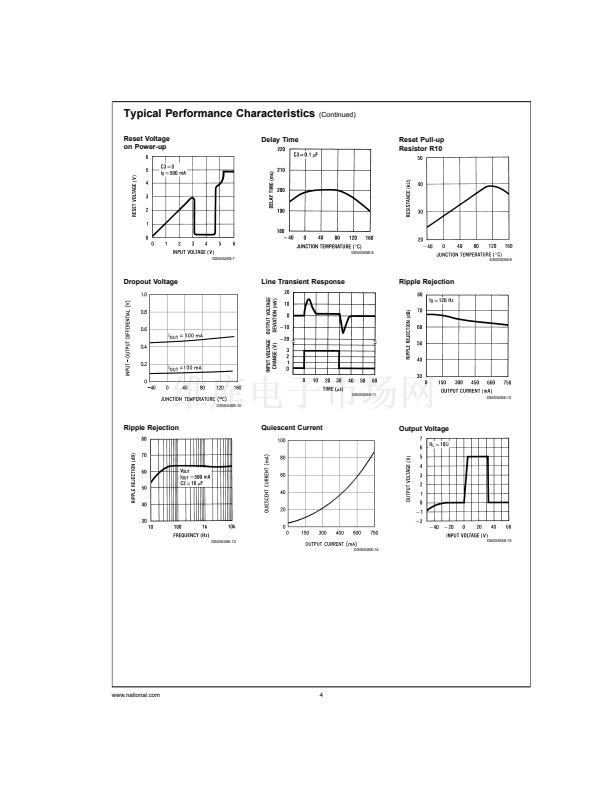

The LM2925 features a low dropout, high current regulator.
Also included on-chip is a reset function with an externally
set delay time. Upon power up, or after the detection of any
error in the regulated output, the reset pin remains in the ac-
tive low state for the duration of the delay. Types of errors de-
tected include any that cause the output to become unregu-
lated: low input voltage, thermal shutdown, short circuit,
input transients, etc. No external pull-up resistor is neces-
sary. The current charging the delay capacitor is very low, al-
lowing long delay times.
Designed primarily for automotive applications, the LM2925
and all regulated circuitry are protected from reverse battery
installations or two-battery jumps. During line transients,
such as a load dump (60V) when the input voltage to the
regulator can momentarily exceed the specified maximum
operating voltage, the 0.75A regulator will automatically shut
down to protect both internal circuits and the load. The
LM2925 cannot be harmed by temporary mirror-image inser-
tion. Familiar regulator features such as short circuit and
thermal overload protection are also provided.
Features
n
n
n
n
n
n
n
n
n
n
n
5V, 750 mA output
Externally set delay for reset
Input-output differential less than 0.6V at 0.5A
Reverse battery protection
60V load dump protection
鈭?0V reverse transient protection
Short circuit protection
Internal thermal overload protection
Available in plastic TO-220
Long delay times available
P
+
Product Enhancement tested
Typical Application Circuit
Connection Diagram

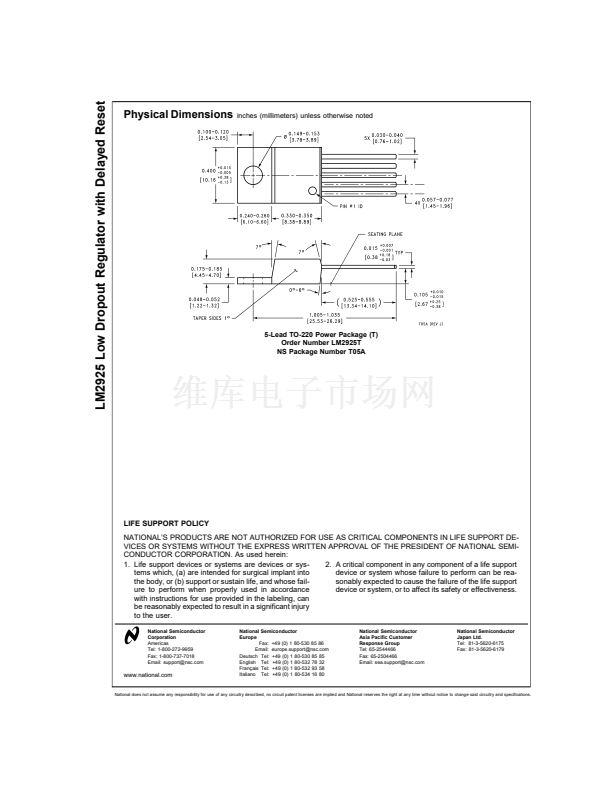

TO-220 5-Lead
DS005268-2
Order Number LM2925T
See NS Package Number T05A
DS005268-1

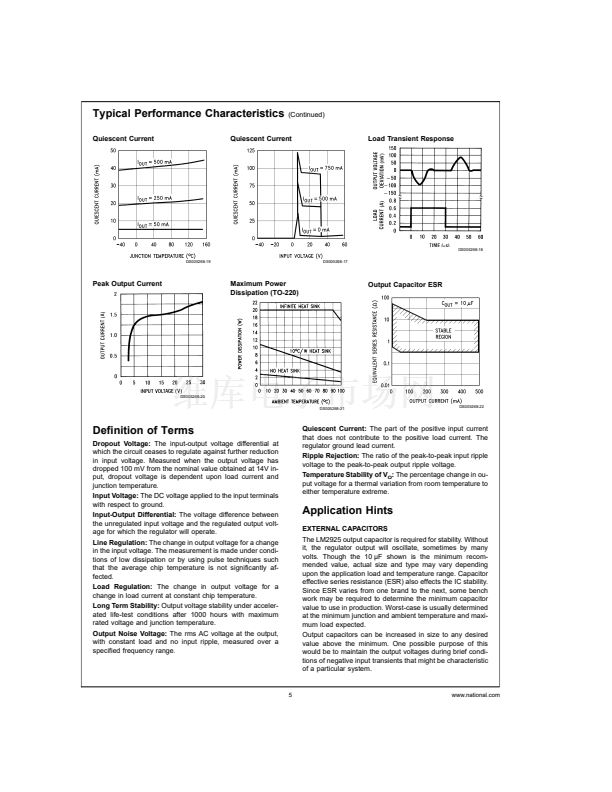

without bound to maintain regulation during transients. Locate as close as
possible to the regulator. This capacitor must be rated over the same
operating temperature range as the regulator. The equivalent series
resistance (ESR) of this capacitor is critical; see curve.
*
Required if regulator is located far from power supply filter.
**
C
OUT
must be at least 10 碌F to maintain stability. May be increased
FIGURE 1. Test and Application Circuit
漏 1998 National Semiconductor Corporation
DS005268
www.national.com
