LM2715 TFT Panel Module
May 2003
LM2715
TFT Panel Module
General Description
The LM2715 is a compact bias solution for TFT displays. It
has a current mode PWM step-up DC/DC converter with a
1.3A, 0.18鈩?internal switch. Capable of generating 8V at
240mA from a Lithium Ion battery, the LM2715 is ideal for
generating bias voltages for large screen LCD panels. The
LM2715 operates at a switching frequency of 1.25MHz al-
lowing for easy filtering and low noise. An external compen-
sation pin gives the user flexibility in setting frequency com-
pensation, which makes possible the use of small, low ESR
ceramic capacitors at the output. The LM2715 uses a pat-
ented internal circuitry to limit startup inrush current of the
boost switching regulator without the use of an external
softstart capacitor. The LM2715 has an internal controllable
PMOS switch used for controlling the row driver voltages.
The switch can be controlled externally with a control pin and
delay time. The LM2715 contains a Vcom amplifier and a
Gamma buffer capable of supplying 50mA source and sink.
The TSSOP-16 package ensures a low profile overall solu-
tion.
Features
n
n
n
n
n
n
n
n
n
n
1.3A, 0.18鈩? internal power switch
V
IN
operating range: 2.2V to 12V
1.25MHz switching frequency step-up DC/DC converter
Inrush current limiting circuitry
Internal 7鈩?PMOS switch
PMOS switch control pin
PMOS switch delay pin
Vcom amplifier
Gamma buffer

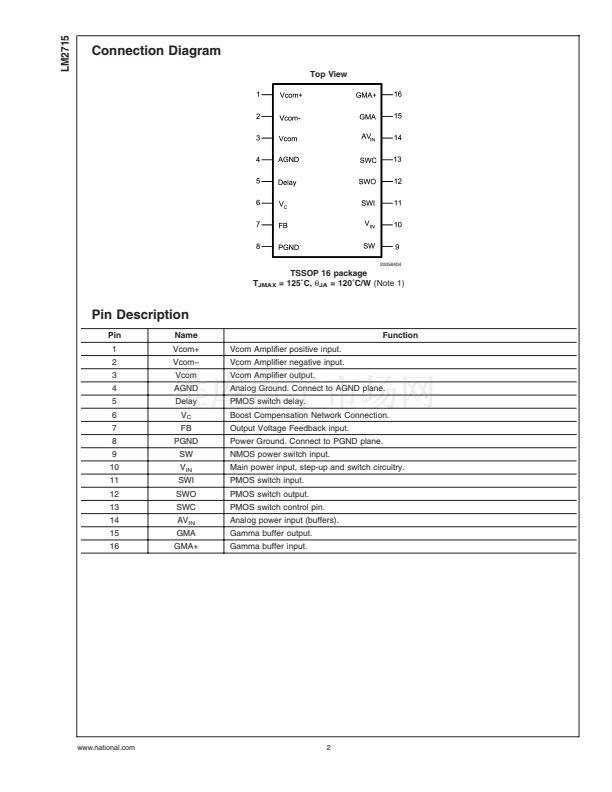

16 pin TSSOP package
Applications
n
LCD Bias Supplies
Typical Application Circuit
20058431
漏 2003 National Semiconductor Corporation
DS200584
www.national.com
