LM158 Datasheet

  • LM158

  • DUAL OPERATIONAL AMPLIFIERS

  • 20頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

LM158, LM158A, LM258, LM258A
LM358, LM358A, LM2904, LM2904V
DUAL OPERATIONAL AMPLIFIERS
SLOS068P 鈭?JUNE 1976 鈭?REVISED SEPTEMBER 2004
D
Wide Supply Range:
鈭?Single Supply . . . 3 V to 32 V
(26 V for LM2904)
鈭?or Dual Supplies . . .
+1.5
V to
+16
V
(+13 V for LM2904)
Low Supply-Current Drain, Independent of
Supply Voltage . . . 0.7 mA Typ
Common-Mode Input Voltage Range
Includes Ground, Allowing Direct Sensing
Near Ground
Low Input Bias and Offset Parameters:
鈭?Input Offset Voltage . . . 3 mV Typ
A Versions . . . 2 mV Typ
鈭?Input Offset Current . . . 2 nA Typ
鈭?Input Bias Current . . . 20 nA Typ
A Versions . . . 15 nA Typ
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage . . . 32 V
(26 V for LM2904)
Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
Internal Frequency Compensation
LM158, LM158A . . . JG PACKAGE
LM258, LM258A . . . D, DGK, OR P PACKAGE
LM358 . . . D, DGK, P, PS, OR PW PACKAGE
LM358A . . . D, DGK, P, OR PW PACKAGE
LM2904 . . . D, DGK, P, PS, OR PW PACKAGE
(TOP VIEW)
D
D
D
1OUT
1IN鈭?/div>
1IN+
GND
1
2
3
4
8
7
6
5
V
CC
2OUT
2IN鈭?/div>
2IN+
LM158, LM158A . . . FK PACKAGE
(TOP VIEW)
D
D
D
NC
1OUT
NC
V
CC+
NC
NC
1IN鈭?/div>
NC
1IN+
NC
4
5
6
7
8
3 2 1 20 19
18
17
16
15
14
9 10 11 12 13
NC
2OUT
NC
2IN鈭?/div>
NC

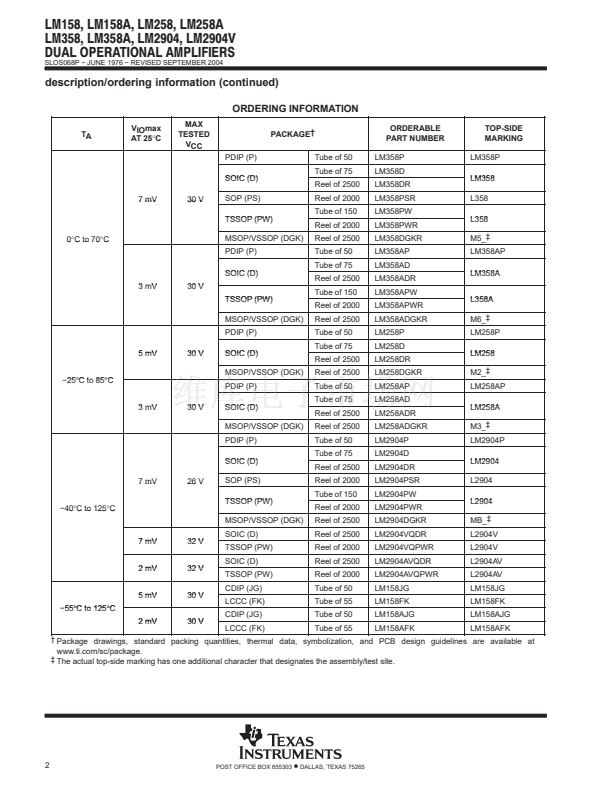

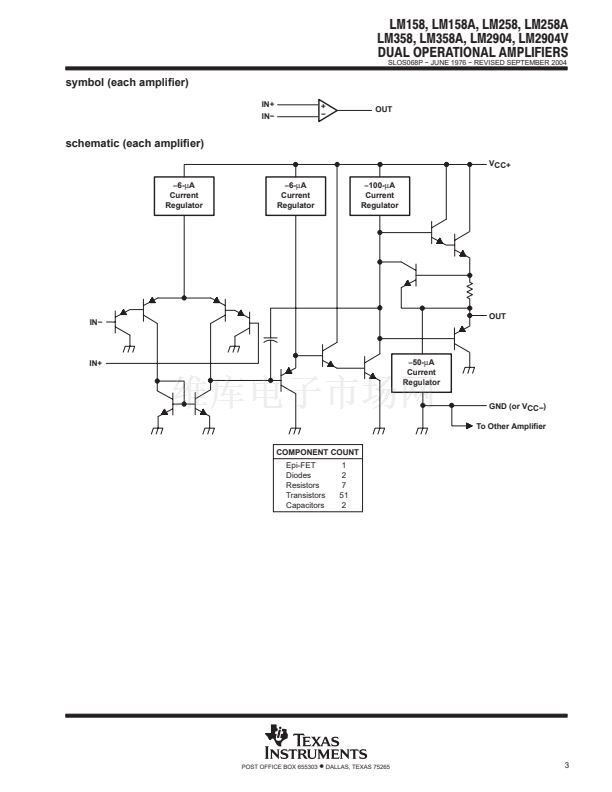

description/ordering information
These devices consist of two independent,
high-gain, frequency-compensated operational
amplifiers designed to operate from a single
supply over a wide range of voltages. Operation from split supplies also is possible if the difference between
the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and V
CC
is at least 1.5 V more positive than the
input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply
voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational
amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example,
these devices can be operated directly from the standard 5-V supply used in digital systems and easily can
provide the required interface electronics without additional
鹵5-V
supplies.
NC 鈭?No internal connection
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
On products compliant to MIL PRF 38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
Copyright
錚?/div>
2004, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
NC
GND
NC
2IN+
NC
1
