KK74HCT273AN Datasheet

  • KK74HCT273AN

  • Octal D Flip-Flop with Common Clock and Reset High-Performan...

  • 304.98KB

  • 6頁

  • KODENSHI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

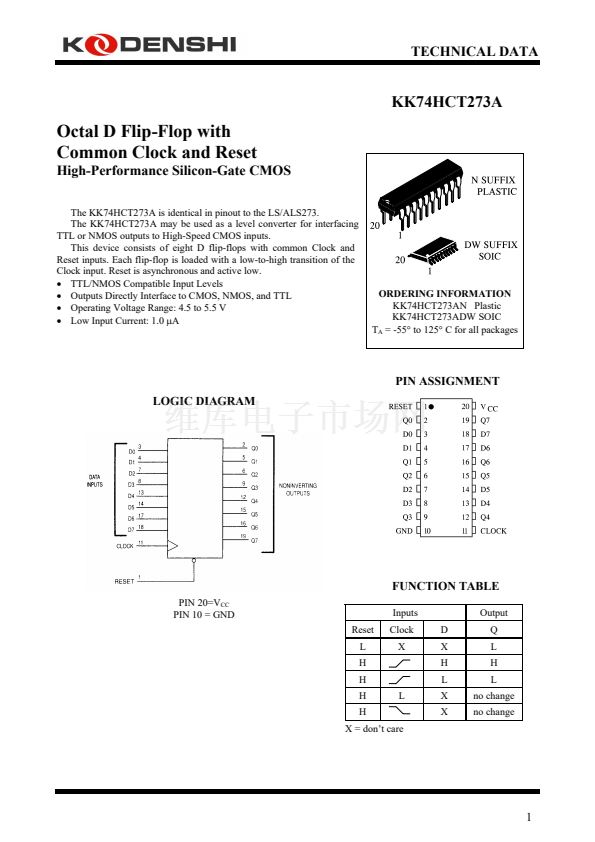

TECHNICAL DATA
KK74HCT273A
Octal D Flip-Flop with
Common Clock and Reset
High-Performance Silicon-Gate CMOS
The KK74HCT273A is identical in pinout to the LS/ALS273.
The KK74HCT273A may be used as a level converter for interfacing
TTL or NMOS outputs to High-Speed CMOS inputs.
This device consists of eight D flip-flops with common Clock and
Reset inputs. Each flip-flop is loaded with a low-to-high transition of the
Clock input. Reset is asynchronous and active low.
鈥?/div>
TTL/NMOS Compatible Input Levels
鈥?/div>
Outputs Directly Interface to CMOS, NMOS, and TTL
鈥?/div>
Operating Voltage Range: 4.5 to 5.5 V
鈥?/div>
Low Input Current: 1.0
碌A(chǔ)
ORDERING INFORMATION
KK74HCT273AN Plastic
KK74HCT273ADW SOIC
T
A
= -55擄 to 125擄 C for all packages
PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
PIN 20=V
CC
PIN 10 = GND
Reset
L
H
H
H
H
X = don鈥檛 care
L
Inputs
Clock
X
D
X
H
L
X
X
Output
Q
L
H
L
no change
no change
1
