KA5L0380R-YDTU Datasheet

  • KA5L0380R-YDTU

  • SPS consist of high voltage power SenseFET and current mode ...

  • 14頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

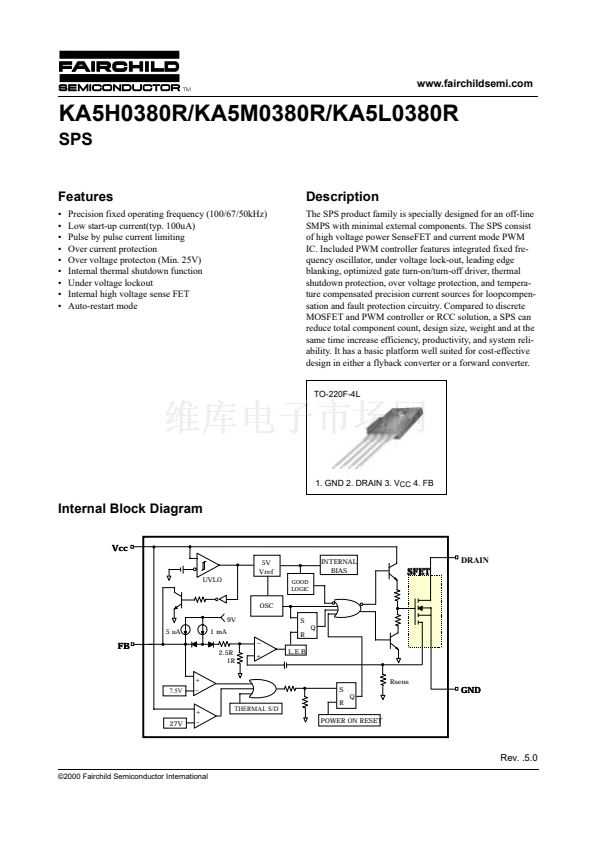

www.fairchildsemi.com

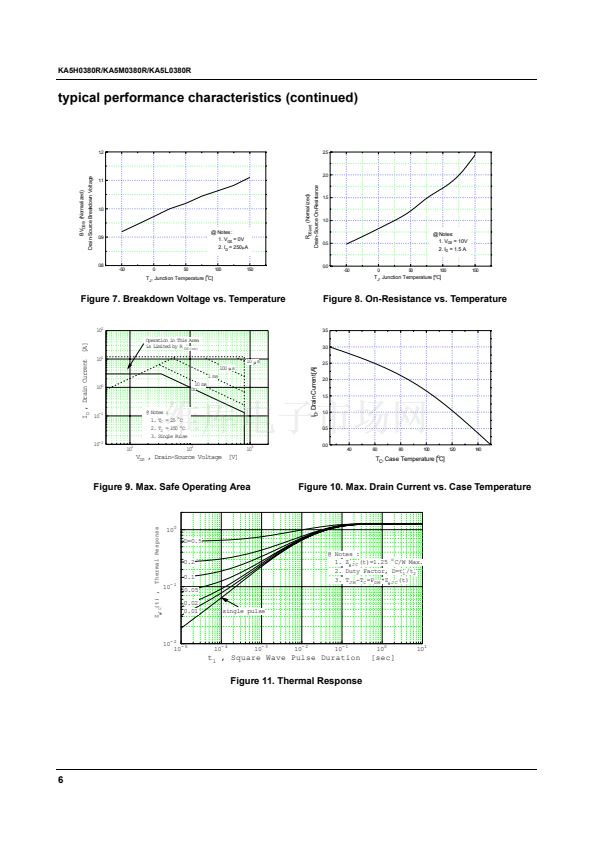

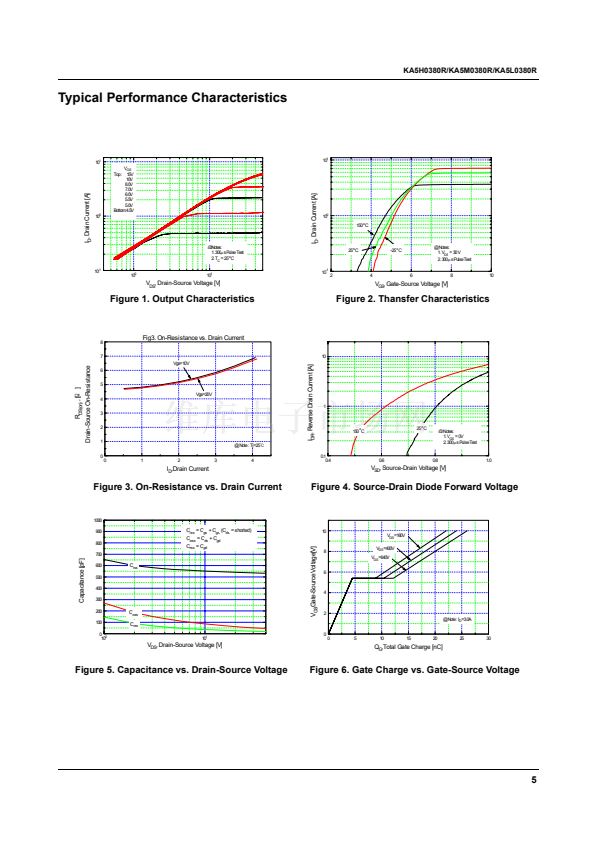

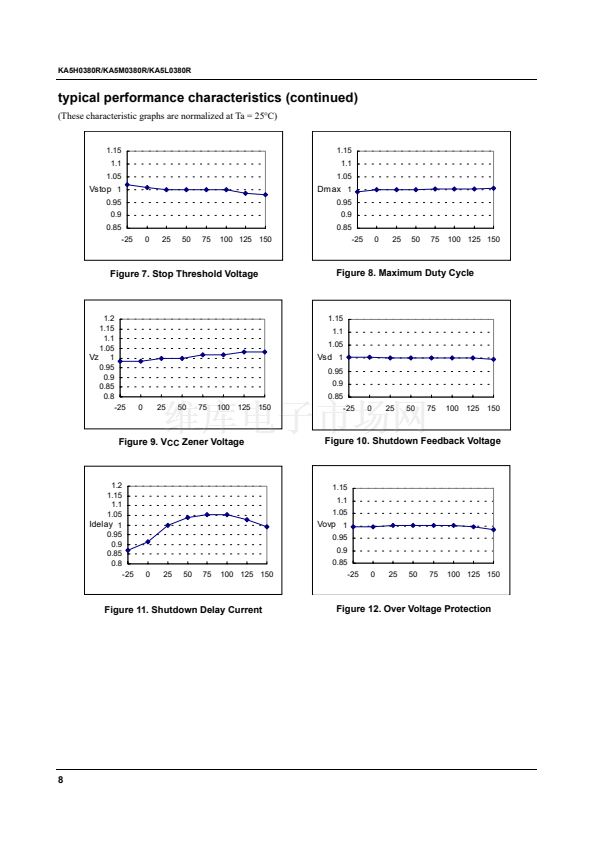

KA5H0380R/KA5M0380R/KA5L0380R
SPS
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Precision fixed operating frequency (100/67/50kHz)
Low start-up current(typ. 100uA)
Pulse by pulse current limiting
Over current protection
Over voltage protecton (Min. 25V)
Internal thermal shutdown function
Under voltage lockout
Internal high voltage sense FET
Auto-restart mode
Description
The SPS product family is specially designed for an off-line
SMPS with minimal external components. The SPS consist
of high voltage power SenseFET and current mode PWM
IC. Included PWM controller features integrated fixed fre-
quency oscillator, under voltage lock-out, leading edge
blanking, optimized gate turn-on/turn-off driver, thermal
shutdown protection, over voltage protection, and tempera-
ture compensated precision current sources for loopcompen-
sation and fault protection circuitry. Compared to discrete
MOSFET and PWM controller or RCC solution, a SPS can
reduce total component count, design size, weight and at the
same time increase efficiency, productivity, and system reli-
ability. It has a basic platform well suited for cost-effective
design in either a flyback converter or a forward converter.

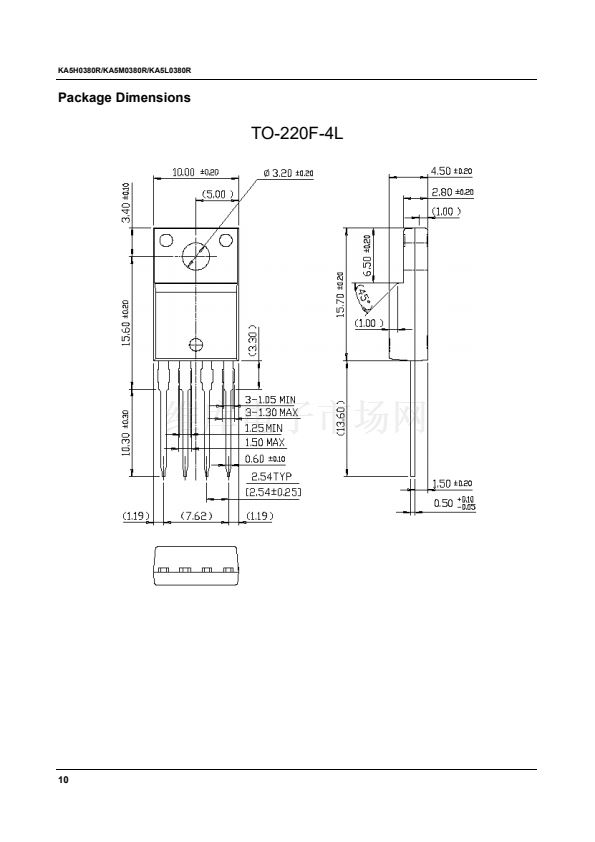

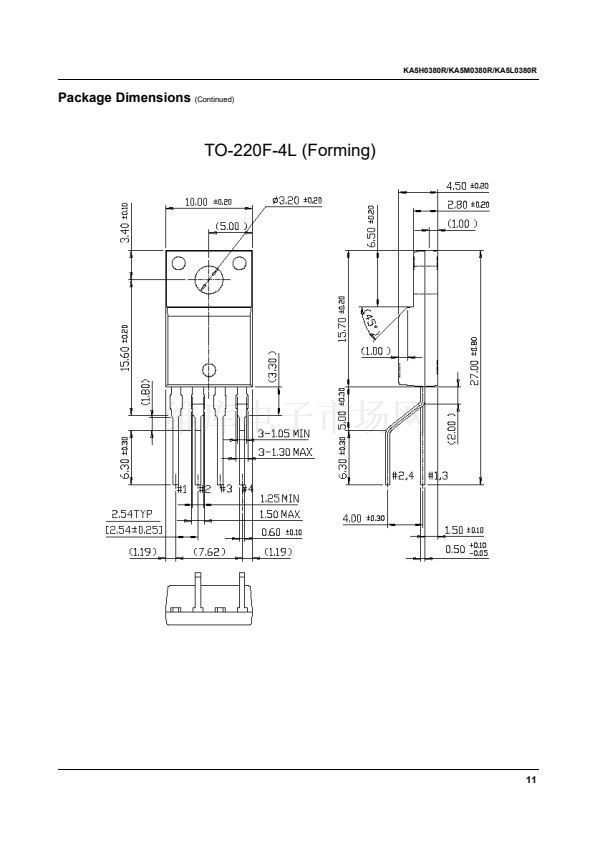

TO-220F-4L
1. GND 2. DRAIN 3. V
CC
4. FB
Internal Block Diagram
Vcc
5V
Vref
UVLO
GOOD
LOGIC
INTERNAL
BIAS
DRAIN
SFET
OSC
9V
5 uA
1 mA
_
2.5R
1R
+
_
THERMAL S/D
POWER ON RESET
+
L.E.B
S
Q
R
FB
Rsens
S
R
Q
7.5V
GND
27V
+
_
Rev. .5.0
漏2000 Fairchild Semiconductor International
