K7R321884M-FC25 Datasheet

  • K7R321884M-FC25

  • 1Mx36 & 2Mx18 QDRTM II b4 SRAM

  • 18頁

  • SAMSUNG   SAMSUNG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

K7R323684M
K7R321884M

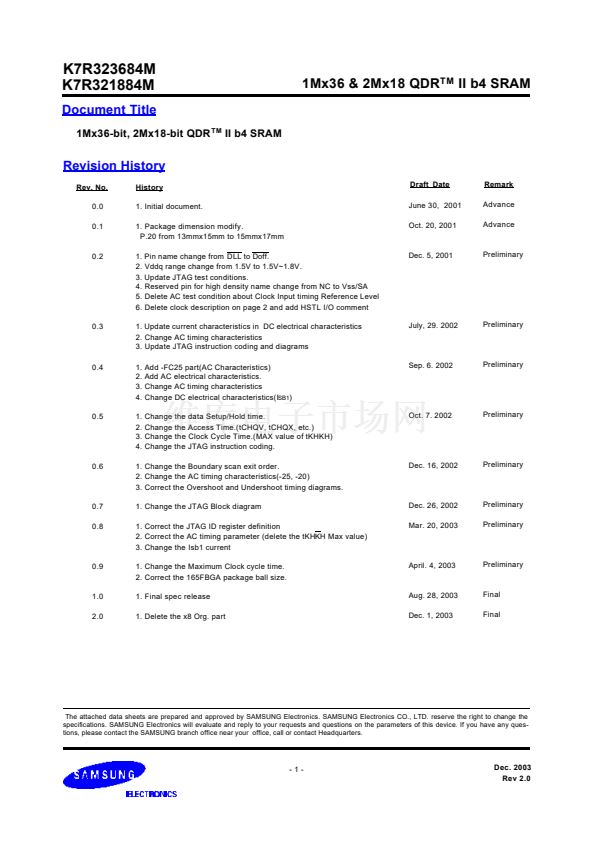

Document Title
1Mx36-bit, 2Mx18-bit QDR
TM
II b4 SRAM
1Mx36 & 2Mx18 QDR
TM
II b4 SRAM
Revision History
Rev. No.
0.0
0.1
History
1. Initial document.
1. Package dimension modify.
P.20 from 13mmx15mm to 15mmx17mm
1.
2.
3.
4.
5.
6.
Pin name change from DLL to Doff.
Vddq range change from 1.5V to 1.5V~1.8V.
Update JTAG test conditions.
Reserved pin for high density name change from NC to Vss/SA
Delete AC test condition about Clock Input timing Reference Level
Delete clock description on page 2 and add HSTL I/O comment
Draft Date
June 30, 2001
Oct. 20, 2001
Remark
Advance
Advance
0.2
Dec. 5, 2001
Preliminary
0.3
1. Update current characteristics in DC electrical characteristics
2. Change AC timing characteristics
3. Update JTAG instruction coding and diagrams
1.
2.
3.
4.
1.
2.
3.
4.
Add -FC25 part(AC Characteristics)
Add AC electrical characteristics.
Change AC timing characteristics
Change DC electrical characteristics(I
SB1
)
Change the data Setup/Hold time.
Change the Access Time.(tCHQV, tCHQX, etc.)
Change the Clock Cycle Time.(MAX value of tKHKH)
Change the JTAG instruction coding.
July, 29. 2002
Preliminary
0.4
Sep. 6. 2002
Preliminary
0.5
Oct. 7. 2002
Preliminary
0.6
1. Change the Boundary scan exit order.
2. Change the AC timing characteristics(-25, -20)
3. Correct the Overshoot and Undershoot timing diagrams.
1. Change the JTAG Block diagram
1. Correct the JTAG ID register definition
2. Correct the AC timing parameter (delete the tKHKH Max value)
3. Change the Isb1 current
1. Change the Maximum Clock cycle time.
2. Correct the 165FBGA package ball size.
1. Final spec release
1. Delete the x8 Org. part
Dec. 16, 2002
Preliminary
0.7
0.8
Dec. 26, 2002
Mar. 20, 2003
Preliminary
Preliminary
0.9
April. 4, 2003
Preliminary
1.0
2.0
Aug. 28, 2003
Dec. 1, 2003
Final
Final
The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions on the parameters of this device. If you have any ques-
tions, please contact the SAMSUNG branch office near your office, call or contact Headquarters.
-1-
Dec. 2003
Rev 2.0
