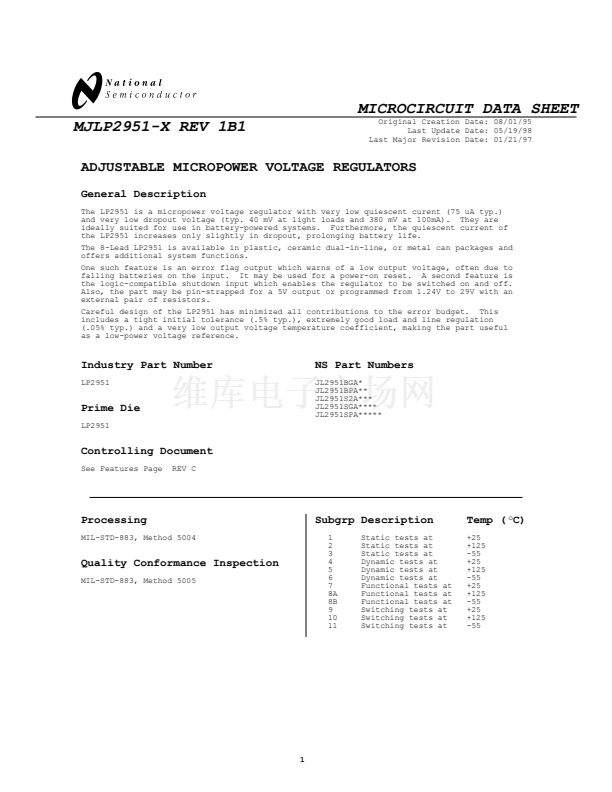

MICROCIRCUIT DATA SHEET

MJLP2951-X REV 1B1

Original Creation Date: 08/01/95

Last Update Date: 05/19/98

Last Major Revision Date: 01/21/97

ADJUSTABLE MICROPOWER VOLTAGE REGULATORS

General Description

The LP2951 is a micropower voltage regulator with very low quiescent curent (75 uA typ.)

and very low dropout voltage (typ. 40 mV at light loads and 380 mV at 100mA). They are

ideally suited for use in battery-powered systems. Furthermore, the quiescent current of

the LP2951 increases only slightly in dropout, prolonging battery life.

The 8-Lead LP2951 is available in plastic, ceramic dual-in-line, or metal can packages and

offers additional system functions.

One such feature is an error flag output which warns of a low output voltage, often due to

falling batteries on the input. It may be used for a power-on reset. A second feature is

the logic-compatible shutdown input which enables the regulator to be switched on and off.

Also, the part may be pin-strapped for a 5V output or programmed from 1.24V to 29V with an

external pair of resistors.

Careful design of the LP2951 has minimized all contributions to the error budget. This

includes a tight initial tolerance (.5% typ.), extremely good load and line regulation

(.05% typ.) and a very low output voltage temperature coefficient, making the part useful

as a low-power voltage reference.

Industry Part Number

LP2951

NS Part Numbers

JL2951BGA*

JL2951BPA**

JL2951S2A***

JL2951SGA****

JL2951SPA*****

Prime Die

LP2951

Controlling Document

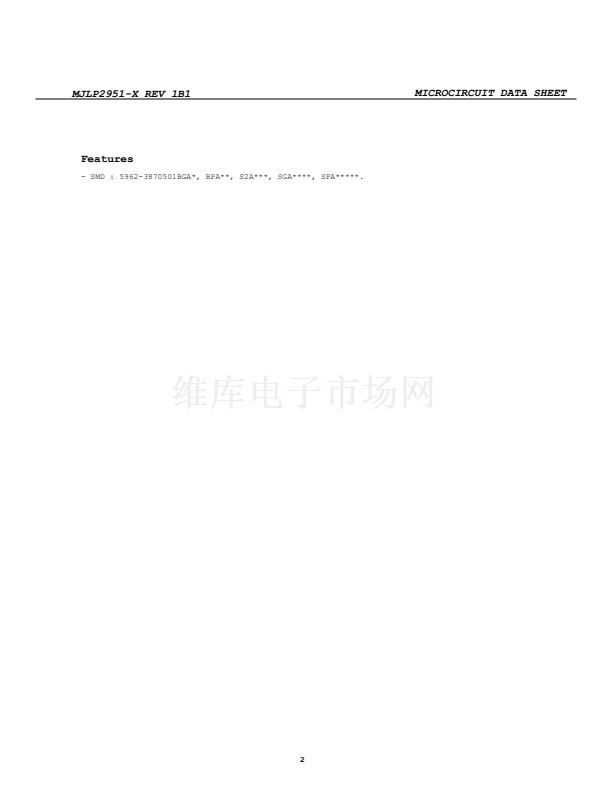

See Features Page

REV C

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

1
