MICROCIRCUIT DATA SHEET

MJLM124-X REV 1B1

Original Creation Date: 07/19/95

Last Update Date: 03/28/02

Last Major Revision Date: 03/16/00

QUAD OPERATIONAL AMPLIFIER, SINGLE SUPPLY, LOW POWER

General Description

The LM124 consists of four independent, high gain, internally frequency compensated

operational amplifiers which were designed specifically to operate from a single power

supply over a wide range of voltages. Operation from split power supplies is also possible

and the low power supply current drain is independent of the magnitude of the power supply

voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional

op amp circuits which now can be more easily implemented in single power supply systems.

For example, the LM124 can be directly operated off of the standard +5 VDC power supply

voltage which is used in digital systems and will easily provide the required interface

electronics without requiring the additional +15 VDC power supplies.

Industry Part Number

LM124

NS Part Numbers

JL124BCA

JL124BDA

JL124BZA

JL124SCA

JL124SDA

Prime Die

LM124

Controlling Document

38510/11005,AMEND.2 CIR.F

REV B

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

1

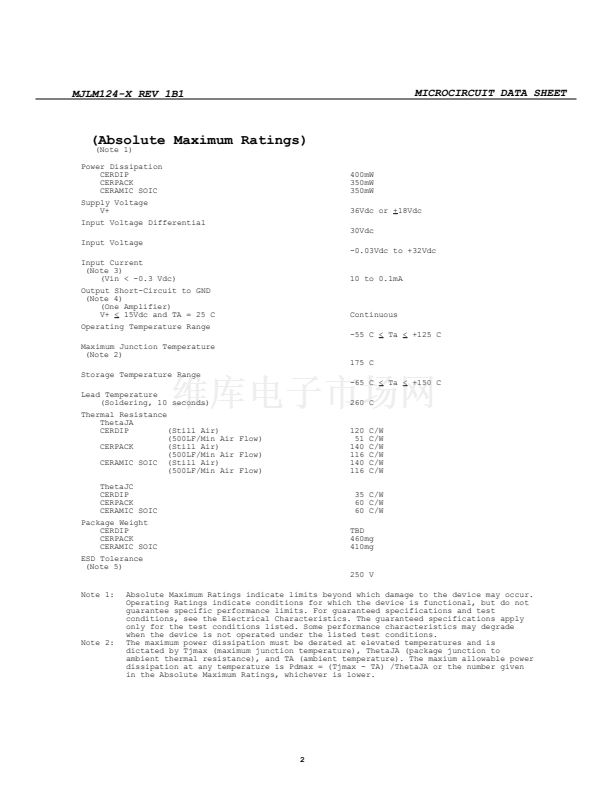

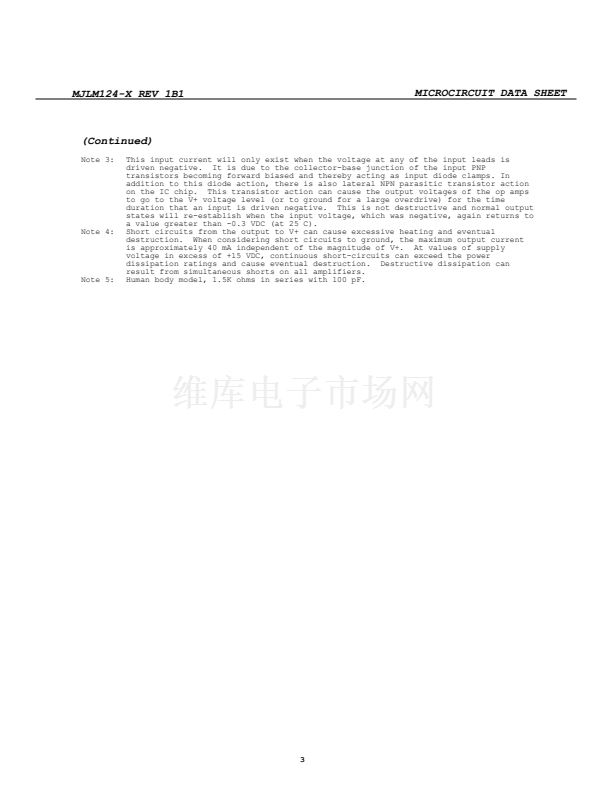

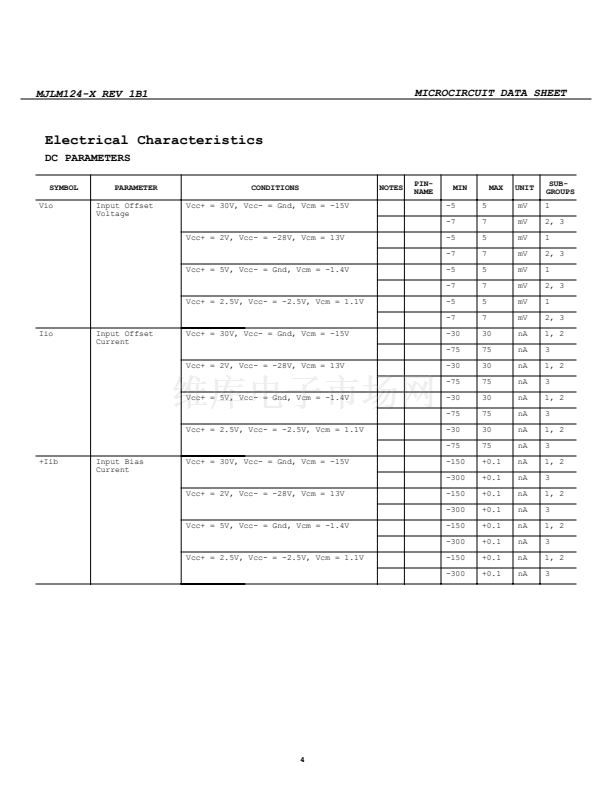

next
