The documentation and process
conversion measures necessary to
comply with this revision shall be
completed by 26 March 1998.
INCH-POUND
MIL-PRF-19500/556F
24 December 1997
SUPERSEDING
MIL-S-19500/556E
9 December 1994
PERFORMANCE SPECIFICATION SHEET
SEMICONDUCTOR DEVICE, FIELD EFFECT TRANSISTOR, N-CHANNEL, SILICON
TYPES 2N6782, 2N6782U, 2N6784, 2N6784U, 2N6786, AND 2N6786U
JAN, JANTX, JANTXV, JANS, JANHC, AND JANKC
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
1. SCOPE
1.1 Scope. This specification covers the performance requirements for an N-channel, enhancement-mode, MOSFET, power
transistor. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two
levels of product assurance are provided for each unencapsulated device type.

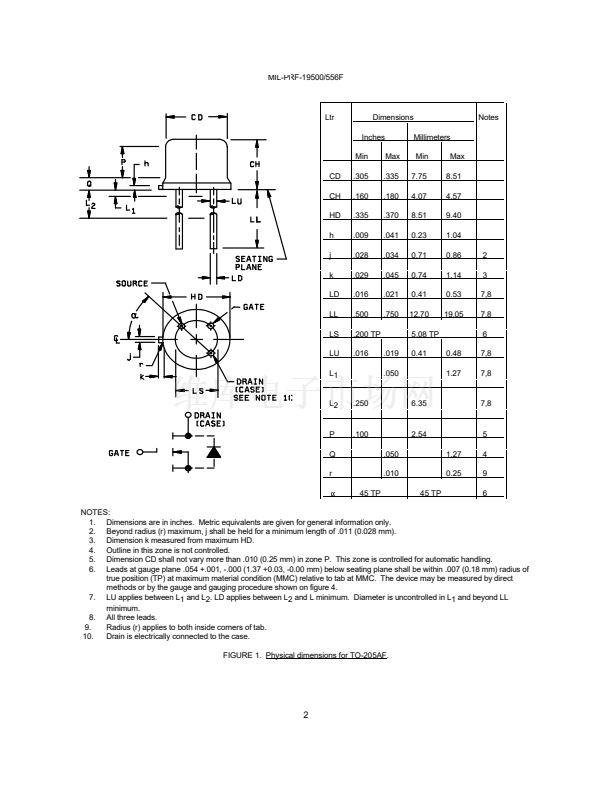

1.2 Physical dimensions. See figure 1 [similar to TO-205AF (formerly TO-39)], figure 3 (LCC), and figures 4 and 5 for JANHC and
JANKC die dimensions.
1.3 Maximum ratings. Unless otherwise specified, TA = +25

C.
Type
PT 1/
3/
TC = +25

C
W
2N6782
15
2N6784
15
2N6786
15
PT
TA = +25

C
W
0.8
0.8
0.8
VDS
V dc
100
200
400
VDG
V dc
100
200
400
VGS
V dc

20

20

20
ID1 2/
TC = +25

C
A dc
3.50
2.25
1.25
ID2 2/
TC = +100

C
A dc
2.25
1.50
0.80
IS
A dc
3.50
2.25
1.25
IDM
A(pk)
14.0
9.0
5.5
TJ and
TSTG

C
-55 to +150
-55 to +150
-55 to +150
1/ Derate linearly 0.12 W/

C for TC > +25

C.
TJ max - TC
P
T
=
R

JC
I
D
=
2/
( R
胃
JX)
T
J(
max
)
- T
C
x ( R
DS(on)
at T
J(
max
)
3/ Electrical characteristics for "U" suffix devices are identical to the corresponding non"U" suffix devices unless otherwise specified.
Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use in improving this document
should be addressed to: Commander, Defense Supply Center Columbus, ATTN: DSCC-VAT, 3990 East Broad St., Columbus, OH
43216-5000, by using the addressed Standardization Document Improvement Proposal (DD Form 1426) appearing at the end of this
document or by letter.
AMSC N/A
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
FSC 5961
