The documentation process conversion measures

necessary to comply with this revision shall be

completed by 10 December 1999

INCH-POUND

MIL-PRF-19500/527B

10 September 1999

SUPERSEDING

MIL-S-19500/527A

1 July 1993

PERFORMANCE SPECIFICATION SHEET

SEMICONDUCTOR DEVICE, DARLINGTON TRANSISTOR, PNP, SILICON, POWER

TYPES 2N6648, 2N6649 and 2N6650 JAN, JANTX AND JANTXV

This specification is approved for use by all Depart-

ments and Agencies of the Department of Defense.

1. SCOPE

1.1 Scope. This specification covers the performance requirements for PNP silicon, darlington power transistor. Three levels of

product assurance are provided as specified in MIL-PRF-19500.

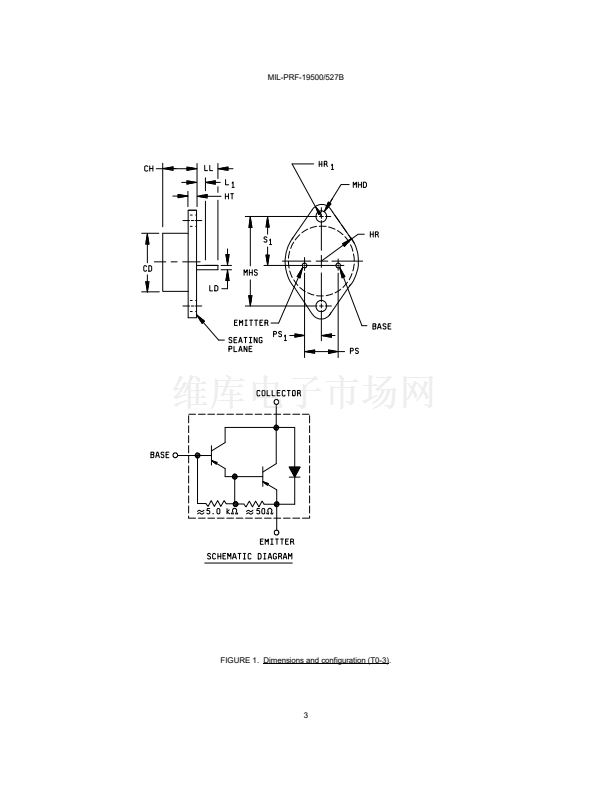

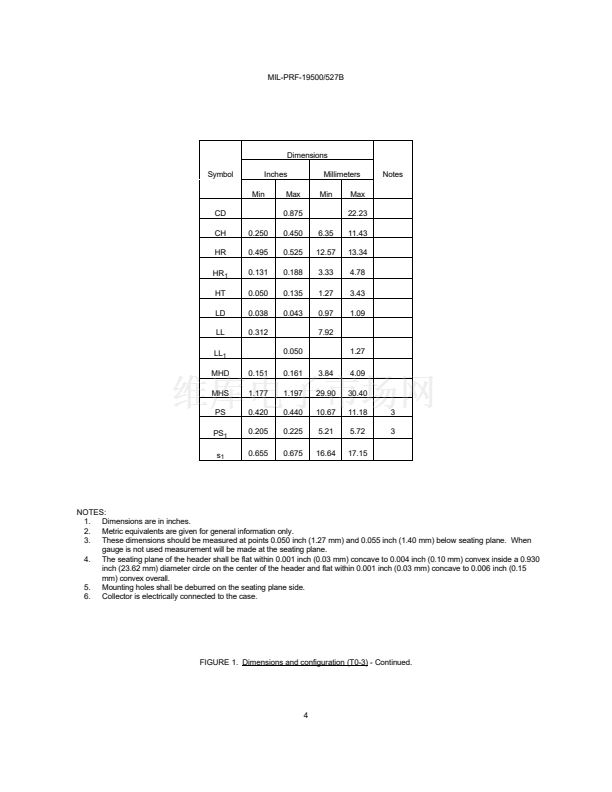

1.2 Physical dimensions. See figure 1 (TO - 3).

1.3 Maximum ratings.

= +25擄C

2N6648

2N6649

2N6650

5.0

= +25擄C

CBO

CEO

EBO

and T

STG

胃

V dc

-40

-60

-80

V dc

-40

-60

-80

V dc

-5.0

A dc

-0.25

A dc

-10

擄C

-65 to +175

擄C/W

1.76

1/ Derate linearly 33.3 mW/擄C above T

> +25擄C.

2/ Derate linearly 567 mW/擄C above T

> +25擄C.

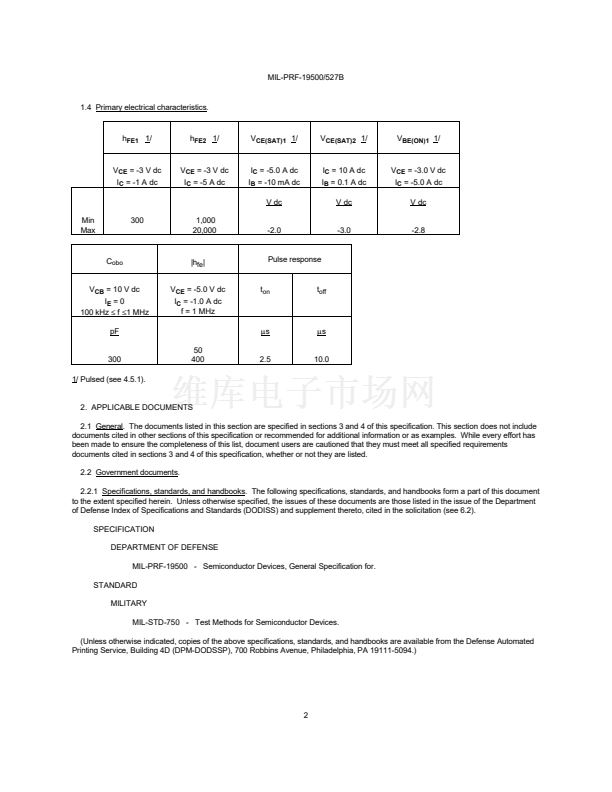

Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use in improving this

document should be addressed to: Commander, Defense Supply Center Columbus, ATTN: DSCC-VAC, 3990 East Broad Street,

Columbus, OH 43216-5000, by using the Standardization Document Improvement Proposal (DD Form 1426) appearing at the end

of this document or by letter.

AMSC N/A

DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.

FSC 5961

現有數量
0現貨查看交期
價格
100 : ￥1,185.56900散裝
系列
Military, MIL-PRF-19500/527
包裝
散裝
產品狀態
在售
晶體管類型
PNP - 達林頓
電流 - 集電極 (Ic)（最大值）
10 A
電壓 - 集射極擊穿（最大值）
60 V
不同?Ib、Ic 時?Vce 飽和壓降（最大值）
3V @ 100mA，10A
電流 - 集電極截止（最大值）
1mA（ICBO）
不同?Ic、Vce?時 DC 電流增益 (hFE)（最小值）
1000 @ 5A，3V
功率 - 最大值
5 W
頻率 - 躍遷
-
工作溫度
-65°C ~ 175°C（TJ）
安裝類型
通孔
封裝/外殼
TO-204AA，TO-3
供應商器件封裝
TO-204AA（TO-3）
