JANTXV2N6306 Datasheet

IC型號：
JANTXV2N6306
PDF描述：
TRANSISTOR | BJT | NPN | 250V V(BR)CEO | 8A I(C) | TO-3
文件大小：
69.03KB
PDF頁數：
12頁
芯片廠家：
ETC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

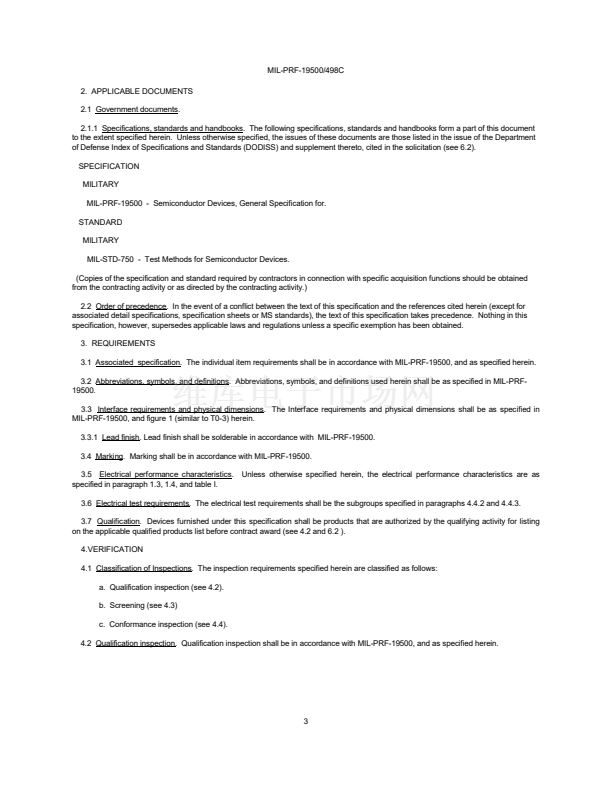

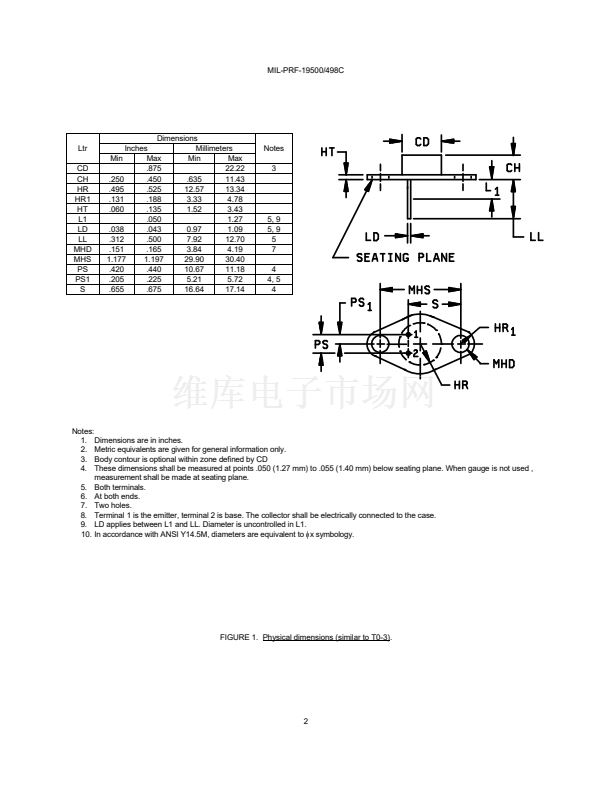

The documentation and process

conversion measures necessary to

comply with this revision shall be

completed by 27 July 1998.

INCH-POUND

MIL-PRF-19500/498C

27 March 1998

SUPERSEDING

MIL-S-19500/498B

5 October 1993

PERFORMANCE SPECIFICATION SHEET

SEMICONDUCTOR DEVICE, TRANSISTOR, NPN, SILICON, POWER

TYPE 2N6306, 2N6308, JAN, JANTX AND JANTXV

This Specification is approved for use by all Depart-

ments and Agencies of the Department of Defense.

1. SCOPE

1.1 Scope. This specification covers the performance requirements for NPN silicon, power transistors. Three levels of product

assurance are provided for each device type as specified in MIL-PRF-19500.

1.2 Physical dimensions. See 3.3. (Similar to TO-3)

1.3 Maximum ratings.

TC = +25

C 1/

TC = +100

C 1/

VCBO

V dc

VCEO

V dc

VEBO

V dc

A dc

4.0

A dc

8.0

TJ and TSTG

-65 to +200

2N6306

125

62.5

500

250

8.0

2N6308

125

62.5

700

350

8.0

1/ Between TC = +25

C and TC = +175

C , linear derating factor (average) = .833 W/

C .

1.4 Primary electrical characteristics.

hFE2

VCE = 5 V dc

IC = 3 A dc

Min

Max

hFE3

VCE = 5 V dc

IC = 8 A dc

Min

Max

VBE(sat) 1/

IC = 8 A dc

IB = 2/

Min

Max

VCE(sat)

IC = 8 A dc

IB = 2

Min

V dc

Max

V dc

IC = 3 A dc

IB = 0.6 A dc

Min

V dc

Max

V dc

0.8

1.5

2N6306

2N6308

Cobo

VCB = 10 V dc

IE = 0

100 < f < 1 MHz

Switching

ton

toff

2.3

2.5

hfe

VCE = 10 V dc

IC = 0.3 A dc

f = 1 MHz

0.6

3.0

Min

Max

250

1/ Pulsed (see 4.5.1).

2/ 2N6306 (IB) = 2.0 A dc; 2N6308 (IB) = 2.67 A dc.

Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use in improving this document

should be addressed to: Commander, Defense Supply Center Columbus, ATTN: DSCC-VAT, 3990 East Broad St., Columbus, OH

43216-5000, by using the addressed Standardization Document Improvement Proposal (DD Form 1426) appearing at the end of this

document or by letter.

AMSC N/A

DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.

FSC 5961

現有數量
0現貨查看交期
價格
100 : ￥530.53670散裝
系列
Military, MIL-PRF-19500/498
包裝
散裝
產品狀態
在售
晶體管類型
NPN
電流 - 集電極 (Ic)（最大值）
8 A
電壓 - 集射極擊穿（最大值）
250 V
不同?Ib、Ic 時?Vce 飽和壓降（最大值）
5V @ 2A，8A
電流 - 集電極截止（最大值）
50μA
不同?Ic、Vce?時 DC 電流增益 (hFE)（最小值）
15 @ 3A，5V
功率 - 最大值
125 W
頻率 - 躍遷
-
工作溫度
-65°C ~ 200°C（TJ）
安裝類型
通孔
封裝/外殼
TO-204AA，TO-3
供應商器件封裝
TO-204AA（TO-3）
