ISL55012IEZ-T7 Datasheet

  • ISL55012IEZ-T7

  • MMIC Silicon Bipolar Broadband Amplifier

  • 6頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
ISL55012
Data Sheet
December 6, 2006
FN6258.0
MMIC Silicon Bipolar Broadband Amplifier
The ISL55012 is a high performance gain block featuring a
Darlington configuration using high f
T
transistors and
excellent thermal performance. They are an ideal choice for
DVB-S LNB cable receiver applications.
Other members of the family includes:
ISL55012 and ISL55015 match a 75惟 source to a 50惟 load.
ISL55013 and ISL55014 match a 50惟 source to a 50惟 load.
Features
鈥?Input impedance of 75惟
鈥?Output impedance of 50惟
鈥?Gain of 18dB @ 1GHz
鈥?Noise figure of 4.7dB @ 2GHz
鈥?OIP3 of 30dBm @ 1GHz
鈥?Low input and output return losses
鈥?Pb-free plus anneal available (RoHS compliant)
Ordering Information
PART
NUMBER
(Note)
PART
MARKING
TAPE &
REEL
7鈥?/div>
(3k pcs)
PACKAGE
(Pb-Free)
6 Ld SC-70
PKG.
DWG. #
P6.049A
Applications
鈥?LNB and LNB-T (HDTV) amplifiers
鈥?IF gain blocks for satellite and terrestrial STBs
鈥?PA driver amplifier
鈥?Wireless data, satellite
鈥?Bluetooth/WiFi
鈥?Satellite locator and signal strength meters
ISL55012IEZ-T7 CCG
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
Typical Application Circuit
+5V
Pinout
(6 LD SC-70)
TOP VIEW
GND
0.1碌F
GND
2
3
5
4
GND
VSP
1
6
OUT
24惟
0.1碌F
100pF
100pF
3
68pF
1, 2, 5
4
6
100nH
IN
68pF
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright 漏 Intersil Americas Inc. 2006. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.

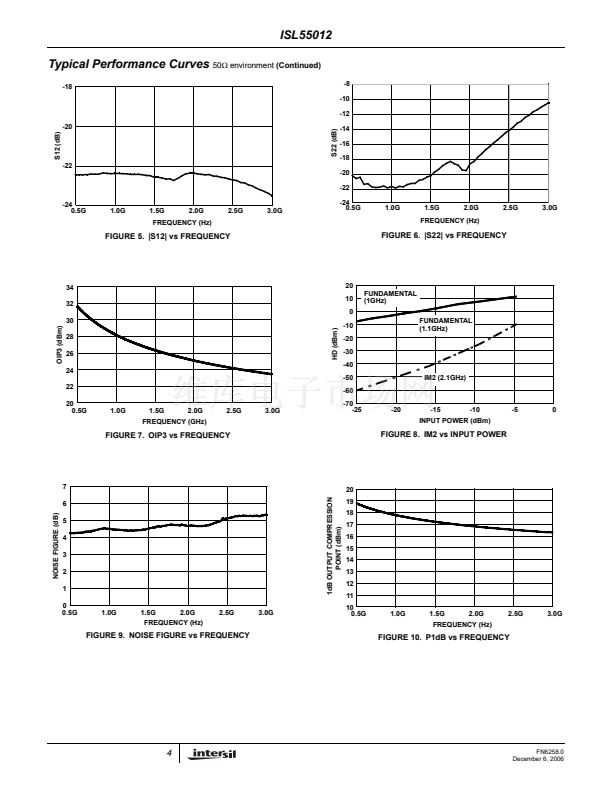

ISL55012IEZ-T7 產品屬性

  • 3,000

  • RF/IF 和 RFID

  • RF 放大器

  • -

  • 0Hz ~ 2GHz

  • 17.7dBm（58.9mW）

  • 19.5dB

  • 4.7dB

  • 藍牙

  • 5.5 V

  • 63.5mA

  • 1GHz

  • 6-TSSOP，SC-88，SOT-363

  • 帶卷 (TR)
