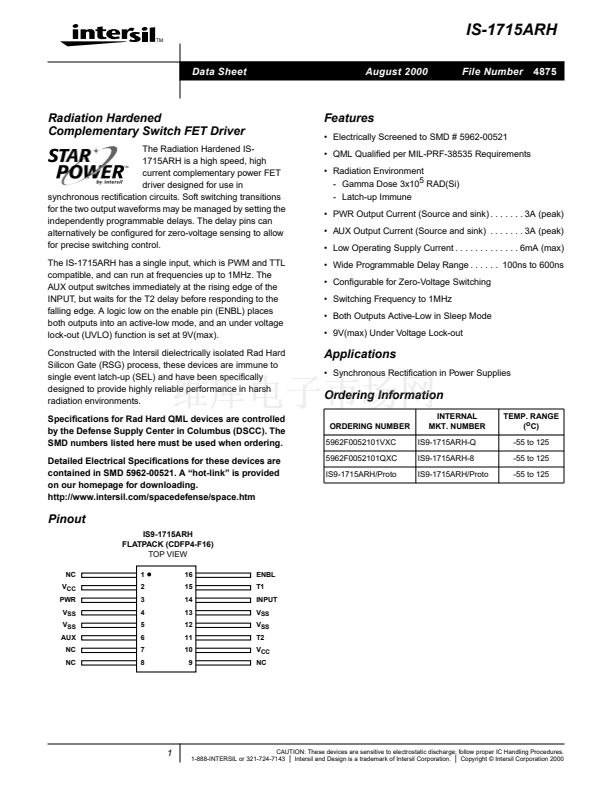

IS-1715ARH
TM
Data Sheet
August 2000
File Number
4875
Radiation Hardened
Complementary Switch FET Driver
The Radiation Hardened IS-
1715ARH is a high speed, high
current complementary power FET
driver designed for use in
synchronous recti鏗乧ation circuits. Soft switching transitions
for the two output waveforms may be managed by setting the
independently programmable delays. The delay pins can
alternatively be con鏗乬ured for zero-voltage sensing to allow
for precise switching control.
TM
Features
鈥?Electrically Screened to SMD # 5962-00521
鈥?QML Quali鏗乪d per MIL-PRF-38535 Requirements
鈥?Radiation Environment
- Gamma Dose 3x10
5
RAD(Si)
- Latch-up Immune
鈥?PWR Output Current (Source and sink) . . . . . . . 3A (peak)
鈥?AUX Output Current (Source and sink) . . . . . . . 3A (peak)
鈥?Low Operating Supply Current . . . . . . . . . . . . . 6mA (max)
鈥?Wide Programmable Delay Range . . . . . . 100ns to 600ns
鈥?Con鏗乬urable for Zero-Voltage Switching
鈥?Switching Frequency to 1MHz
鈥?Both Outputs Active-Low in Sleep Mode
鈥?9V(max) Under Voltage Lock-out
The IS-1715ARH has a single input, which is PWM and TTL
compatible, and can run at frequencies up to 1MHz. The
AUX output switches immediately at the rising edge of the
INPUT, but waits for the T2 delay before responding to the
falling edge. A logic low on the enable pin (ENBL) places
both outputs into an active-low mode, and an under voltage
lock-out (UVLO) function is set at 9V(max).
Constructed with the Intersil dielectrically isolated Rad Hard
Silicon Gate (RSG) process, these devices are immune to
single event latch-up (SEL) and have been speci鏗乧ally
designed to provide highly reliable performance in harsh
radiation environments.
Speci鏗乧ations for Rad Hard QML devices are controlled
by the Defense Supply Center in Columbus (DSCC). The
SMD numbers listed here must be used when ordering.
Detailed Electrical Speci鏗乧ations for these devices are
contained in SMD 5962-00521. A 鈥渉ot-link鈥?is provided
on our homepage for downloading.
http://www.intersil.com/spacedefense/space.htm
Applications
鈥?Synchronous Recti鏗乧ation in Power Supplies
Ordering Information
ORDERING NUMBER
5962F0052101VXC
5962F0052101QXC
IS9-1715ARH/Proto
INTERNAL
MKT. NUMBER
IS9-1715ARH-Q
IS9-1715ARH-8
IS9-1715ARH/Proto
TEMP. RANGE
(
o
C)
-55 to 125
-55 to 125
-55 to 125
Pinout
IS9-1715ARH
FLATPACK (CDFP4-F16)
TOP VIEW
NC
V
CC
PWR
V
SS
V
SS
AUX
NC
NC
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
ENBL
T1
INPUT
V
SS
V
SS
T2
V
CC
NC
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
