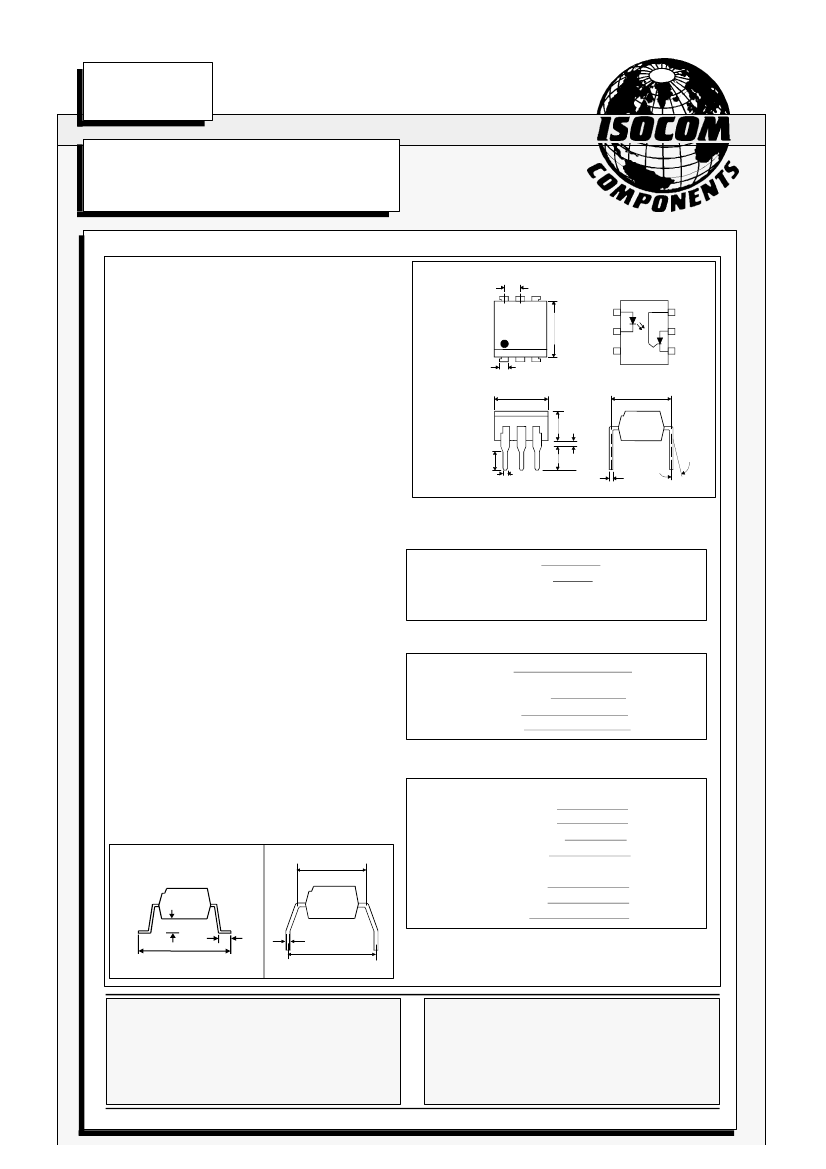

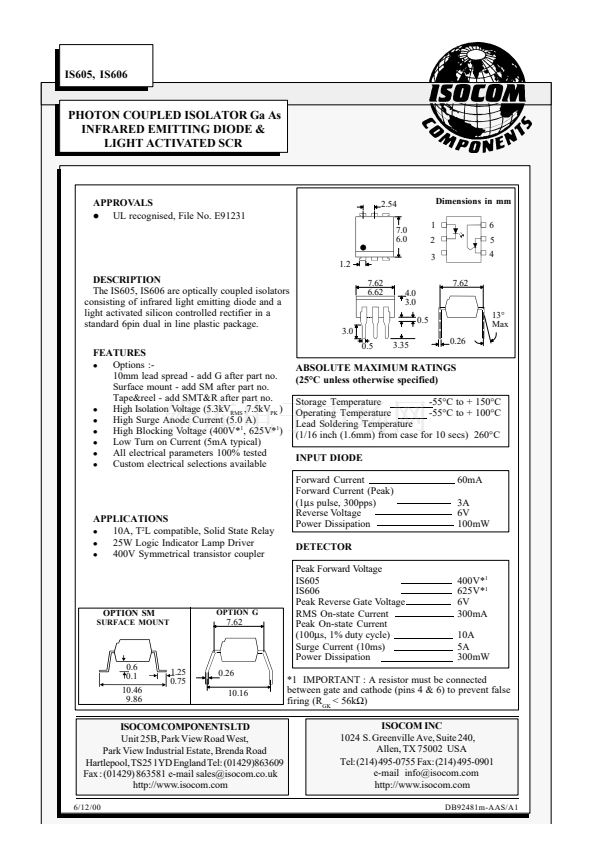

IS605, IS606
PHOTON COUPLED ISOLATOR Ga As
INFRARED EMITTING DIODE &
LIGHT ACTIVATED SCR
APPROVALS
l
UL recognised, File No. E91231
2.54
7.0
6.0
1.2
1
2
3
7.62
6.62
Dimensions in mm
6
5
4
7.62
4.0
3.0
0.5
13擄
Max
0.26
DESCRIPTION
The IS605, IS606 are optically coupled isolators
consisting of infrared light emitting diode and a
light activated silicon controlled rectifier in a
standard 6pin dual in line plastic package.
FEATURES
l
Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.
l
High Isolation Voltage (5.3kV
RMS
,7.5kV
PK
)
l
High Surge Anode Current (5.0 A)
l
High Blocking Voltage (400V*
1
, 625V*
1
)
l
Low Turn on Current (5mA typical)
l
All electrical parameters 100% tested
l
Custom electrical selections available
3.0
0.5
3.35

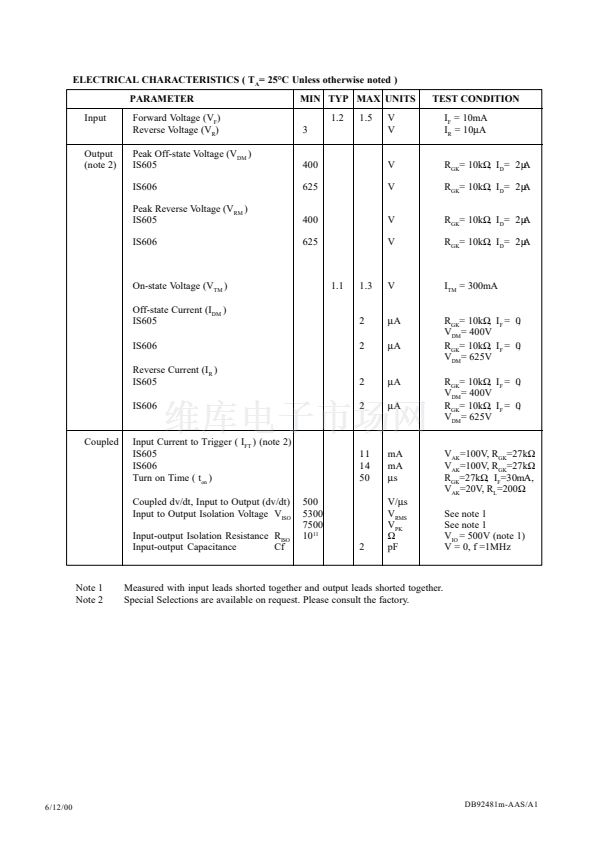

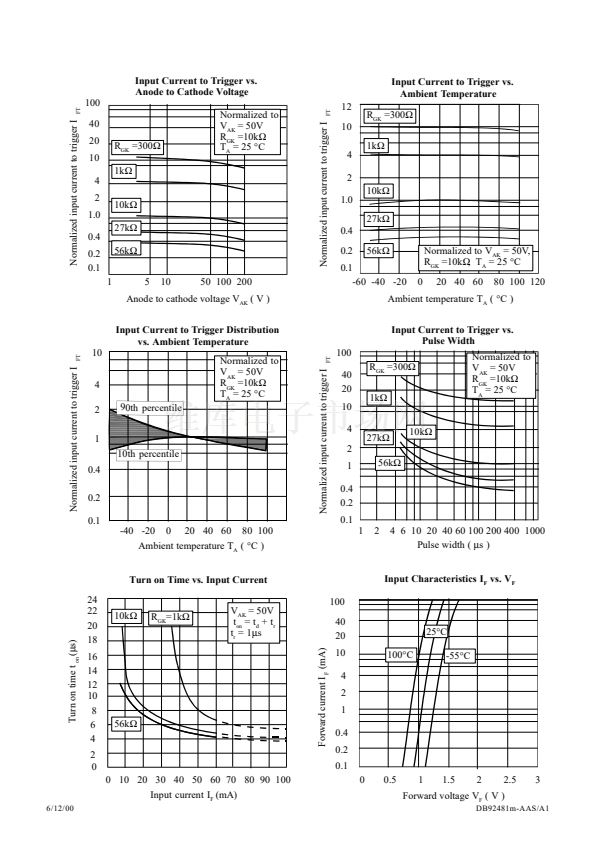

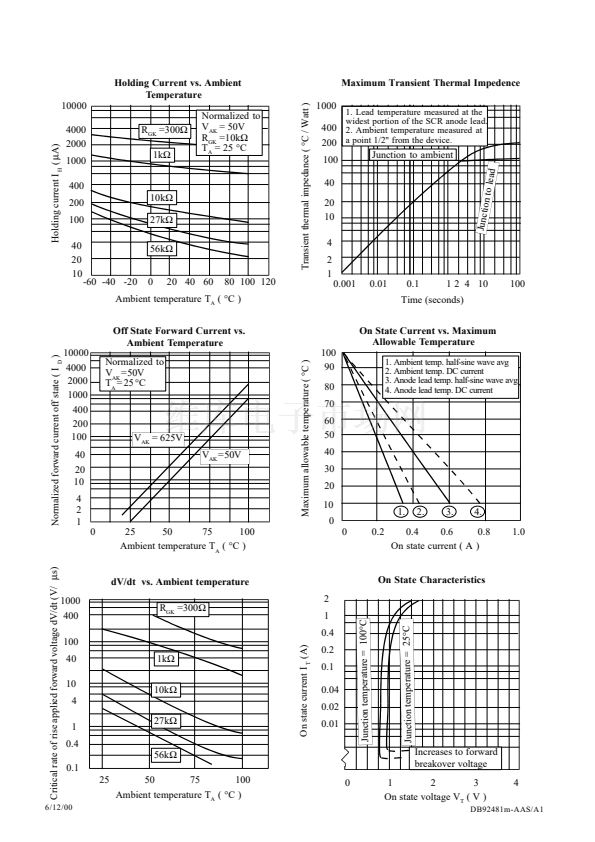

ABSOLUTE MAXIMUM RATINGS
(25擄C unless otherwise specified)
Storage Temperature
-55擄C to + 150擄C
Operating Temperature
-55擄C to + 100擄C
Lead Soldering Temperature
(1/16 inch (1.6mm) from case for 10 secs) 260擄C
INPUT DIODE
Forward Current
Forward Current (Peak)
(1
碌
s pulse, 300pps)
Reverse Voltage
Power Dissipation
DETECTOR
Peak Forward Voltage
IS605
IS606
Peak Reverse Gate Voltage
RMS On-state Current
Peak On-state Current
(100
碌
s, 1% duty cycle)
Surge Current (10ms)
Power Dissipation
400V*
1
625V*
1
6V
300mA
10A
5A
300mW
60mA
3A
6V
100mW
APPLICATIONS
l
10A, T
2
L compatible, Solid State Relay
l
25W Logic Indicator Lamp Driver
l
400V Symmetrical transistor coupler
OPTION SM
SURFACE MOUNT
OPTION G
7.62
0.6
0.1
10.46
9.86
1.25
0.75
0.26
10.16
*1 IMPORTANT : A resistor must be connected
between gate and cathode (pins 4 & 6) to prevent false
firing (R
GK
< 56k
鈩?/div>
)
ISOCOM INC
1024 S. Greenville Ave, Suite 240,
Allen, TX 75002 USA
Tel: (214) 495-0755 Fax: (214) 495-0901
e-mail info@isocom.com
http://www.isocom.com
DB92481m-AAS/A1
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, TS25 1YD England Tel: (01429)863609
Fax : (01429) 863581 e-mail sales@isocom.co.uk
http://www.isocom.com
6/12/00
