Data Sheet No. PD94139

IRU1261

DUAL 6A AND 1A LOW DROPOUT

POSITIVE FIXED 1.5V AND 2.5V REGULATOR

DESCRIPTION

The IRU1261, using a proprietary process, combines a

dual low dropout regulator with fixed outputs of 1.5V and

2.5V in a single package with the 1.5V output having a

minimum of 6A and the 2.5V having a 1A output current

capability. This product is specifically designed to pro-

vide well regulated supplies from 3.3V to generate 1.5V

for GTL+ termination resistor supply and 2.5V clock

supply for the new generation of the Pentium II proces-

sor applications.

FEATURES

Guaranteed to Provide 1.5V and 2.5V Supplies

with 3.1V Input

Fast Transient Response

1% Voltage Reference Initial Accuracy

Built-In Thermal Shutdown

APPLICATIONS

Pentium II Processor Applications

TYPICAL APPLICATION

3.3V

Vout1

Vin

2.5V / 1A

IRU1261

Gnd

Vout2

Vctrl

1.5V / 6A

1261app1-1.3

Figure 1 - Typical application of IRU1261 in a Pentium II processor application

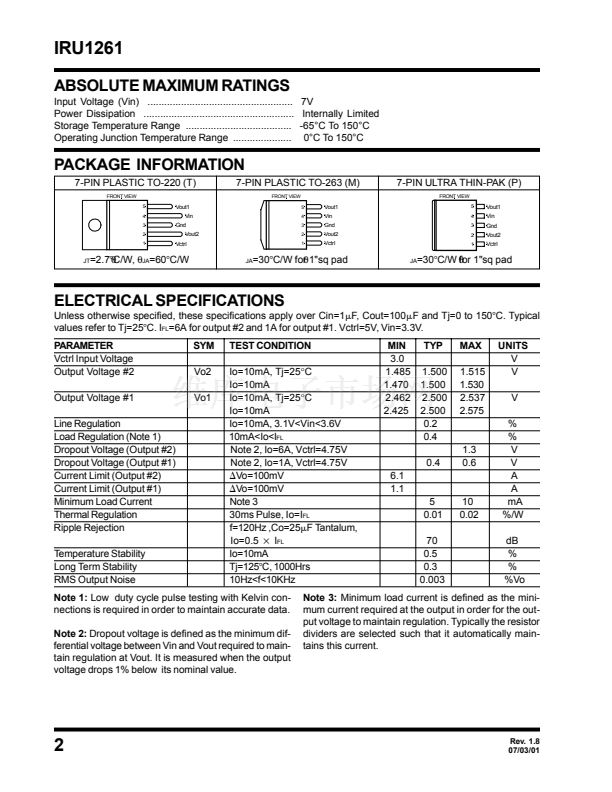

PACKAGE ORDER INFORMATION

Tj (擄C)

0 To 150

5-PIN PLASTIC

TO-220 (T)

IRU1261CT

5-PIN PLASTIC

TO-263 (M)

IRU1261CM

5-PIN PLASTIC

Ultra Thin-Pak (P)

IRU1261CP

Rev. 1.8

07/03/01

現有數量
0現貨
價格
停產
系列
-
包裝
管件
產品狀態
停產
應用
轉換器，Intel Pentium? II
電壓 - 輸入
3V ~ 7V
輸出數
2
電壓 - 輸出
1.5V，2.5V
工作溫度
0°C ~ 150°C
安裝類型
通孔
封裝/外殼
TO-220-5
供應商器件封裝
TO-220AB（5-LEAD）
