IRL2505 Datasheet

  • IRL2505

  • Power MOSFET

  • 180.03KB

  • 10頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

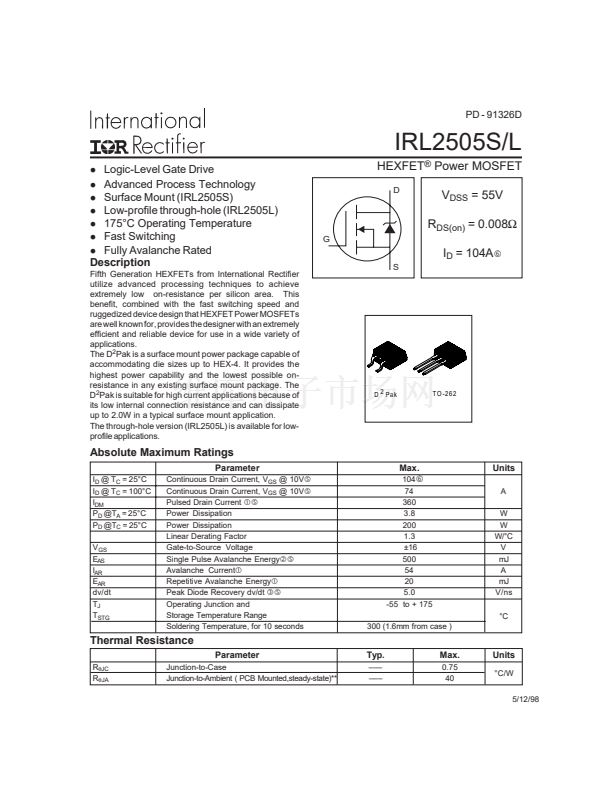

PD - 91326D
IRL2505S/L
Logic-Level Gate Drive
l
Advanced Process Technology
l
Surface Mount (IRL2505S)
l
Low-profile through-hole (IRL2505L)
l
175擄C Operating Temperature
l
Fast Switching
l
Fully Avalanche Rated
Description
l
HEXFET
廬
Power MOSFET
D
V
DSS
= 55V
R
DS(on)
= 0.008鈩?/div>
G
I
D
= 104A
聠
S
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This
benefit, combined with the fast switching speed and
ruggedized device design that HEXFET Power MOSFETs
are well known for, provides the designer with an extremely
efficient and reliable device for use in a wide variety of
applications.

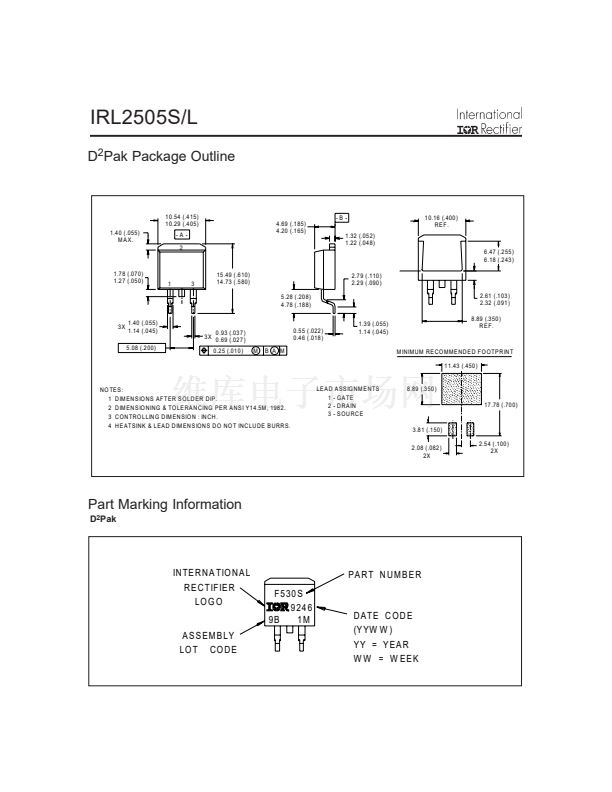

The D
2
Pak is a surface mount power package capable of
accommodating die sizes up to HEX-4. It provides the
highest power capability and the lowest possible on-
resistance in any existing surface mount package. The
D
2
Pak is suitable for high current applications because of
its low internal connection resistance and can dissipate
up to 2.0W in a typical surface mount application.
The through-hole version (IRL2505L) is available for low-
profile applications.

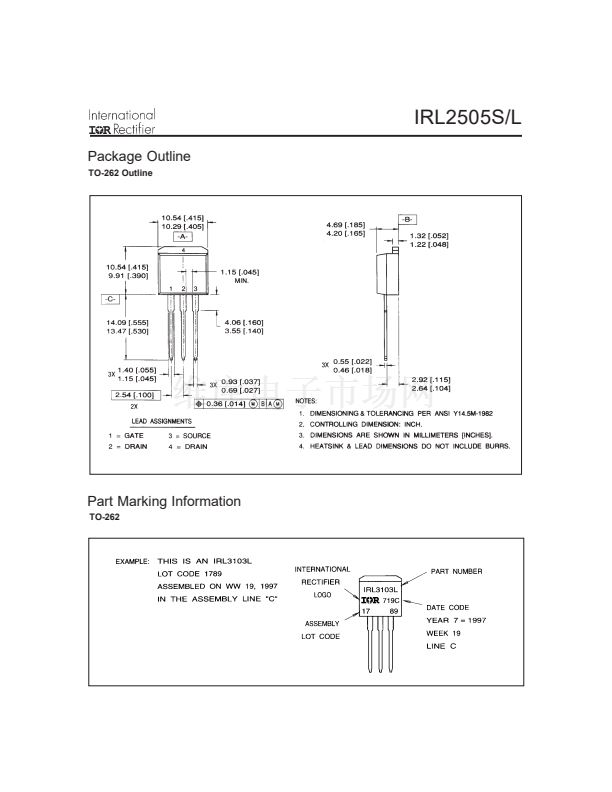

D 2 P ak
T O -26 2
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25擄C
I
D
@ T
C
= 100擄C
I
DM
P
D
@T
A
= 25擄C
P
D
@T
C
= 25擄C
V
GS
E
AS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V聟
Continuous Drain Current, V
GS
@ 10V聟
Pulsed Drain Current
聛聟
Power Dissipation
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy聜聟
Avalanche Current聛
Repetitive Avalanche Energy聛
Peak Diode Recovery dv/dt
聝聟
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Max.
104
聠
74
360
3.8
200
1.3
鹵16
500
54
20
5.0
-55 to + 175
300 (1.6mm from case )
Units
A
W
W
W/擄C
V
mJ
A
mJ
V/ns
擄C
Thermal Resistance
Parameter
R
胃JC
R
胃JA
Junction-to-Case
Junction-to-Ambient ( PCB Mounted,steady-state)**
Typ.
鈥撯€撯€?/div>
鈥撯€撯€?/div>
Max.
0.75
40
Units
擄C/W
5/12/98
