Bulletin I27136 rev. E 10/02
IRKU/V105 SERIES
THYRISTOR/ THYRISTOR
ADD-A-pak
TM
GEN V Power Modules
Features
High Voltage
Industrial Standard Package
Thick Al metal die and double stick bonding
Thick copper baseplate
UL E78996 approved
3500V
RMS
isolating voltage
Benefits
Up to 1600V
Full compatible TO-240AA
High Surge capability
Easy Mounting on heatsink
Al
2
0
3
DBC insulator
Heatsink grounded
105 A
Mechanical Description
The Generation V of Add-A-pak module combine the
excellent thermal performance obtained by the usage
of Direct Bonded Copper substrate with superior me-
chanical ruggedness, thanks to the insertion of a solid
Copper baseplate at the bottom side of the device.
The Cu baseplate allow an easier mounting on the
majority of heatsink with increased tolerance of sur-
face roughness and improve thermal spread.
The Generation V of AAP module is manufactured
without hard mold, eliminating in this way any possible
direct stress on the leads.
The electrical terminals are secured against axial pull-
out: they are fixed to the module housing via a click-stop
feature already tested and proved as reliable on other IR
modules.
Electrical Description
These modules are intended for general purpose high
voltage applications such as high voltage regulated
power supplies, lighting circuits, temperature and motor
speed control circuits, UPS and battery charger.

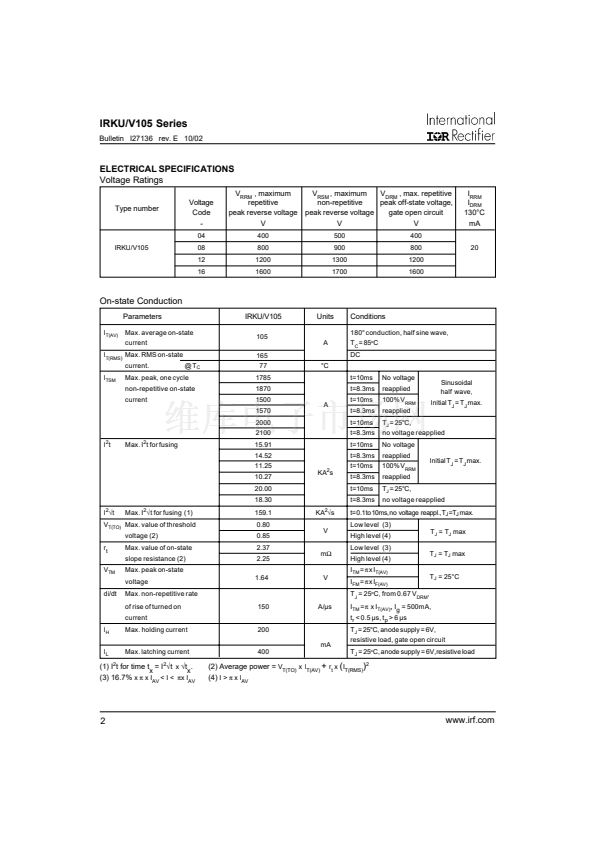

Major Ratings and Characteristics
Parameters
I
T(AV)
@ 85擄C
I
T(RMS)
I
TSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
I
2
鈭歵
V
RRM
range
T
STG
T
J
IRKU/V105
105
165
1785
1870
15.91
14.52
159.1
400 to 1600
- 40 to 125
- 40 to130
Units
A
A
A
A
KA
2
s
KA
2
s
KA
2
鈭歴
V
o
C
C
o
www.irf.com
1
