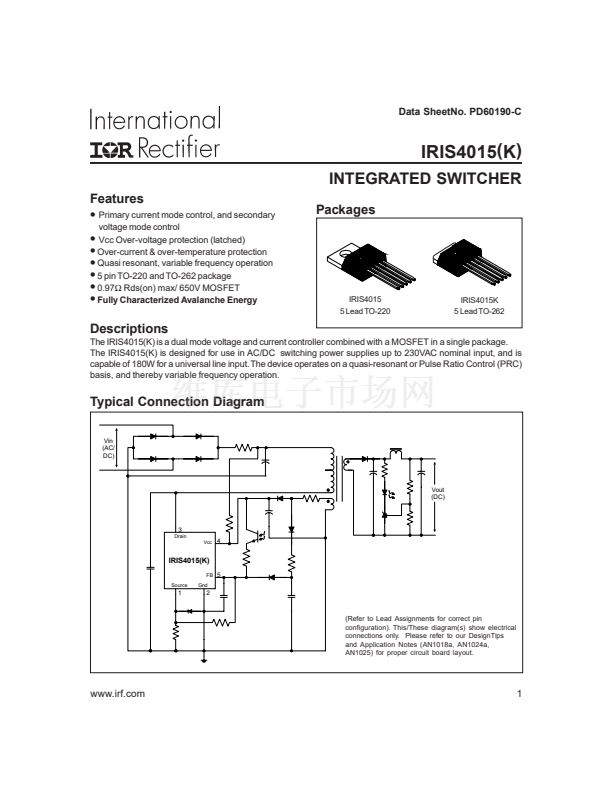

Data SheetNo. PD60190-C
IRIS4015(K)
INTEGRATED SWITCHER
Features
鈥?/div>
Primary current mode control, and secondary
voltage mode control
鈥?/div>
Vcc Over-voltage protection (latched)
鈥?/div>
Over-current & over-temperature protection
鈥?/div>
Quasi resonant, variable frequency operation
鈥?/div>
5 pin TO-220 and TO-262 package
鈥?/div>
0.97鈩?Rds(on) max/ 650V MOSFET
鈥?/div>
Fully Characterized Avalanche Energy
Packages

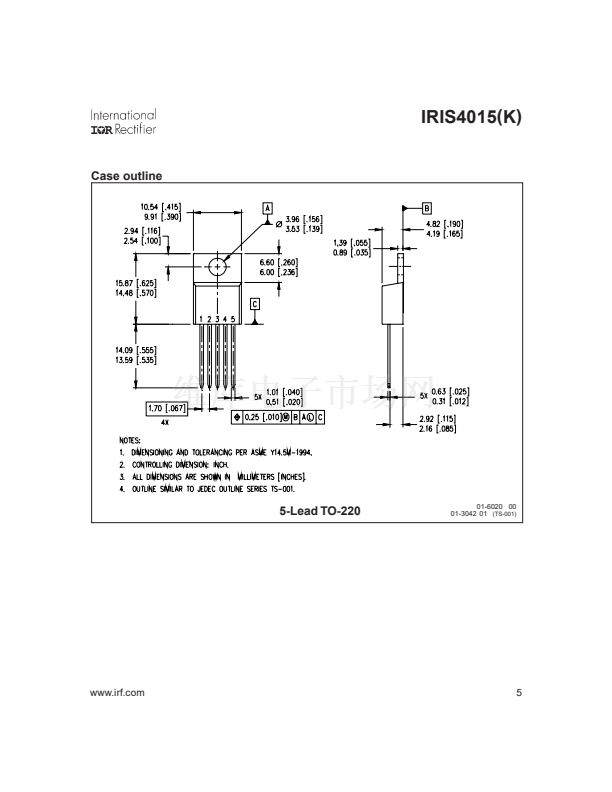

IRIS4015
5 Lead TO-220

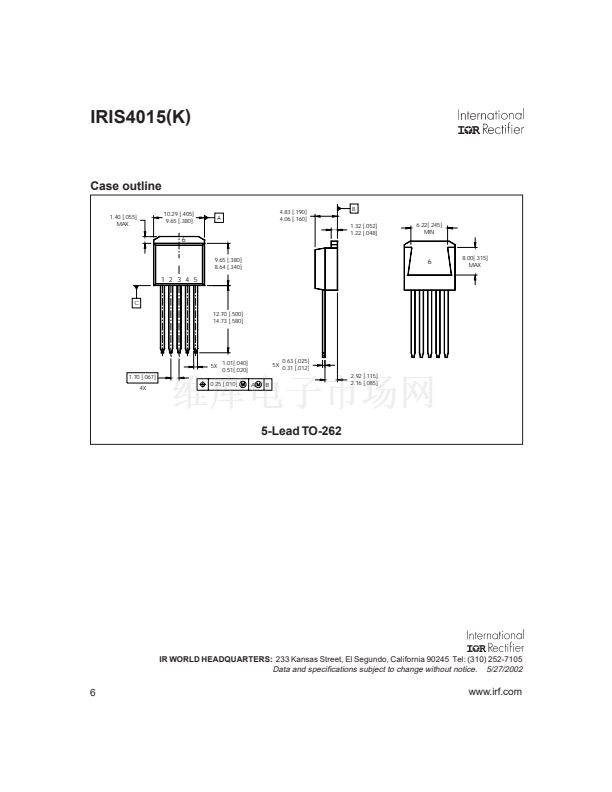

IRIS4015K
5 Lead TO-262

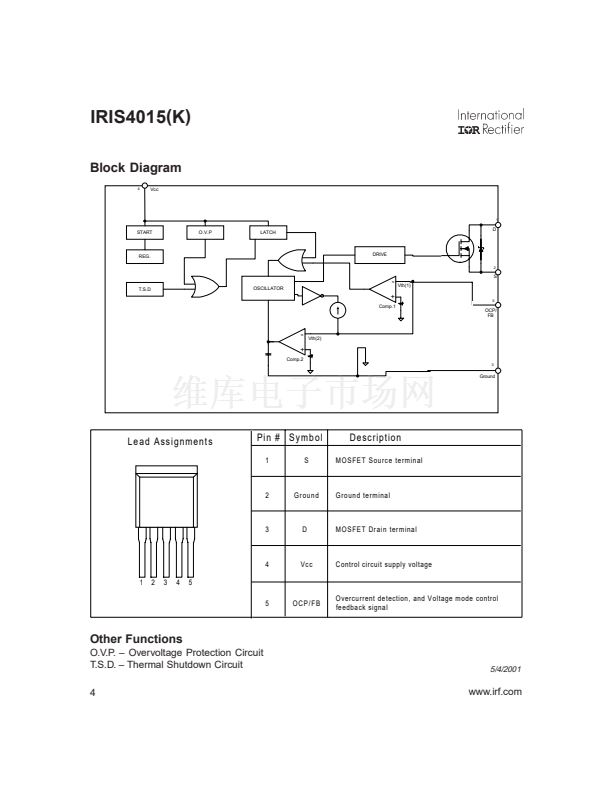

Descriptions
The IRIS4015(K) is a dual mode voltage and current controller combined with a MOSFET in a single package.
The IRIS4015(K) is designed for use in AC/DC switching power supplies up to 230VAC nominal input, and is
capable of 180W for a universal line input. The device operates on a quasi-resonant or Pulse Ratio Control (PRC)
basis, and thereby variable frequency operation.
Typical Connection Diagram
Vin
(AC/
DC)
Vout
(DC)
3
Drain
Vcc
4
IRIS4015(K)
FB
Source
Gnd
5
1
2
(Refer to Lead Assignments for correct pin
configuration). This/These diagram(s) show electrical
connections only. Please refer to our DesignTips
and Application Notes (AN1018a, AN1024a,
AN1025) for proper circuit board layout.
www.irf.com
1

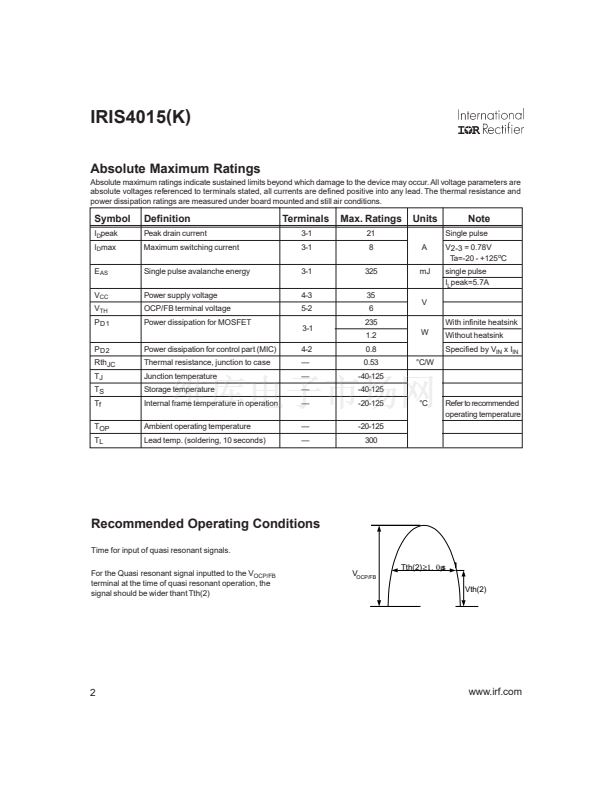

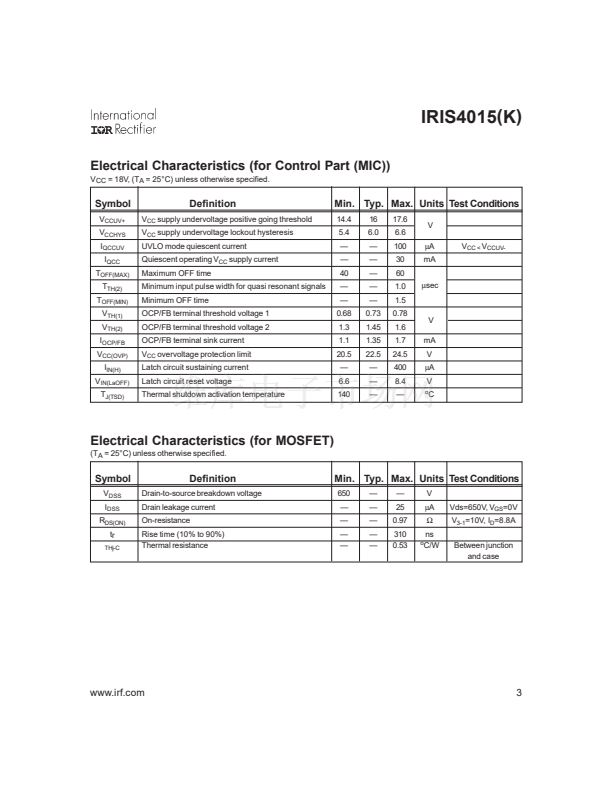

IRIS4015 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 專用型

  • -

  • 控制器，ACDC 切換電源

  • 6 V ~ 16 V

  • 1

  • 650V

  • -20°C ~ 125°C

  • 通孔

  • TO-220-5

  • TO-220AB（5-LEAD）

  • 管件

  • *IRIS4015
