IRHQ7110 Datasheet

  • IRHQ7110

  • RADIATION HARDENED POWER MOSFET SURFACE MOUNT (LCC-28)

  • 8頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

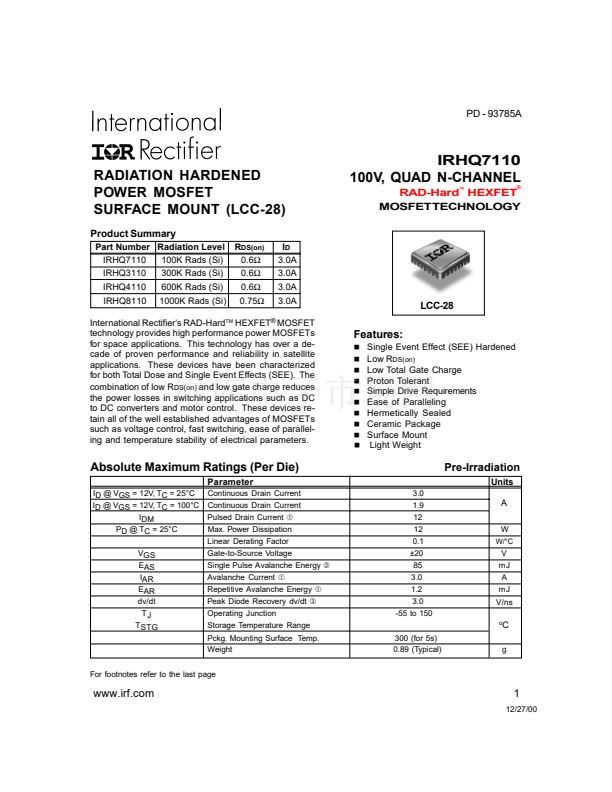

PD - 93785A
RADIATION HARDENED
POWER MOSFET
SURFACE MOUNT (LCC-28)
Product Summary
Part Number Radiation Level
IRHQ7110
100K Rads (Si)
IRHQ3110
IRHQ4110
IRHQ8110
300K Rads (Si)
600K Rads (Si)
1000K Rads (Si)
R
DS(on)
0.6鈩?/div>
0.6鈩?/div>
0.6鈩?/div>
0.75鈩?/div>
I
D
3.0A
3.0A
3.0A
3.0A
IRHQ7110
100V, QUAD N-CHANNEL
RAD-Hard HEXFET
MOSFET TECHNOLOGY
鈩?/div>
廬
LCC-28
International Rectifier鈥檚 RAD-Hard
TM
HEXFET
廬
MOSFET
technology provides high performance power MOSFETs
for space applications. This technology has over a de-
cade of proven performance and reliability in satellite
applications. These devices have been characterized
for both Total Dose and Single Event Effects (SEE). The
combination of low R
DS(on)
and low gate charge reduces
the power losses in switching applications such as DC
to DC converters and motor control. These devices re-
tain all of the well established advantages of MOSFETs
such as voltage control, fast switching, ease of parallel-
ing and temperature stability of electrical parameters.
Features:
n
n
n
n
n
n
n
n
n
n
Single Event Effect (SEE) Hardened
Low R
DS(on)
Low Total Gate Charge
Proton Tolerant
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Ceramic Package
Surface Mount
Light Weight
Absolute Maximum Ratings (Per Die)
Parameter
ID @ VGS = 12V, TC = 25擄C
ID @ VGS = 12V, TC = 100擄C
IDM
PD @ TC = 25擄C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
鉃€
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
鉃?/div>
Avalanche Current
鉃€
Repetitive Avalanche Energy
鉃€
Peak Diode Recovery dv/dt
鉃?/div>
Operating Junction
Storage Temperature Range
Pckg. Mounting Surface Temp.
Weight
For footnotes refer to the last page
300 (for 5s)
0.89 (Typical)
3.0
1.9
12
12
0.1
鹵20
85
3.0
1.2
3.0
-55 to 150
Pre-Irradiation
Units
A
W
W/擄C
V
mJ
A
mJ
V/ns
o
C
g
www.irf.com
1
12/27/00
