IR6226
INTELLIGENT HIGH SIDE MOSFET POWER SWITCH
Features
路
路
路
路
路
路
路
路
路
路
PWM Current Limit for Short Circuit Protection
Over-Temperature Protection
Active Output Negative Clamp
Reverse Battery Protection
Broken Ground Protection
Short to VCC Protection
Low Noise Charge Pump
Sleep Mode Supply Current
4kV ESD Protection On All Pins
Logic Ground Isolated From Power Ground
鈥?/div>
鈥?/div>
V
cc(op)
R
ds(on)
I
lim
T
j(sd)
E
av
Applications
Solenoid Driver
DC Motor Driver
5v-50v
100m
鈩?/div>
20A
170擄C
200mJ
General Description:
The IR6226 is a 5 terminal monolithic HIGH SIDE SWITCH
with built in short circuit, over- temperature, ESD, inductive load
turn off capability and diagnostic feedback.
The on-chip protection circuit goes into PWM mode, limiting the
average current during short circuit if the drain current exceeds
5A. The protection circuit latches off the high side switch if the
junction temperature exceeds 170擄C and latches on after the junc-
tion temperature falls by 10擄C. The drain to source voltage is
actively clamped at 55V, improving its performance during turn
off with inductive loads.
The on-chip charge pump high side driver stage is floating and ref-
erenced to the source of the power MOSFET. Thus the logic to
power ground isolation can be as high as 50V. This allows opera-
tion with larger offset as well as controlling the switch during
load energy recirculation or regeneration.
A diagnostic pin is provided for status feedback of short circuit,
over temperature and open load detection.
Truth Table
Condition
Normal
Normal
Output Open
Output Open
Shorted Output
Shorted Output
Over-Temperature
Over-Temperature
In
H
L
H
L
L
H
L
Out
H
L
H
H
L
L
L
Dg
H
L
H
H
L
L
L
L
H Current-Limiting
Block Diagram
Available Packages
IR6226

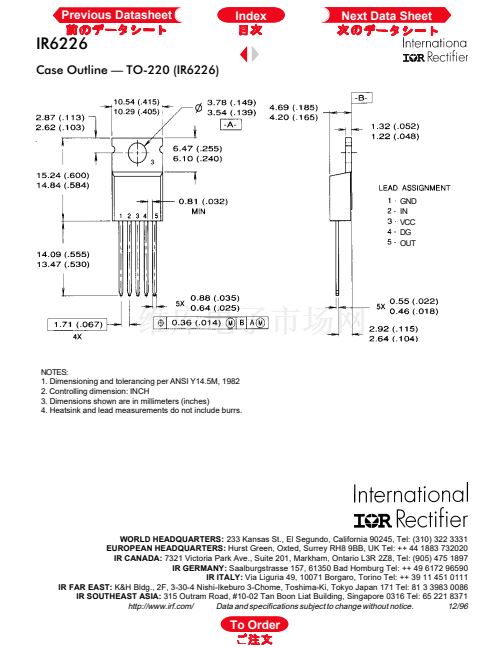

TO-220
(5-lead)
To Order

IR6226 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - MOSFET，電橋驅動器 - 內部開關

  • -

  • 高端

  • 非反相

  • 1

  • 80 毫歐

  • -

  • 20A

  • 5 V ~ 35 V

  • -40°C ~ 150°C

  • 通孔

  • TO-220-5

  • TO-220AB（5-LEAD）

  • 管件

  • *IR6226
