IR2137Q Datasheet

  • IR2137Q

  • AC Motor Controller/Driver

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

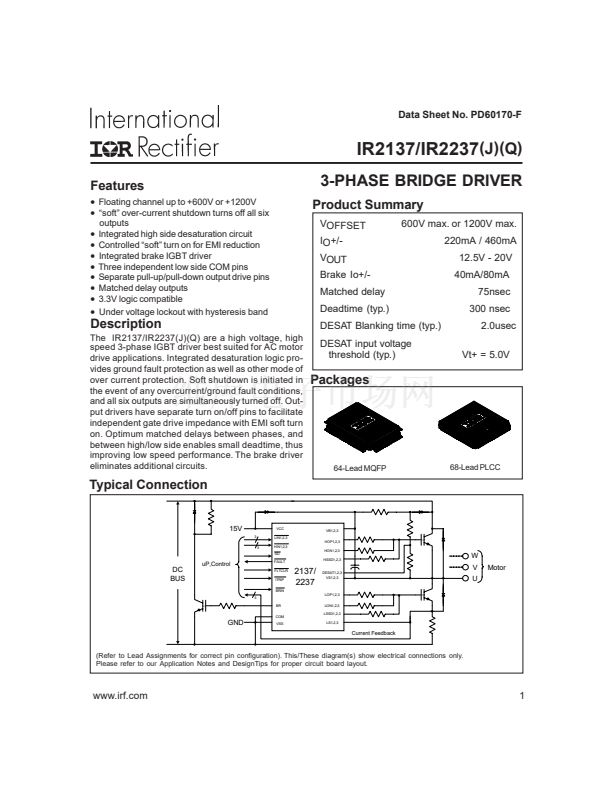

Data Sheet No. PD60170-F
IR2137/IR2237
(J)(Q)
Features
鈥?/div>
Floating channel up to +600V or +1200V
鈥?/div>
鈥渟oft鈥?over-current shutdown turns off all six
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
outputs
Integrated high side desaturation circuit
Controlled 鈥渟oft鈥?turn on for EMI reduction
Integrated brake IGBT driver
Three independent low side COM pins
Separate pull-up/pull-down output drive pins
Matched delay outputs
3.3V logic compatible
Under voltage lockout with hysteresis band
3-PHASE BRIDGE DRIVER
Product Summary
VOFFSET
IO+/-
VOUT
Brake Io+/-
Matched delay
Deadtime (typ.)
DESAT Blanking time (typ.)
DESAT input voltage
threshold (typ.)
600V max. or 1200V max.
220mA / 460mA
12.5V - 20V
40mA/80mA
75nsec
300 nsec
2.0usec
Vt+ = 5.0V
Description
The IR2137/IR2237(J)(Q) are a high voltage, high
speed 3-phase IGBT driver best suited for AC motor
drive applications. Integrated desaturation logic pro-
vides ground fault protection as well as other mode of
over current protection. Soft shutdown is initiated in
the event of any overcurrent/ground fault conditions,
and all six outputs are simultaneously turned off. Out-
put drivers have separate turn on/off pins to facilitate
independent gate drive impedance with EMI soft turn
on. Optimum matched delays between phases, and
between high/low side enables small deadtime, thus
improving low speed performance. The brake driver
eliminates additional circuits.

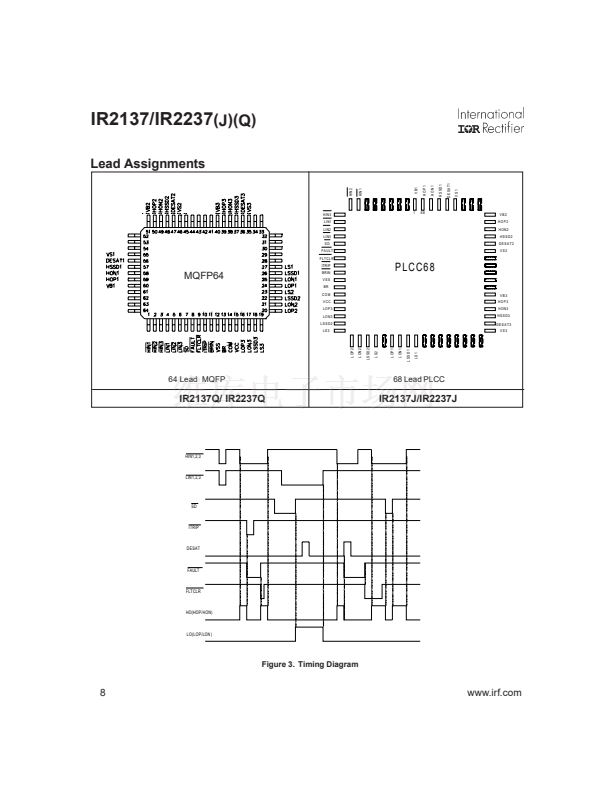

Packages

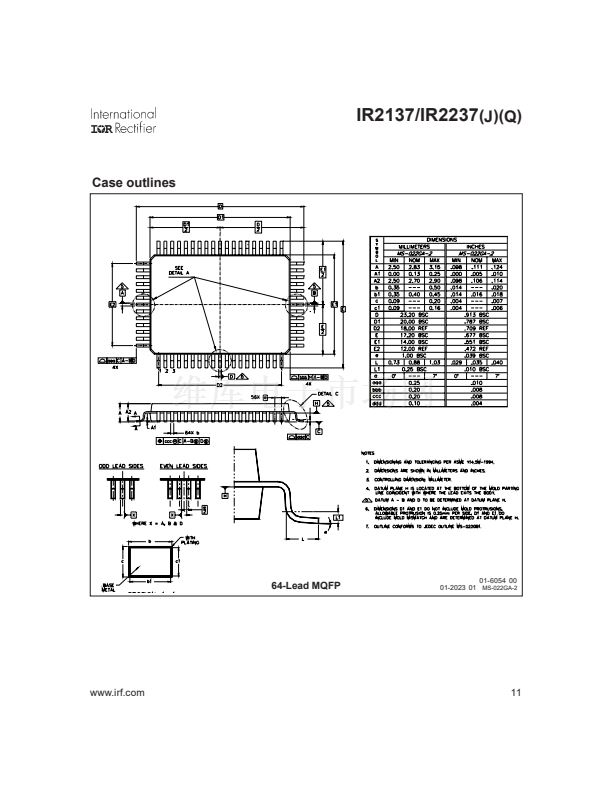

64-Lead MQFP

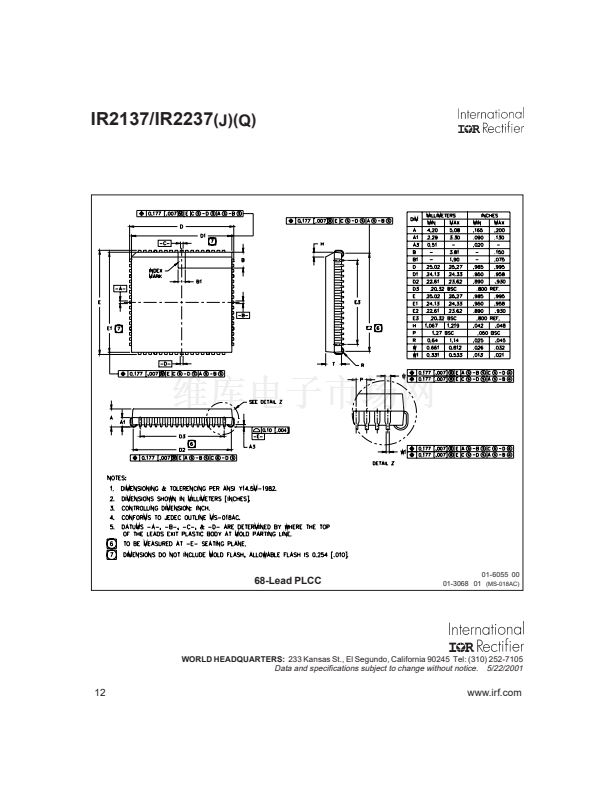

68-Lead PLCC
Typical Connection
15V
3
3
VCC
LIN1,2,3
VB1,2,3
HOP1,2,3
HIN1,2,3
HON1,2,3
SD
FAULT
FLTCLR
ITRIP
BRIN
HSSD1,2,3
W
V
Motor
U
uP,Control
DC
BUS
3
2137/
2237
DESAT1,2,3
VS1,2,3
LOP1,2,3
BR
COM
LON1,2,3
LSSD1,2,3
LS1,2,3
GND
VSS
Current Feedback
(Refer to Lead Assignments for correct pin configuration). This/These diagram(s) show electrical connections only.
Please refer to our Application Notes and DesignTips for proper circuit board layout.
www.irf.com
1

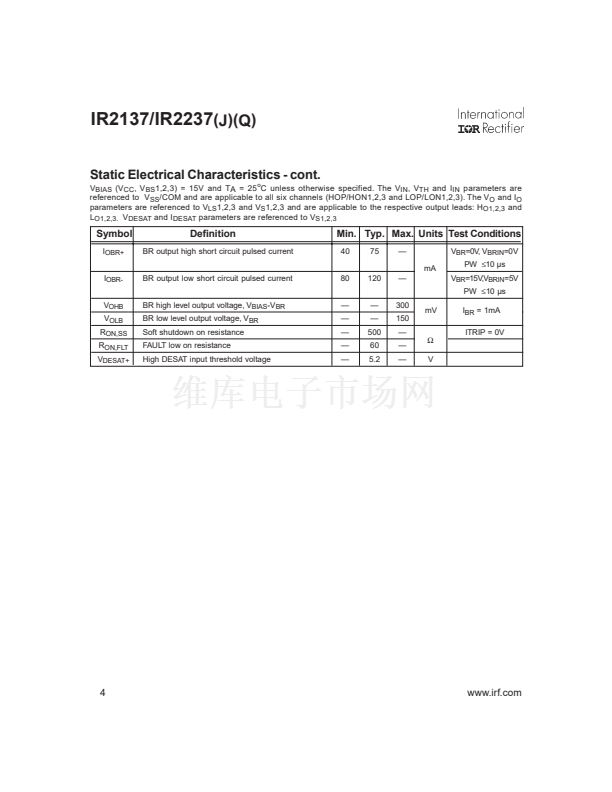

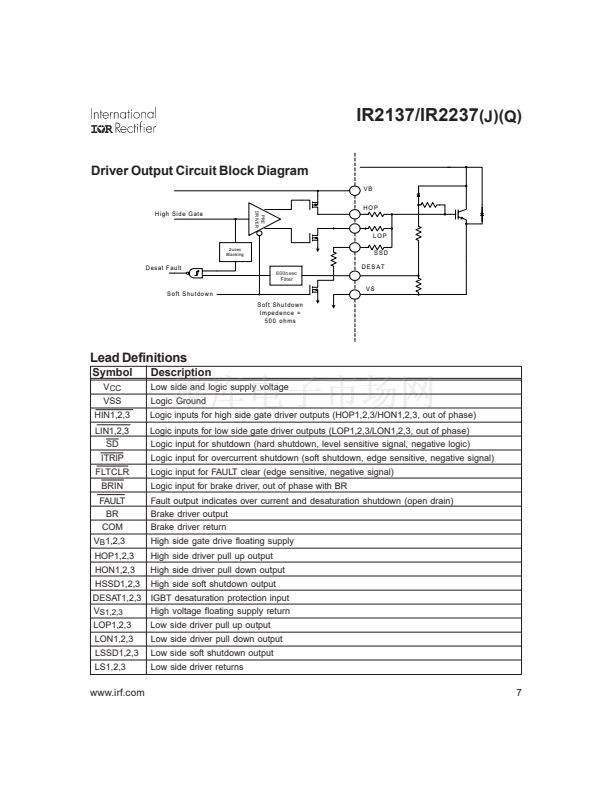

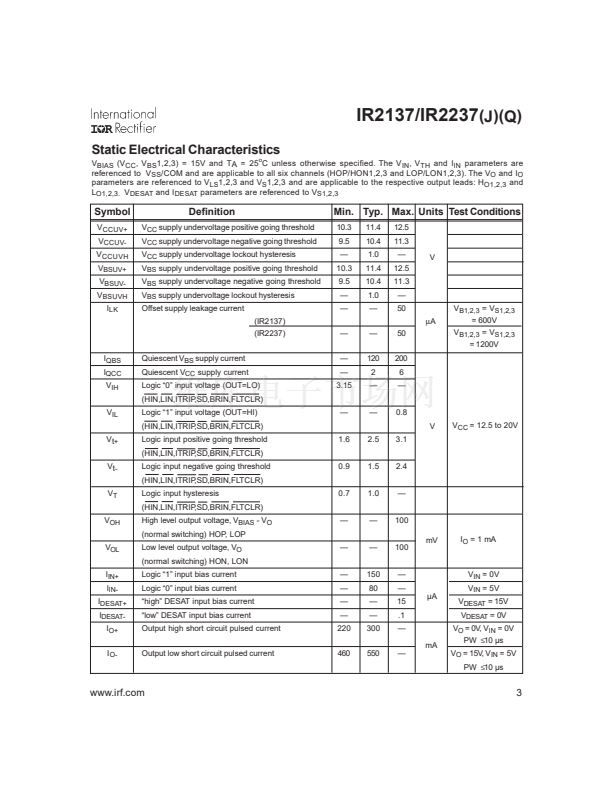

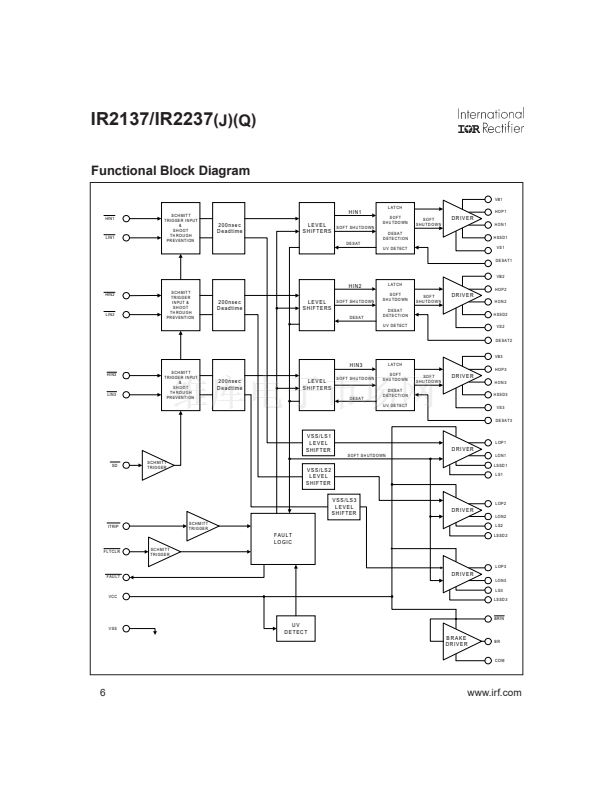

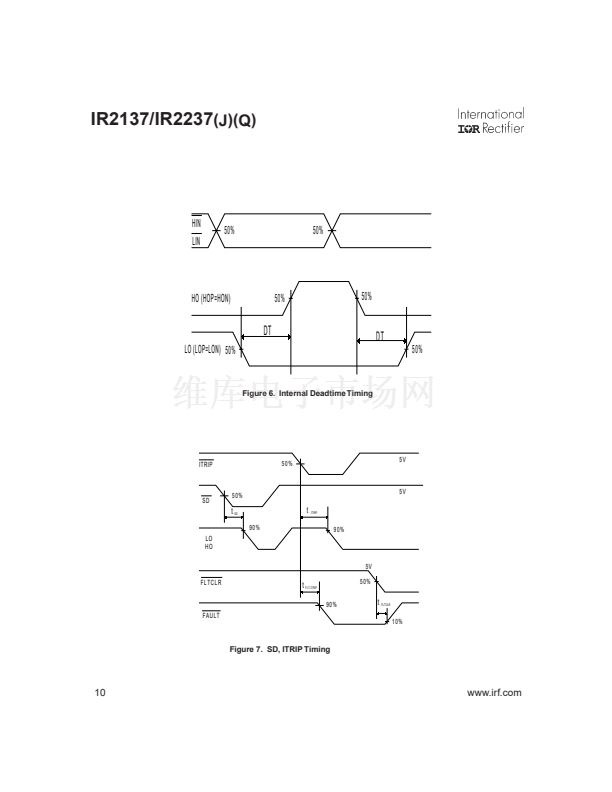

IR2137Q 產品屬性

  • 0現貨

  • 停產

  • -

  • 托盤

  • 停產

  • Not Verified

  • 半橋

  • 3 相

  • 3

  • IGBT

  • 12.5V ~ 20V

  • -

  • -

  • 反相

  • 600 V

  • 115ns，25ns

  • -40°C ~ 150°C（TJ）

  • 表面貼裝型

  • 64-BQFP

  • 64-MQFP（20x14）
