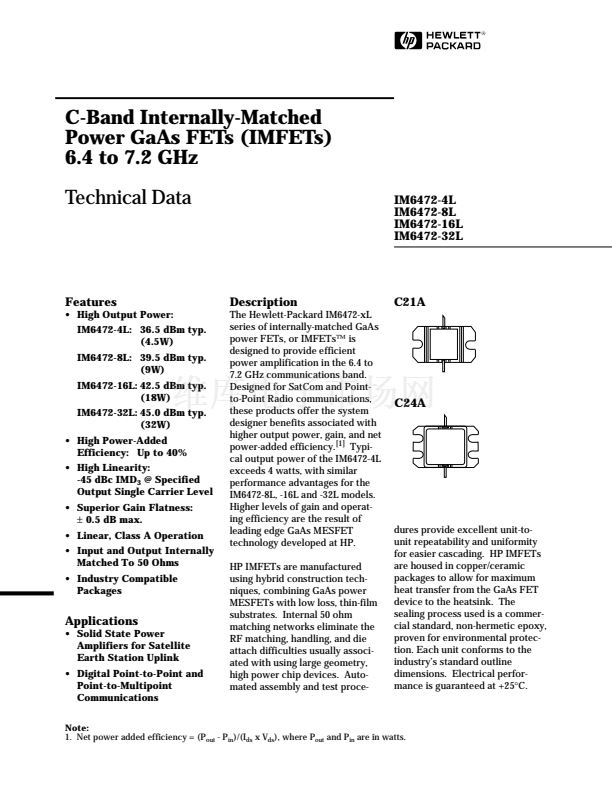

C-Band Internally-Matched
Power GaAs FETs (IMFETs)
6.4 to 7.2 GHz
Technical Data
IM6472-4L
IM6472-8L
IM6472-16L
IM6472-32L
Features
鈥?High Output Power:
IM6472-4L: 36.5 dBm typ.
(4.5W)
IM6472-8L: 39.5 dBm typ.
(9W)
IM6472-16L: 42.5 dBm typ.
(18W)
IM6472-32L: 45.0 dBm typ.
(32W)
鈥?High Power-Added
Efficiency: Up to 40%
鈥?High Linearity:
-45 dBc IMD
3
@ Specified
Output Single Carrier Level
鈥?Superior Gain Flatness:
鹵
0.5 dB max.
鈥?Linear, Class A Operation
鈥?Input and Output Internally
Matched To 50 Ohms
鈥?Industry Compatible
Packages
Description
The Hewlett-Packard IM6472-xL
series of internally-matched GaAs
power FETs, or IMFETs鈩?is
designed to provide efficient
power amplification in the 6.4 to
7.2 GHz communications band.
Designed for SatCom and Point-
to-Point Radio communications,
these products offer the system
designer benefits associated with
higher output power, gain, and net
power-added efficiency.
[1]
Typi-
cal output power of the IM6472-4L
exceeds 4 watts, with similar
performance advantages for the
IM6472-8L, -16L and -32L models.
Higher levels of gain and operat-
ing efficiency are the result of
leading edge GaAs MESFET
technology developed at HP.
HP IMFETs are manufactured
using hybrid construction tech-
niques, combining GaAs power
MESFETs with low loss, thin-film
substrates. Internal 50 ohm
matching networks eliminate the
RF matching, handling, and die
attach difficulties usually associ-
ated with using large geometry,
high power chip devices. Auto-
mated assembly and test proce-

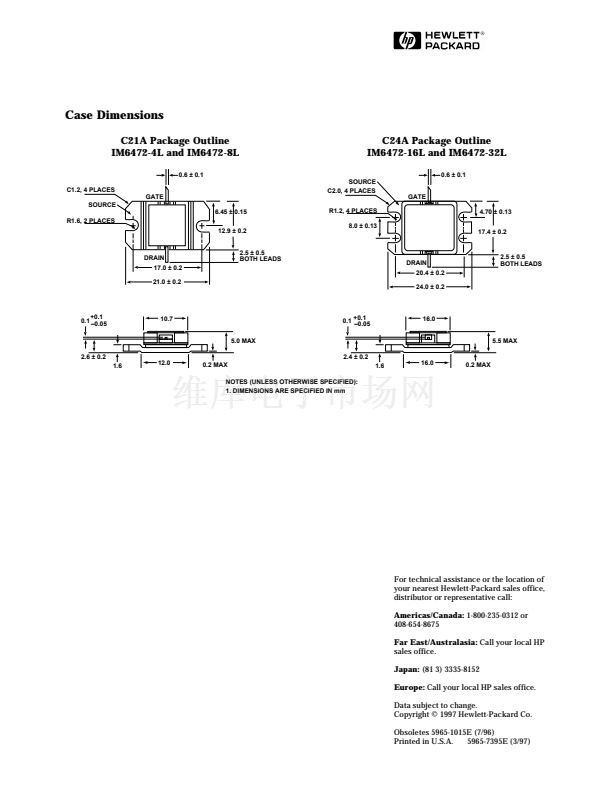

C21A
C24A
Applications
鈥?Solid State Power
Amplifiers for Satellite
Earth Station Uplink
鈥?Digital Point-to-Point and
Point-to-Multipoint
Communications
dures provide excellent unit-to-
unit repeatability and uniformity
for easier cascading. HP IMFETs
are housed in copper/ceramic
packages to allow for maximum
heat transfer from the GaAs FET
device to the heatsink. The
sealing process used is a commer-
cial standard, non-hermetic epoxy,
proven for environmental protec-
tion. Each unit conforms to the
industry鈥檚 standard outline
dimensions. Electrical perfor-
mance is guaranteed at +25擄C.
Note:
1. Net power added efficiency = (P
out
- P
in
)/(I
ds
x V
ds
), where P
out
and P
in
are in watts.
