ILA1062/ILA1062A

T

ELEPHONE SPEECH NETWORK WITH DIALER INTERFACE

DESCRIPTION

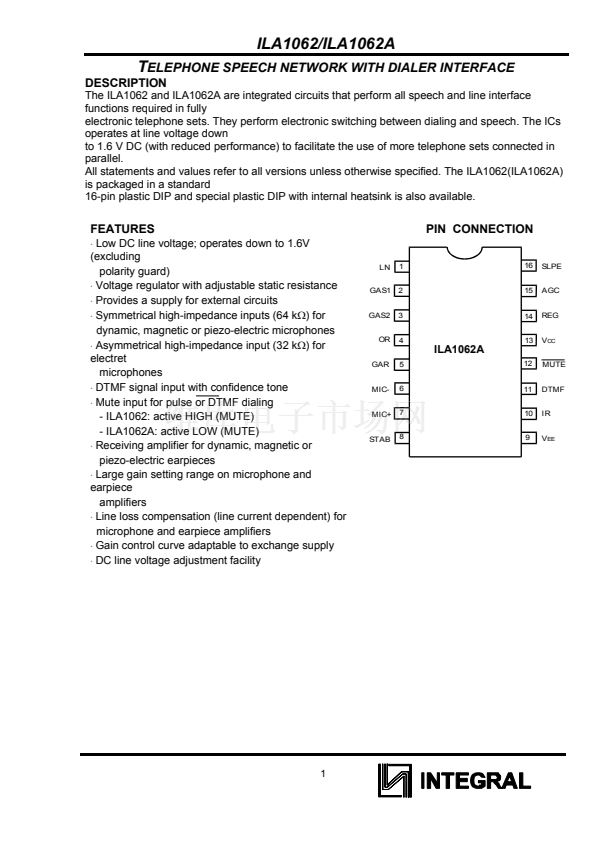

The ILA1062 and ILA1062A are integrated circuits that perform all speech and line interface

functions required in fully

electronic telephone sets. They perform electronic switching between dialing and speech. The ICs

operates at line voltage down

to 1.6 V DC (with reduced performance) to facilitate the use of more telephone sets connected in

parallel.

All statements and values refer to all versions unless otherwise specified. The ILA1062(ILA1062A)

is packaged in a standard

16-pin plastic DIP and special plastic DIP with internal heatsink is also available.

FEATURES

Low DC line voltage; operates down to 1.6V

(excluding

polarity guard)

路

Voltage regulator with adjustable static resistance

路

Provides a supply for external circuits

路

Symmetrical high-impedance inputs (64 k鈩? for

dynamic, magnetic or piezo-electric microphones

路

Asymmetrical high-impedance input (32 k鈩? for

electret

microphones

路

DTMF signal input with confidence tone

路

Mute input for pulse or DTMF dialing

- ILA1062: active HIGH (MUTE)

- ILA1062A: active LOW (MUTE)

路

Receiving amplifier for dynamic, magnetic or

piezo-electric earpieces

路

Large gain setting range on microphone and

earpiece

amplifiers

路

Line loss compensation (line current dependent) for

microphone and earpiece amplifiers

路

Gain control curve adaptable to exchange supply

路

DC line voltage adjustment facility

路

LN

1

PIN CONNECTION

16

15

14

13

12

11

10

9

SLPE

AGC

REG

V

CC

MUTE

DTMF

IR

V

EE

GAS1 2

GAS2

OR

GAR

MIC-

MIC+

STAB

3

4

5

6

7

8

ILA1062A

BT1062A

1
