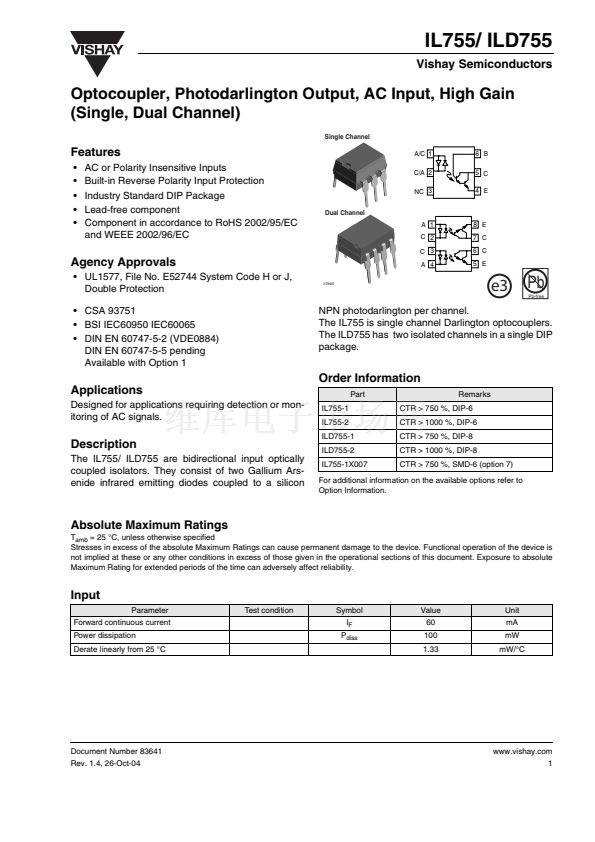

IL755/ ILD755
Vishay Semiconductors
Optocoupler, Photodarlington Output, AC Input, High Gain
(Single, Dual Channel)
Single Channel
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
AC or Polarity Insensitive Inputs
Built-in Reverse Polarity Input Protection
Industry Standard DIP Package
Lead-free component
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
A/C 1
C/A 2
NC 3
Dual Channel
A 1
C 2
C 3
6 B
5 C
4 E
8 E
7 C
6 C
5 E
Agency Approvals
鈥?UL1577, File No. E52744 System Code H or J,
Double Protection
鈥?CSA 93751
鈥?BSI IEC60950 IEC60065
鈥?DIN EN 60747-5-2 (VDE0884)
DIN EN 60747-5-5 pending
Available with Option 1
i179037
A 4
e3
Pb
Pb-free
NPN photodarlington per channel.
The IL755 is single channel Darlington optocouplers.
The ILD755 has two isolated channels in a single DIP
package.
Order Information
Applications
Designed for applications requiring detection or mon-
itoring of AC signals.
IL755-1
IL755-2
ILD755-1
ILD755-2
IL755-1X007
Part
Remarks
CTR > 750 %, DIP-6
CTR > 1000 %, DIP-6
CTR > 750 %, DIP-8
CTR > 1000 %, DIP-8
CTR > 750 %, SMD-6 (option 7)
Description
The IL755/ ILD755 are bidirectional input optically
coupled isolators. They consist of two Gallium Ars-
enide infrared emitting diodes coupled to a silicon
For additional information on the available options refer to
Option Information.
Absolute Maximum Ratings
T
amb
= 25 擄C, unless otherwise specified
Stresses in excess of the absolute Maximum Ratings can cause permanent damage to the device. Functional operation of the device is
not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
Maximum Rating for extended periods of the time can adversely affect reliability.
Input
Parameter
Forward continuous current
Power dissipation
Derate linearly from 25 擄C
Test condition
Symbol
I
F
P
diss
Value
60
100
1.33
Unit
mA
mW
mW/擄C
Document Number 83641
Rev. 1.4, 26-Oct-04
www.vishay.com
1

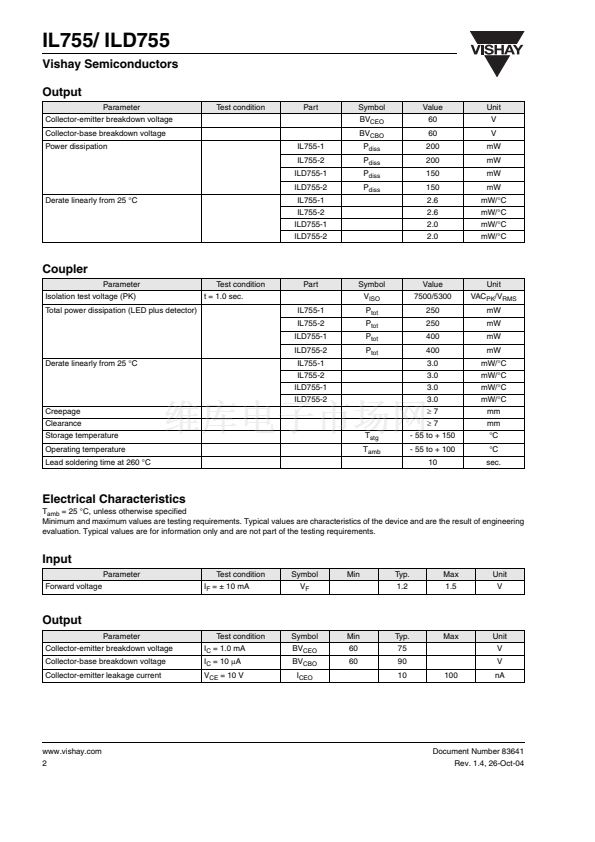

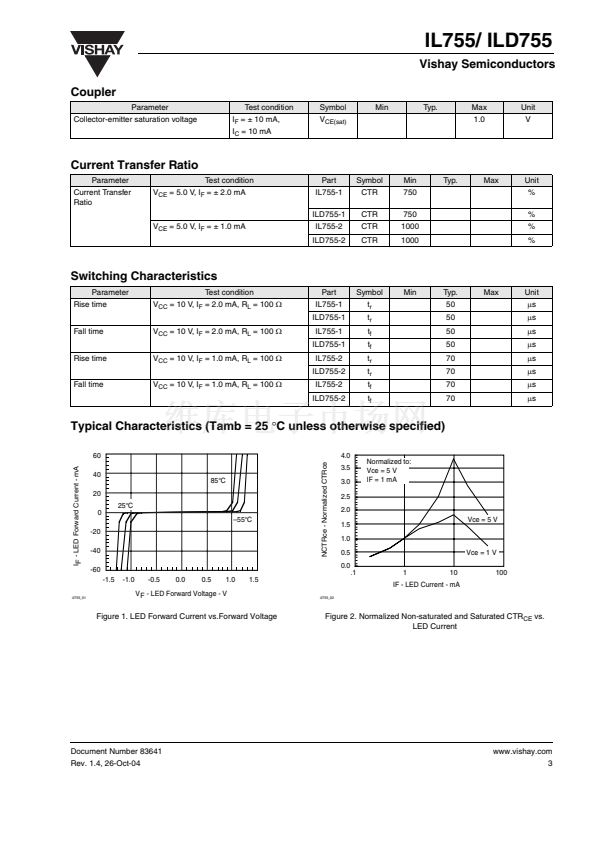

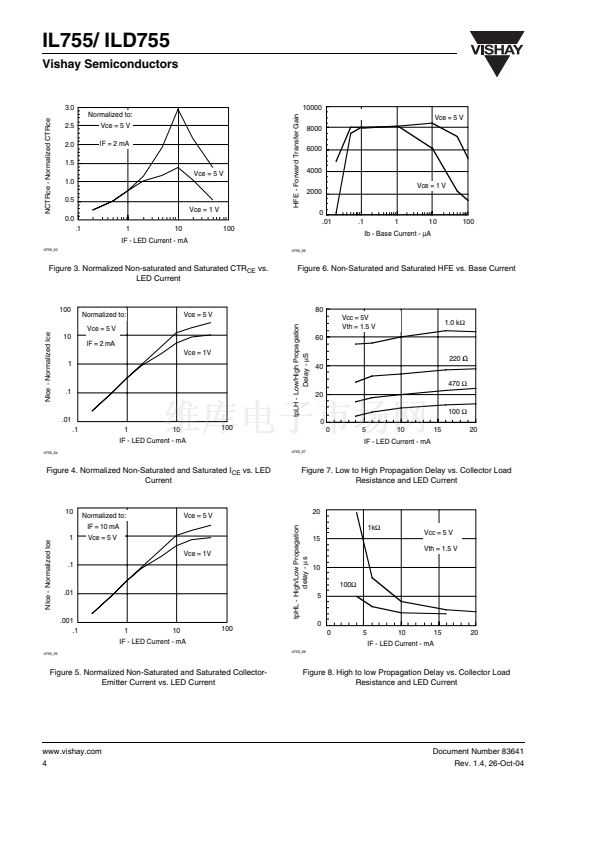

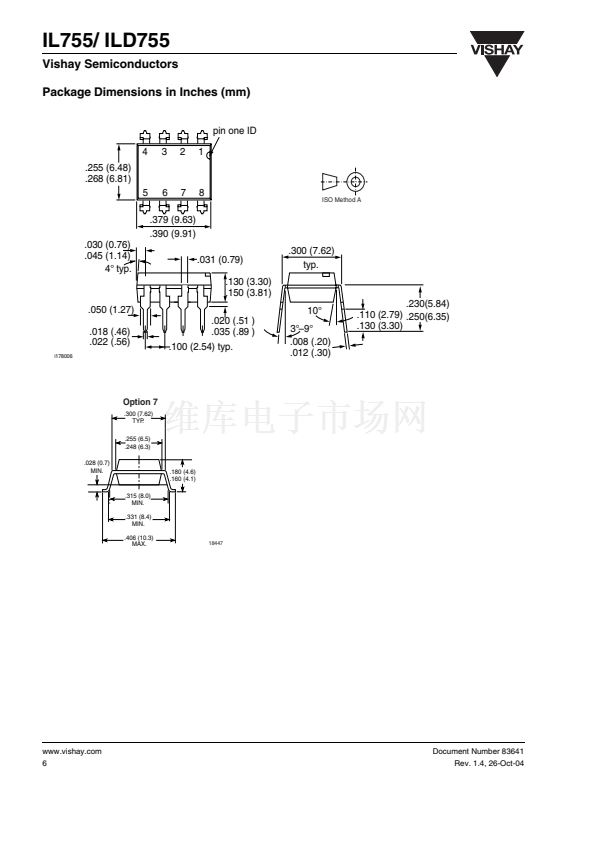

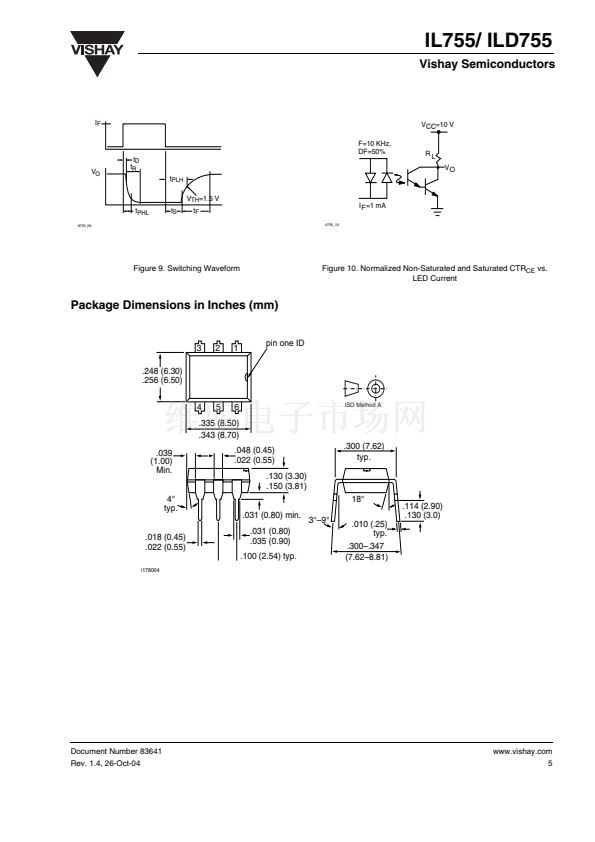

IL755-1 產品屬性

  • Vishay

  • 晶體管輸出光電耦合器

  • 1 Channel

  • AC

  • 60 V

  • 1 V

  • 5300 Vrms

  • 1.5 V

  • 250 mW

  • + 100 C

  • - 55 C

  • PDIP-6

  • Tube

  • 60 mA

  • Photodarlington

  • DC

  • 2000
