IDT6198L35YB Datasheet

IC型號：
IDT6198L35YB
PDF描述：
CMOS STATIC RAM 64K (16K x 4-BIT) with Output Control
文件大小：
83.44KB
PDF頁數：
8頁
芯片廠家：
IDT

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

CMOS STATIC RAM

64K (16K x 4-BIT)

with Output Control

IDT6198S

IDT6198L

Integrated Device Technology, Inc.

FEATURES:

鈥?High-speed (equal access and cycle times)

鈥?Military: 20/25/35/45/55/70/85ns (max.)

鈥?Commercial: 15/20/25/35ns (max.)

鈥?Output Enable (

) pin available for added system flexibility

鈥?Low-power consumption

鈥?JEDEC compatible pinout

鈥?Battery back-up operation鈥?V data retention (L version

only)

鈥?24-pin CERDIP, high-density 28-pin leadless chip carrier,

and 24-pin SOJ

鈥?Produced with advanced CMOS technology

鈥?Bidirectional data inputs and outputs

鈥?Military product compliant to MIL-STD-883, Class B

DESCRIPTION:

The IDT6198 is a 65,536-bit high-speed static RAM orga-

nized as 16K x 4. It is fabricated using IDT鈥檚 high-perfor-

mance, high-reliability technology鈥擟MOS. This state-of-the-

art technology, combined with innovative circuit design tech-

niques, provides a cost-effective approach for memory inten-

sive applications. Timing parameters have been specified to

meet the speed demands of the IDT79R3000 RISC proces-

sors.

Access times as fast as 15ns are available. The IDT6198

offers a reduced power standby mode, I

SB1

, which is activated

when

goes HIGH. This capability significantly decreases

system, while enhancing system reliability. The low-power

version (L) also offers a battery backup data retention capa-

bility where the circuit typically consumes only 30碌W when

operating from a 2V battery.

All inputs and outputs are TTL-compatible and operate

from a single 5V supply.

The IDT6198 is packaged in either a 24-pin 300 mil CERDIP,

28-pin leadless chip carrier or 24-pin J-bend small outline IC.

Military grade product is manufactured in compliance with

the latest revision of MIL-STD-883, Class B, making it ideally

suited to military temperature applications demanding the

highest level of performance and reliability.

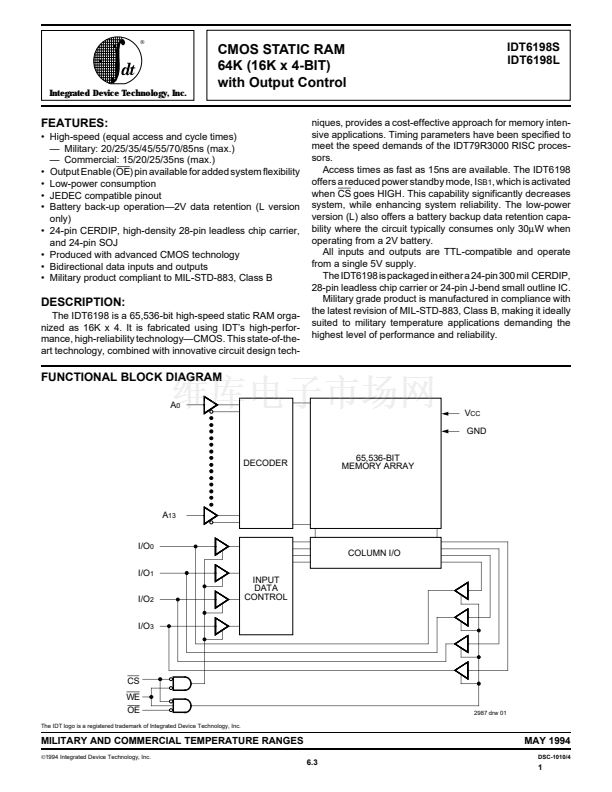

FUNCTIONAL BLOCK DIAGRAM

GND

65,536-BIT

MEMORY ARRAY

DECODER

I/O

COLUMN I/O

INPUT

DATA

CONTROL

The IDT logo is a registered trademark of Integrated Device Technology, Inc.

2987 drw 01

MILITARY AND COMMERCIAL TEMPERATURE RANGES

漏1994

Integrated Device Technology, Inc.

MAY 1994

6.3

DSC-1010/4
