ICS9107C-21CS08 Datasheet

  • ICS9107C-21CS08

  • Frequency Generator for Fibre Channel Systems

  • 154.35KB

  • 4頁

  • ICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Integrated
Circuit
Systems, Inc.
ICS9107C-21
ICS9107C-22
Preliminary Product Preview
Frequency Generator for Fibre Channel Systems

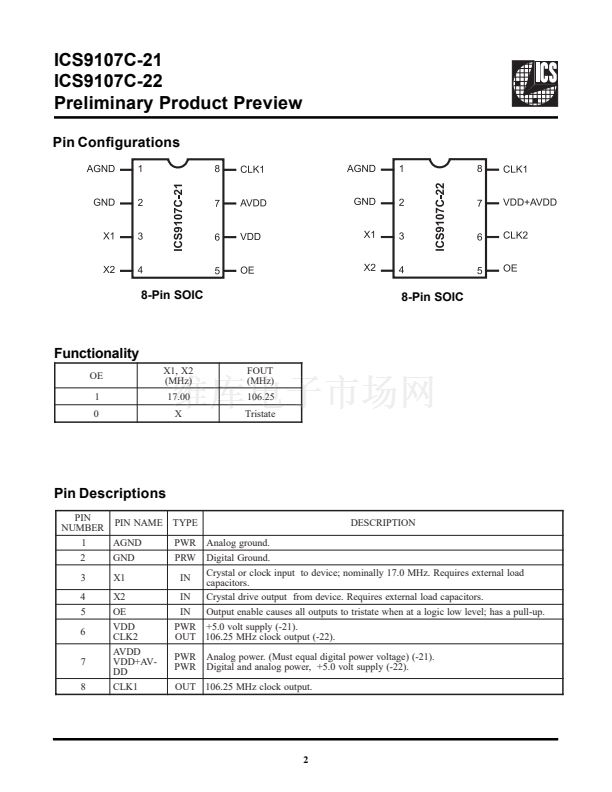

General Description
The
ICS9107C-21
and
ICS9107C-22
are high-speed clock
generators designed to support fibre channel system
requirements. The
ICS9107C-21
generates a single copy of
the 106.25 MHz from a 17 MHz crystal. The
ICS9107C-22
provides a second copy of the 106.25 MHz clock with output
skew less than 鹵100ps.
An exact frequency multiplying ratio ensures better than
鹵100 ppm frequency accuracy using a standard AT crystal
with external load capacitors (typically 33pF鹵5% for an
18pF load crystal). Achieving 鹵100 ppm over four years
requires the crystal to have a 鹵20 ppm initial accuracy, 鹵30
ppm temperature and 鹵5 ppm/year aging coefficients.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Generates one or two 106.25 MHz clocks from a 17
MHz crystal
Less than 60ps one sigma jitter
Less than 鹵200ps absolute jitter
Output skew less than 鹵100ps on two channel
version (-22)
Rise/fall times less than 4ns driving 15pF
On-chip loop filter components
5.5V supply range

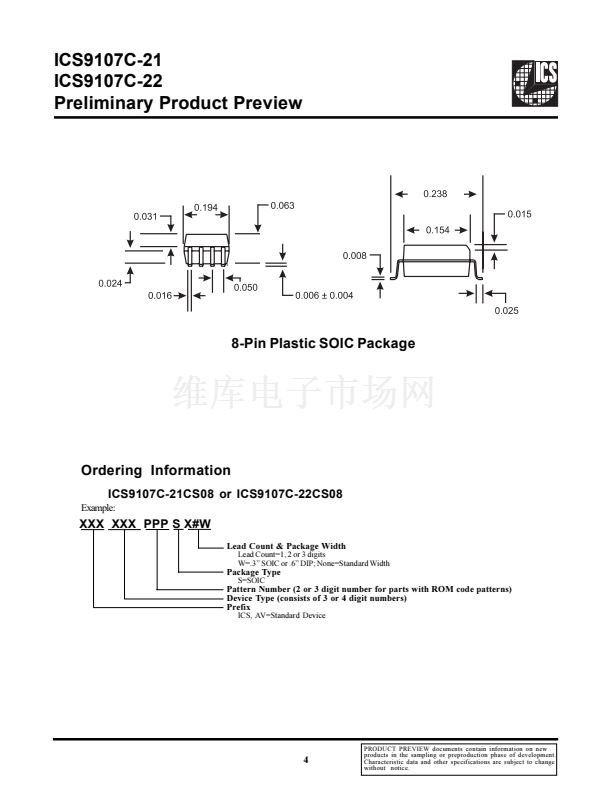

8-pin, 150-mil SOIC package
Applications
鈥?/div>
Specifically designed to support the high-speed
clocking requirements of fibre channel systems
Block Diagram
9107-21 /22 Rev C 9/14/99

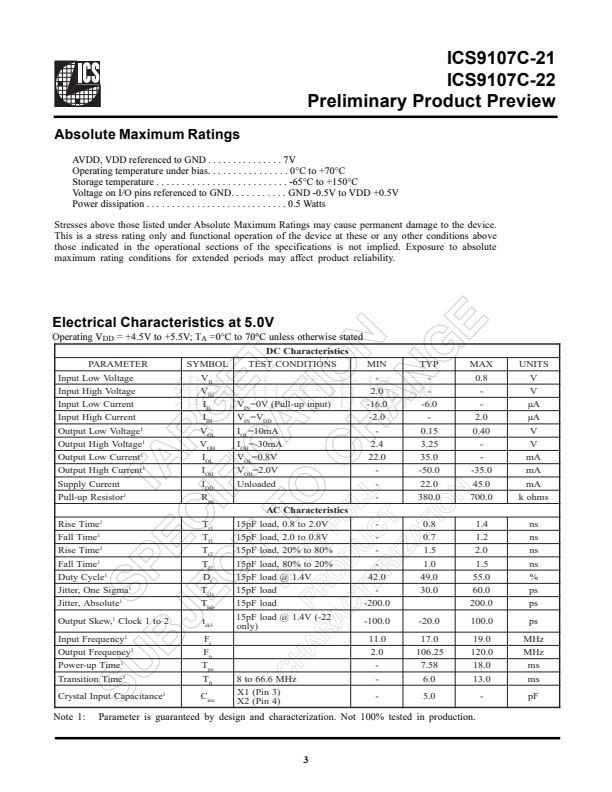

PRODUCT PREVIEW documents contain information on new
products in the sampling or preproduction phase of development.
Characteristic data and other specifications are subject to change
without notice.
