ICS843001AGT Datasheet

  • ICS843001AGT

  • FEMTO CLOCKS CRYSTAL-TO- 3.3V LVPECL CLOCK GENERATOR

  • 15頁

  • ICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

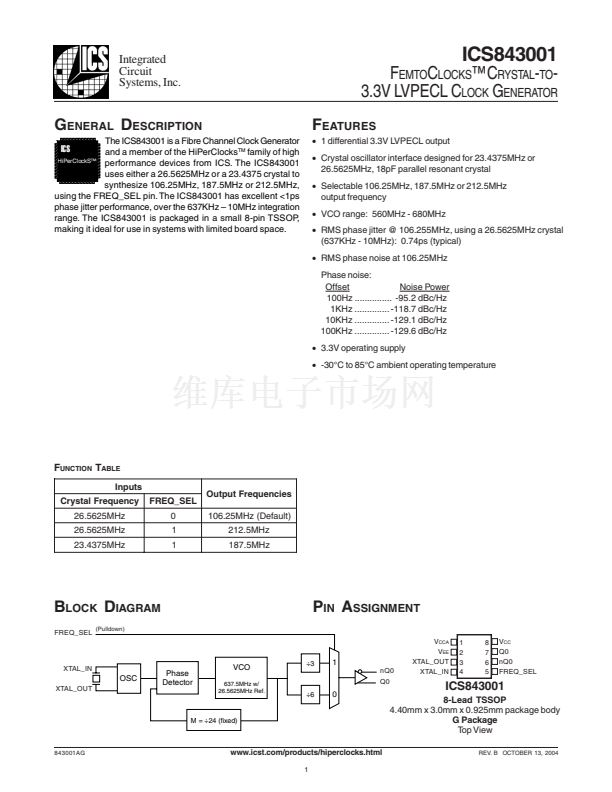

Integrated
Circuit
Systems, Inc.
ICS843001
F
EMTO
C
LOCKS
鈩?C
RYSTAL
-
TO
-
3.3V LVPECL C
LOCK
G
ENERATOR
F
EATURES
鈥?/div>
1 differential 3.3V LVPECL output
鈥?/div>
Crystal oscillator interface designed for 23.4375MHz or
26.5625MHz, 18pF parallel resonant crystal
鈥?/div>
Selectable 106.25MHz, 187.5MHz or 212.5MHz
output frequency
鈥?/div>
VCO range: 560MHz - 680MHz
鈥?/div>
RMS phase jitter @ 106.255MHz, using a 26.5625MHz crystal
(637KHz - 10MHz): 0.74ps (typical)
鈥?/div>

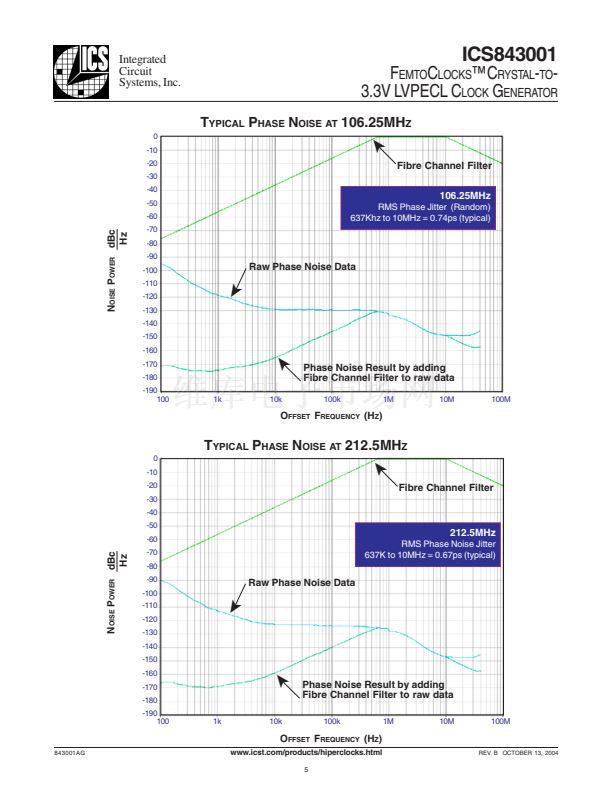

RMS phase noise at 106.25MHz
Phase noise:
Offset
Noise Power
100Hz ............... -95.2 dBc/Hz
1KHz .............. -118.7 dBc/Hz
10KHz .............. -129.1 dBc/Hz
100KHz .............. -129.6 dBc/Hz
鈥?/div>
3.3V operating supply
鈥?/div>
-30擄C to 85擄C ambient operating temperature
G
ENERAL
D
ESCRIPTION
The ICS843001 is a Fibre Channel Clock Generator
and a member of the HiPerClocks
TM
family of high
HiPerClockS鈩?/div>
performance devices from ICS. The ICS843001
uses either a 26.5625MHz or a 23.4375 crystal to
synthesize 106.25MHz, 187.5MHz or 212.5MHz,
using the FREQ_SEL pin. The ICS843001 has excellent <1ps
phase jitter performance, over the 637KHz 鈥?10MHz integration
range. The ICS843001 is packaged in a small 8-pin TSSOP,
making it ideal for use in systems with limited board space.
ICS
F
UNCTION
T
ABLE
Inputs
Crystal Frequency
26.5625MHz
26.5625MHz
23.4375MHz
FREQ_SEL
0
1
1
Output Frequencies
106.25MHz (Default)
212.5MHz
187.5MHz
B
LOCK
D
IAGRAM
FREQ_SEL
(Pulldown)
P
IN
A
SSIGNMENT
V
CCA
V
EE
XTAL_OUT
XTAL_IN
1
2
3
4
8
7
6
5
V
CC
Q0
nQ0
FREQ_SEL
XTAL_IN
OSC
XTAL_OUT
Phase
Detector
VCO
637.5MHz w/
26.5625MHz Ref.
梅3
1
nQ0
Q0
梅6
0
ICS843001
8-Lead TSSOP
4.40mm x 3.0mm x 0.925mm package body
G Package
Top View
REV. B OCTOBER 13, 2004
M = 梅24 (fixed)
843001AG
www.icst.com/products/hiperclocks.html
1
