19-0944; Rev 1; 3/99
Low-Voltage Reference
General Description
The ICL8069 is a 1.2V temperature-compensated volt-
age reference. It uses the bandgap principle to achieve
excellent stability and low noise at reverse currents down
to 50碌A(chǔ). Maxim鈥檚 ICL8069 also features excellent stabili-
ty, freedom from oscillation.
Features
o
Temperature Coefficient Guaranteed to 10ppm/擄C
max
o
Low Bias Current: 50碌A(chǔ) min
o
Low Dynamic Impedance
o
Low Reverse Voltage
o
Low Cost
ICL8069
Applications
Analog-to-Digital Converters
Digital-to-Analog Converters
Threshold Detectors
Voltage Regulators
Portable Instruments
Ordering Information
PART
ICL8069BCSA
TEMP.
RANGE
0擄C to +70擄C
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
0擄C to +70擄C
0擄C to +70擄C
PIN-
PACKAGE
8 SO
8 SO
8 SO
8 SO
TO-92
TO-92
MAX
TEMPCO
(ppm/擄C)
25
50
100
100
50
100
Typical Operating Circuit
+5V
6.8k鈩?/div>
ICL8069CCSA
ICL8069DCSA
ICL8069DESA
ICL8069CCZQ2
ICL8069DCZQ2

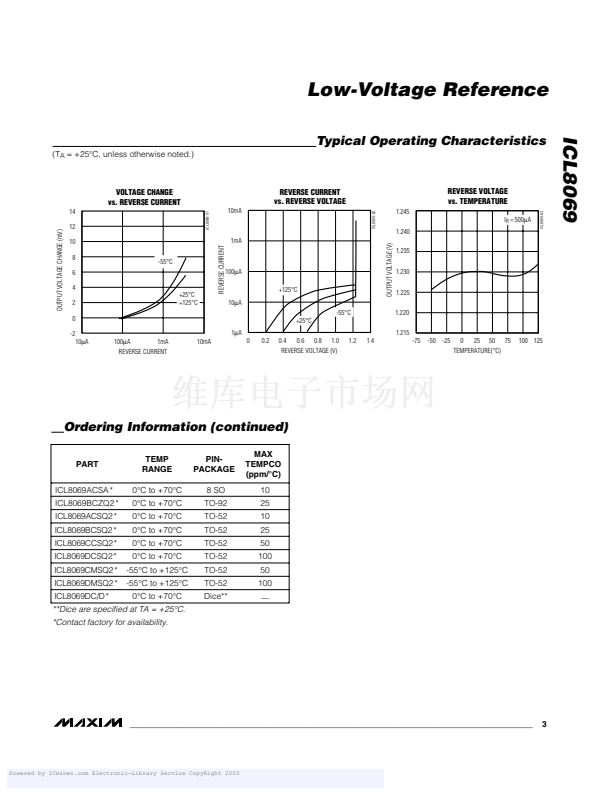

Ordering Information continued at end of data sheet.
4.7碌F
ICL8069
10k鈩?/div>
V
OUT
*See Note 3
(a) Simple Reference (1.2V or Less)
N.C. 1
+5V
2.2k鈩?/div>
N.C. 4
V
+
5
N.C.
N.C. 2
CATHODE
3
8
N.C.
N.C.
ANODE
Pin Configurations
TOP VIEW
ICL8069
7
6
SO
10k鈩?/div>
ICL8069
1k鈩?/div>
ICL7107
BOTTOM VIEW
REF HI
COMMON
REF LO
ANODE
2
1
CATHODE
1
TO-92
PLASTIC
2
(b) Double-Regulated 100mV Reference for ICL7107
One-Chip DPM Circuit
TO-52
________________________________________________________________
Maxim Integrated Products
1
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800.
For small orders, phone 1-800-835-8769.
