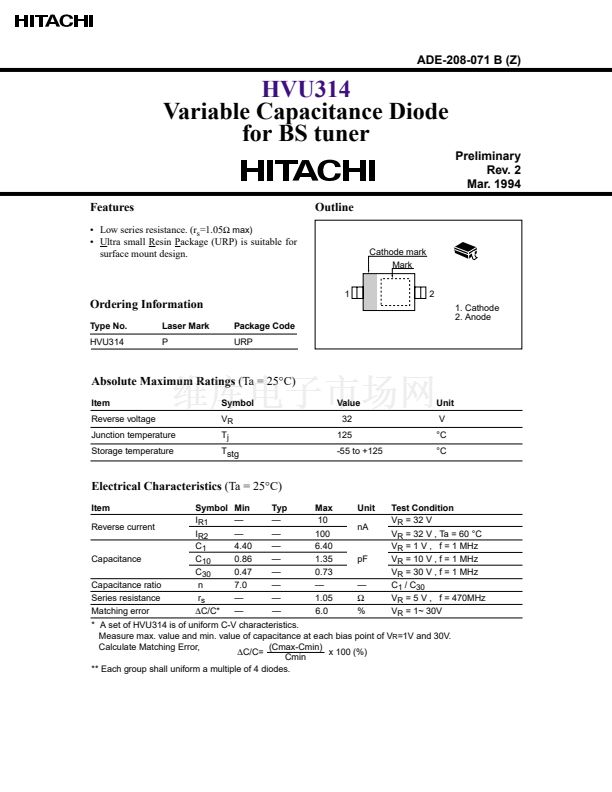

ADE-208-071 B (Z)
HVU314
Variable Capacitance Diode
for BS tuner
Preliminary
Rev. 2
Mar. 1994
Features
鈥?Low series resistance. (r
s
=1.05
鈩?/div>
max)
鈥?Ultra small Resin Package (URP) is suitable for
surface mount design.
Outline
Cathode mark
Mark
1
2
1. Cathode
2. Anode
Ordering Information
Type No.
HVU314
Laser Mark
P
Package Code
URP
Absolute Maximum Ratings
(Ta = 25擄C)
Item
Reverse voltage
Junction temperature
Storage temperature
Symbol
V
R
T
j
Tstg
Value
32
125
-55 to +125
Unit
V
擄C
擄C
Electrical Characteristics
(Ta = 25擄C)
Item
Reverse current
Symbol Min
I
R1
鈥?/div>
I
R2
C
1
C
10
C
30
n
r
s
鈭咰/C*
鈥?/div>
4.40
0.86
0.47
7.0
鈥?/div>
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Max
10
100
6.40
1.35
0.73
鈥?/div>
1.05
6.0
Unit
nA
Test Condition
V
R
= 32 V
V
R
= 32 V , Ta = 60 擄C
V
R
= 1 V , f = 1 MHz
V
R
= 10 V , f = 1 MHz
V
R
= 30 V , f = 1 MHz
C
1
/ C
30
V
R
= 5 V , f = 470MHz
V
R
= 1~ 30V
Capacitance
Capacitance ratio
Series resistance
Matching error
pF
鈥?/div>
鈩?/div>
%
* A set of HVU314 is of uniform C-V characteristics.
Measure max. value and min. value of capacitance at each bias point of V
R
=1V and 30V.
Calculate Matching Error,
(Cmax-Cmin)
鈭咰/C=
x 100 (%)
Cmin
** Each group shall uniform a multiple of 4 diodes.
