HYM72V16M656LT6-8 Datasheet

  • HYM72V16M656LT6-8

  • x64 SDRAM Module

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

16Mx64 bits
PC100 SDRAM SO DIMM
based on 16Mx16 SDRAM with LVTTL, 4 banks & 8K Refresh
HYM72V16M656T6 Series
DESCRIPTION
The HYM72V16M656T6 -Series are high speed 3.3-Volt Synchronous DRAM Modules composed of four 16Mx16 bit
Synchronous DRAMs in 54-pin TSOPII and 8-pin TSSOP 2K bit EEPROM on a 144-pin Zig Zag Dual pin glass-epoxy
printed circuit board. Three 0.1uF decoupling capacitors per each SDRAM are mounted on the module.
The HYM72V16M656T6 -Series are gold plated socket type Dual In-line Memory Modules suitable for easy interchange
and addition of 128M bytes memory. All inputs and outputs are synchronized with the rising edge of the clock input. The
data paths are internally pipelined to achieve very high bandwidth.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
PC100 support
144pin SDRAM SO DIMM

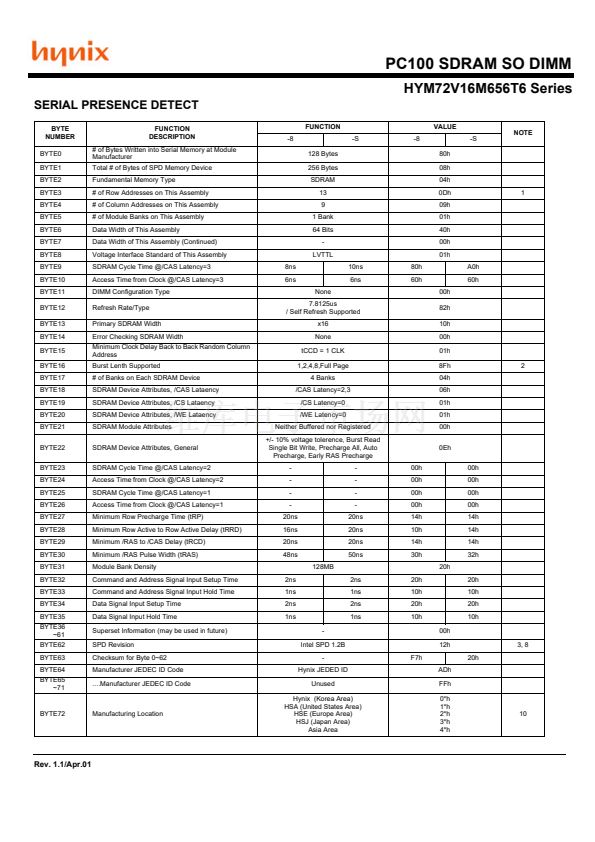

Serial Presence Detect with EEPROM
1.25鈥?(31.75mm) Height PCB with double sided com-
ponents
Single 3.3鹵0.3V power supply
- 1, 2, 4 or 8 or Full page for Sequential Burst
鈥?/div>
鈥?/div>
All device pins are compatible with LVTTL interface
- 1, 2, 4 or 8 for Interleave Burst
Data mask function by DQM
鈥?/div>
Programmable CAS Latency ; 2, 3 Clocks
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
SDRAM internal banks : four banks
Module bank : one physical bank
Auto refresh and self refresh
8192 refresh cycles / 64ms
Programmable Burst Length and Burst Type
ORDERING INFORMATION
Part No.
HYM72V16M656T6-8
HYM72V16M656T6-S
HYM72V16M656LT6-8
HYM72V16M656LT6-S
Clock
Frequency
125MHz
Internal
Bank
Ref.
Power
SDRAM
Package
Plating
Normal
100MHz
4 Banks
125MHz
Low Power
100MHz
8K
TSOP-II
Gold
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume any responsibility for use of
circuits described. No patent licenses are implied.
Rev. 1.1/Apr.01
