HYM71V75S1601TH-10S Datasheet

  • HYM71V75S1601TH-10S

  • x72 SDRAM Module

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

16Mx72 bits
PC100 SDRAM Registered DIMM
with PLL, based on 16Mx8 SDRAM with LVTTL, 4 banks & 4K Refresh
HYM71V75S1601 H-Series
DESCRIPTION

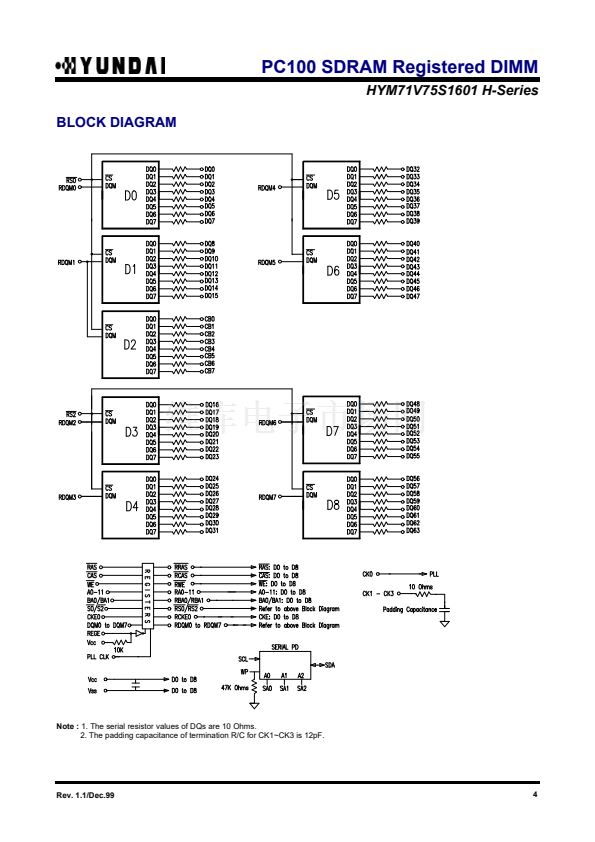

The Hyundai HYM71V75S1601 H-Series are 16Mx72bits ECC Synchronous DRAM Modules. The modules are
composed of nine 16Mx8bit CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, two 18bits driver ICs in
56pin TSSOP package, one PLL clock driver in 24pin TSSOP package and one 2Kbit EEPROM in 8pin TSSOP package

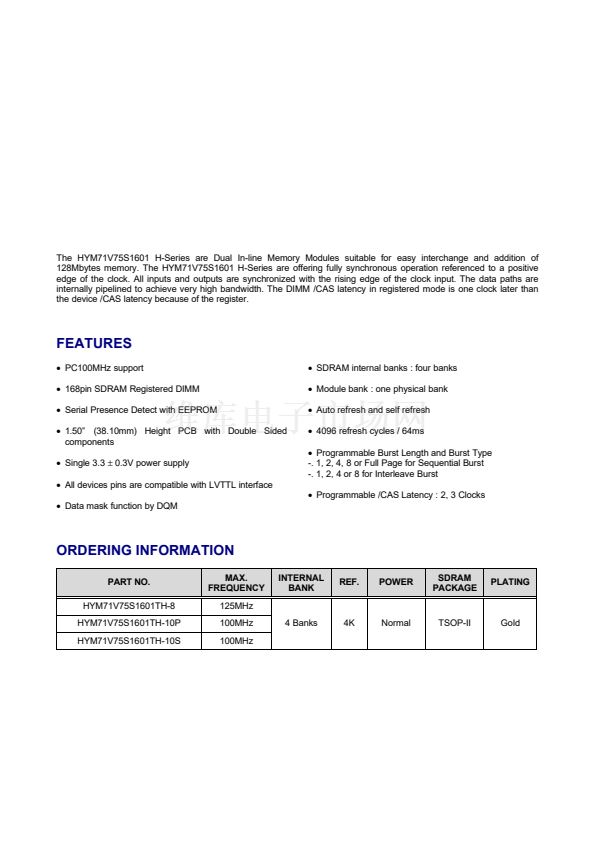

The HYM71V75S1601 H-Series are Dual In-line Memory Modules suitable for easy interchange and addition of
128Mbytes memory. The HYM71V75S1601 H-Series are offering fully synchronous operation referenced to a positive
edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are
internally pipelined to achieve very high bandwidth. The DIMM /CAS latency in registered mode is one clock later than
the device /CAS latency because of the register.
FEATURES
鈥?/div>
PC100MHz support
鈥?/div>

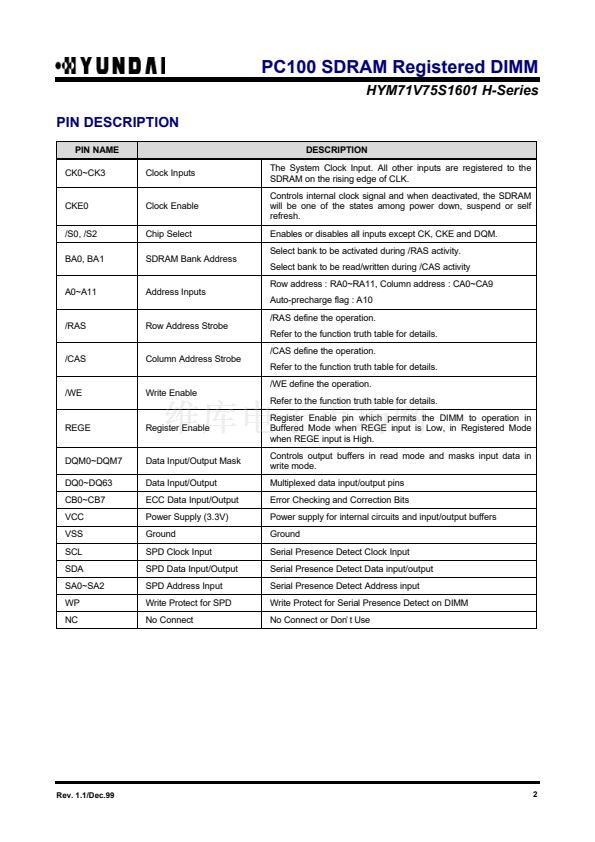

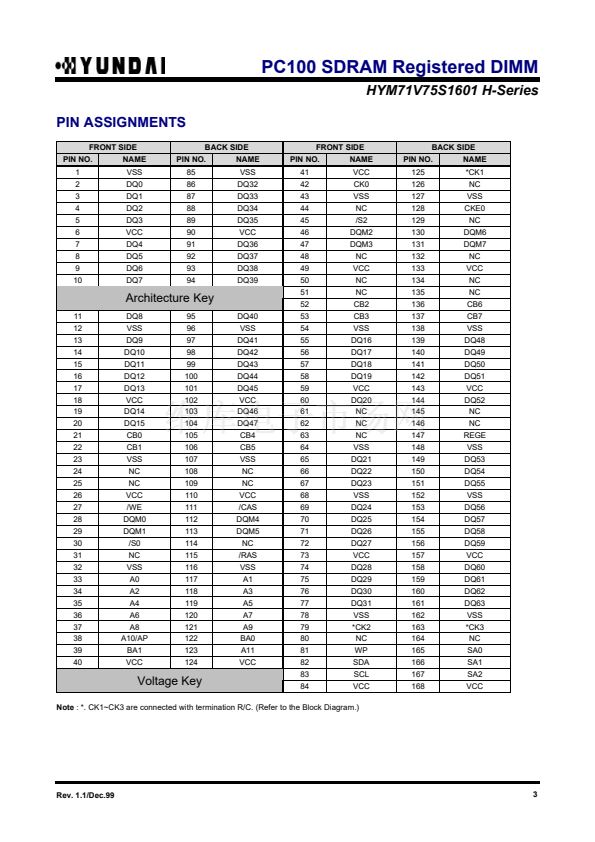

168pin SDRAM Registered DIMM
鈥?/div>

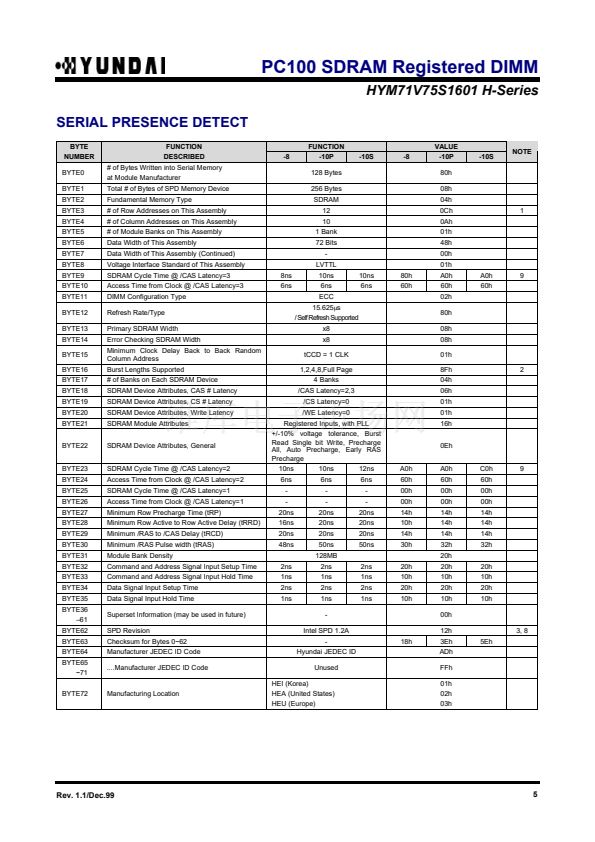

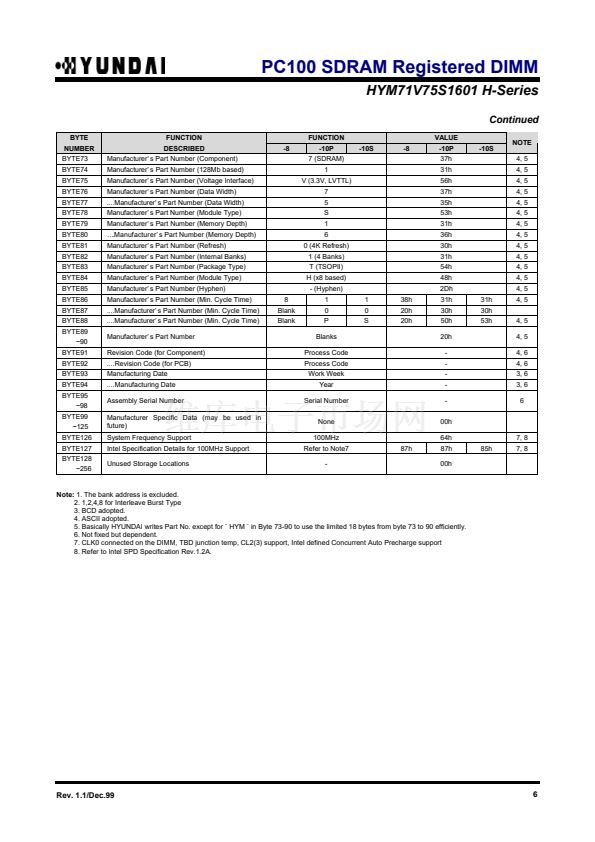

Serial Presence Detect with EEPROM
鈥?/div>
1.50鈥?(38.10mm) Height PCB with Double Sided
components
鈥?/div>

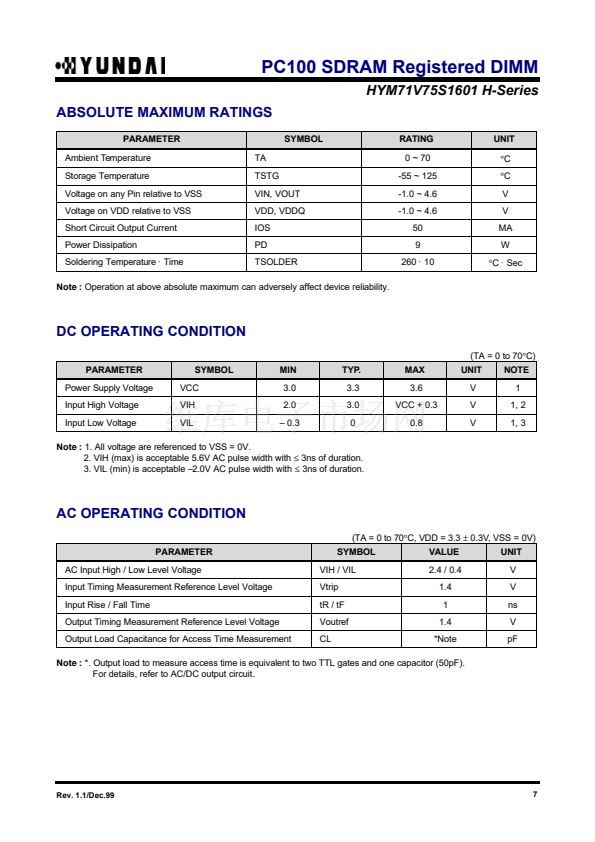

Single 3.3
鹵
0.3V power supply
鈥?/div>

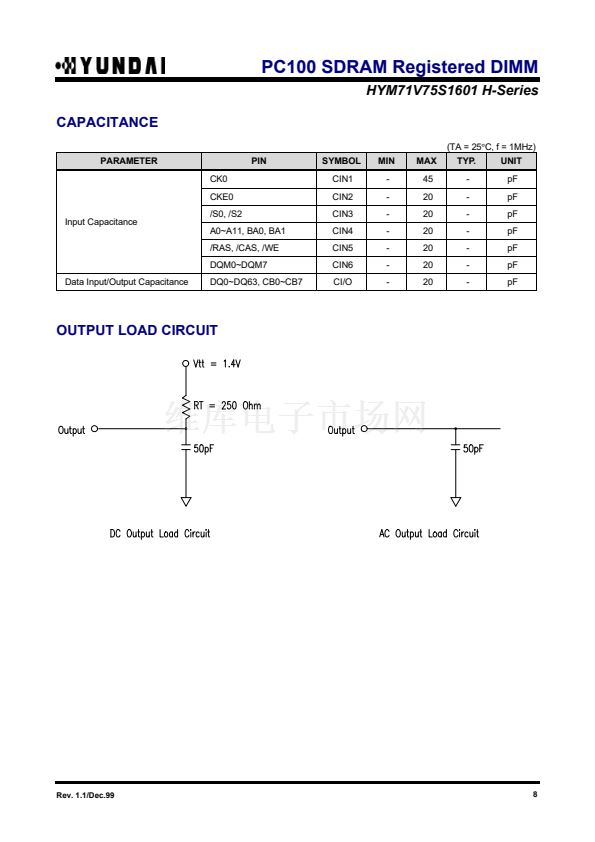

All devices pins are compatible with LVTTL interface
鈥?/div>
Data mask function by DQM
鈥?/div>
SDRAM internal banks : four banks
鈥?/div>
Module bank : one physical bank
鈥?/div>

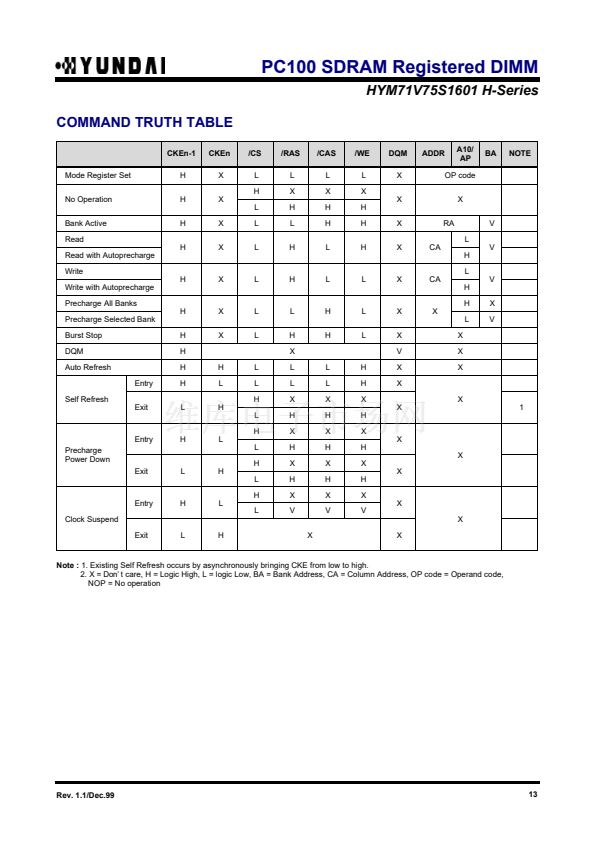

Auto refresh and self refresh
鈥?/div>
4096 refresh cycles / 64ms
鈥?/div>
Programmable Burst Length and Burst Type
-. 1, 2, 4, 8 or Full Page for Sequential Burst
-. 1, 2, 4 or 8 for Interleave Burst
鈥?/div>

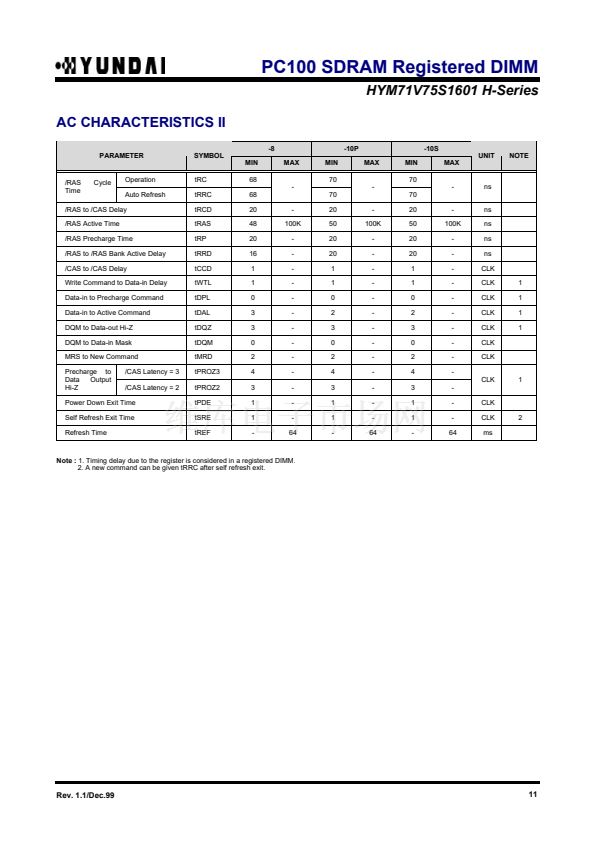

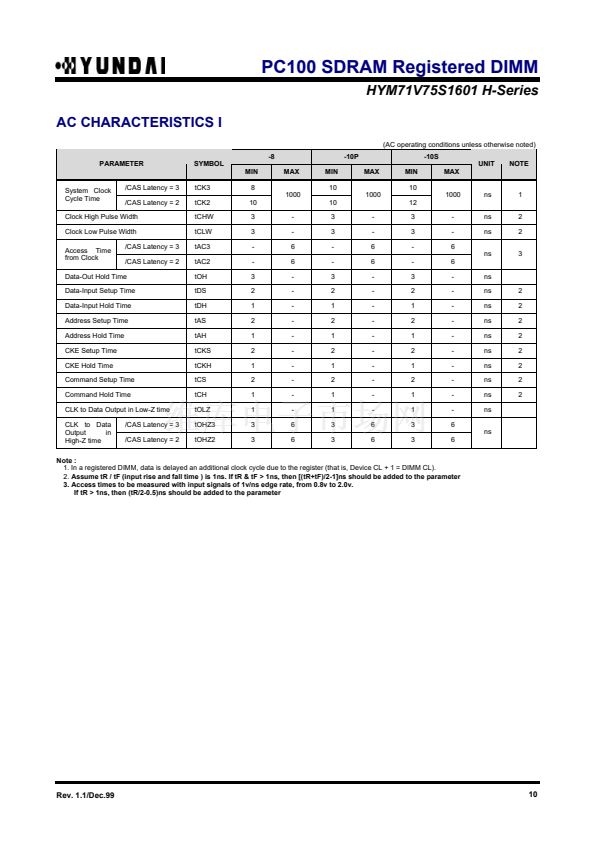

Programmable /CAS Latency : 2, 3 Clocks

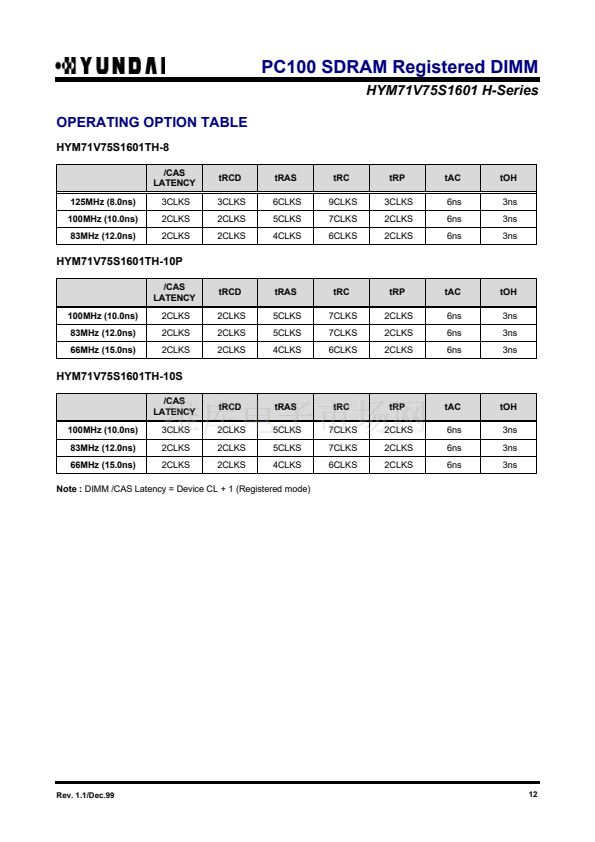

ORDERING INFORMATION
PART NO.
HYM71V75S1601TH-8
HYM71V75S1601TH-10P
HYM71V75S1601TH-10S
MAX.
FREQUENCY
125MHz
100MHz
100MHz
4 Banks
4K
Normal
TSOP-II
Gold
INTERNAL
BANK
REF.
POWER
SDRAM
PACKAGE
PLATING
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume
any responsibility for use of circuits described. No patent licenses are implied.
Rev. 1.1/Dec.99
漏1999
Hyundai MicroElectronics
