HYM5V72A1604TFG-60 Datasheet

  • HYM5V72A1604TFG-60

  • x72 EDO Page Mode DRAM Module

  • 11頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

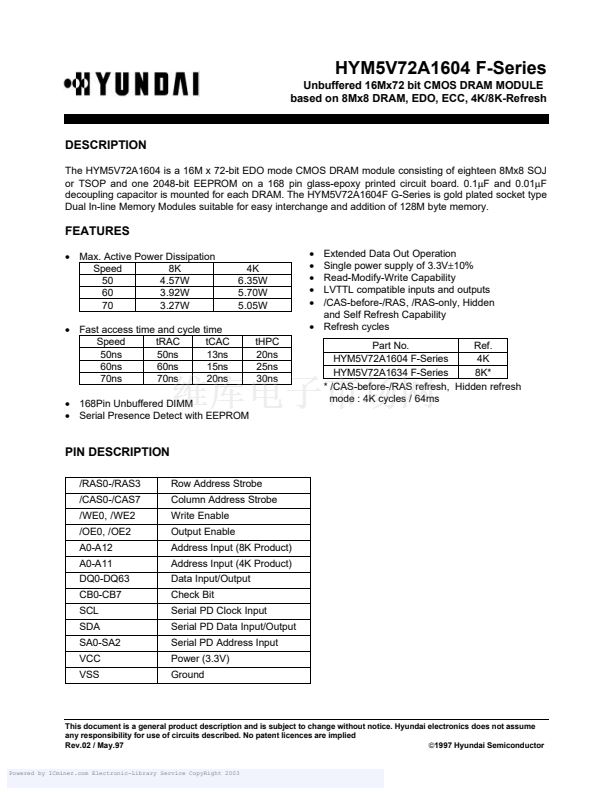

HYM5V72A1604 F-Series
Unbuffered 16Mx72 bit CMOS DRAM MODULE
based on 8Mx8 DRAM, EDO, ECC, 4K/8K-Refresh
DESCRIPTION
The HYM5V72A1604 is a 16M x 72-bit EDO mode CMOS DRAM module consisting of eighteen 8Mx8 SOJ
or TSOP and one 2048-bit EEPROM on a 168 pin glass-epoxy printed circuit board. 0.1碌F and 0.01碌F
decoupling capacitor is mounted for each DRAM. The HYM5V72A1604F G-Series is gold plated socket type
Dual In-line Memory Modules suitable for easy interchange and addition of 128M byte memory.
FEATURES
鈥?/div>
Max. Active Power Dissipation
Speed
8K
50
4.57W
60
3.92W
70
3.27W
鈥?/div>
Fast access time and cycle time
Speed
tRAC
tCAC
50ns
50ns
13ns
60ns
60ns
15ns
70ns
70ns
20ns
鈥?/div>
168Pin Unbuffered DIMM
鈥?/div>

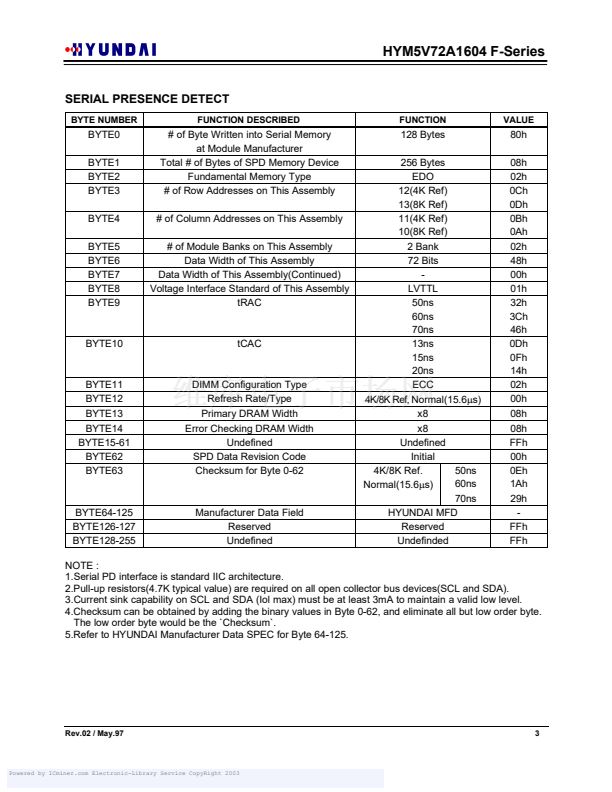

Serial Presence Detect with EEPROM
4K
6.35W
5.70W
5.05W
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Extended Data Out Operation
Single power supply of 3.3V鹵10%
Read-Modify-Write Capability
LVTTL compatible inputs and outputs
/CAS-before-/RAS, /RAS-only, Hidden
and Self Refresh Capability
鈥?/div>
Refresh cycles
Part No.
Ref.
HYM5V72A1604 F-Series
4K
HYM5V72A1634 F-Series
8K*
* /CAS-before-/RAS refresh, Hidden refresh
mode : 4K cycles / 64ms
tHPC
20ns
25ns
30ns

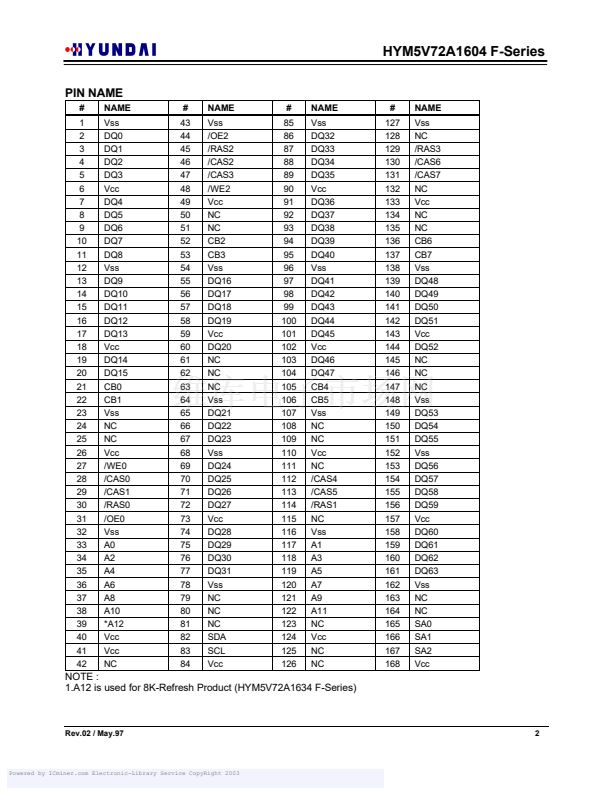

PIN DESCRIPTION
/RAS0-/RAS3
/CAS0-/CAS7
/WE0, /WE2
/OE0, /OE2
A0-A12
A0-A11
DQ0-DQ63
CB0-CB7
SCL
SDA
SA0-SA2
VCC
VSS
Row Address Strobe
Column Address Strobe
Write Enable
Output Enable
Address Input (8K Product)
Address Input (4K Product)
Data Input/Output
Check Bit
Serial PD Clock Input
Serial PD Data Input/Output
Serial PD Address Input
Power (3.3V)
Ground
This document is a general product description and is subject to change without notice. Hyundai electronics does not assume
any responsibility for use of circuits described. No patent licences are implied
Rev.02 / May.97
漏1997
Hyundai Semiconductor
