-40擄C to +85擄C operation
General Description
The HV518 is designed for vacuum fluorescent or DC plasma
applications, where it can serve as a segment, digit or matrix
display driver. Each device has 32 outputs, 32 latches and a 32
bit cascadable shift register.

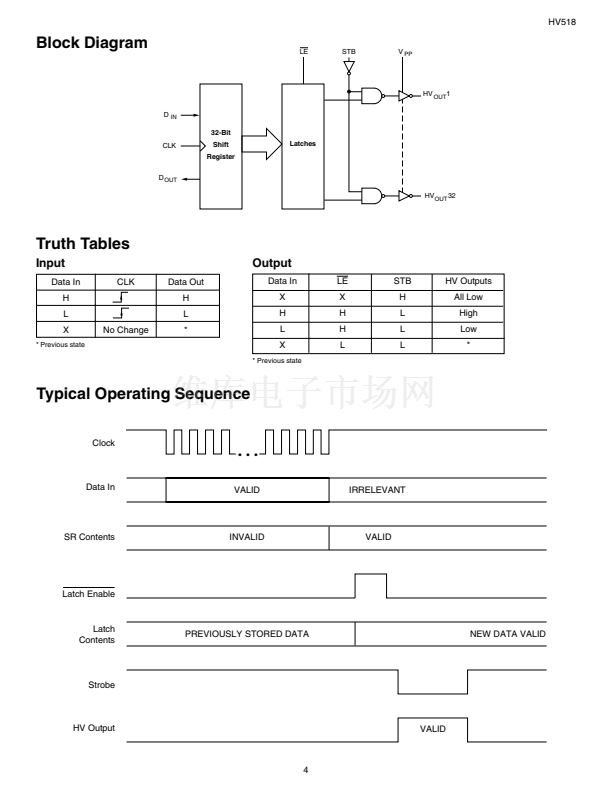

Serial data enters the shift register on the LOW-to-HIGH transition
of the clock input. With latch enable (LE) HIGH, parallel data is
transferred to the output buffers through a 32-bit latch. When LE
is low the data is stored in the latch. When STROBE is LOW, all
outputs are enabled; if STROBE is HIGH, all outputs are LOW.
Absolute Maximum Ratings
Supply voltage, V
DD 1
Supply voltage, V
PP 1
Logic input levels
1
Continuous total power dissipation
2,3
Operating temperature range
Storage temperature range
Lead temperature 1.6mm(1/16 inch)
from case for 10 seconds
-0.5V to +6.0V
-0.5V to +90V
-0.5V to V
DD
+0.5V
1200mW
-40擄C to +85擄C
-65擄C to +150擄C
260擄C
Notes:
1. All voltages referenced to GND.
2. Duty cycle is limited by the total power dissipated in the package.
3. For operation above 25擄C ambient, derate linearly to 85擄C at 20mW/擄C.
12/13/01
Supertex Inc. does not recommend the use of its products in life support applications and will not knowingly sell its products for use in such applications unless it receives an adequate "products liability
indemnification insurance agreement." Supertex does not assume responsibility for use of devices described and limits its liability to the replacement of devices determined to be defective due to
workmanship. No responsibility is assumed for possible omissions or inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications, refer to the
1
Supertex website: http://www.supertex.com. For complete liability information on all Supertex products, refer to the most current databook or to the Legal/Disclaimer page on the Supertex website.
