HUF76129D3S Datasheet

  • HUF76129D3S

  • 20A, 30V, 0.016 Ohm, N-Channel, Logic Level UltraFET Power M...

  • 110.73KB

  • 10頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HUF76129D3, HUF76129D3S
Data Sheet
September 1999
File Number
4394.5
20A, 30V, 0.016 Ohm, N-Channel, Logic
Level UltraFET Power MOSFETs
These N-Channel power MOSFETs
are manufactured using the
innovative UltraFET鈩?process.
This advanced process technology
achieves the lowest possible on-resistance per silicon area,
resulting in outstanding performance. This device is capable
of withstanding high energy in the avalanche mode and the
diode exhibits very low reverse recovery time and stored
charge. It was designed for use in applications where power
ef鏗乧iency is important, such as switching regulators,
switching converters, motor drivers, relay drivers, low-
voltage bus switches, and power management in portable
and battery-operated products.
Formerly developmental type TA76129.
Features
鈥?Logic Level Gate Drive
鈥?20A, 30V
鈥?Ultra Low On-Resistance, r
DS(ON)
= 0.016鈩?/div>
鈥?Temperature Compensating PSPICE
廬
Model
鈥?Temperature Compensating SABER
漏
Mode
鈥?Thermal Impedance SPICE Model
鈥?Thermal Impedance SABER Model
鈥?Peak Current vs Pulse Width Curve
鈥?UIS Rating Curve
鈥?Related Literature
- TB334, 鈥淕uidelines for Soldering Surface Mount
Components to PC Boards鈥?/div>
Ordering Information
PART NUMBER
HUF76129D3
HUF76129D3S
PACKAGE
TO-251AA
TO-252AA
BRAND
76129D
76129D
Symbol
D
NOTE: When ordering, use the entire part number. Add the suffix T to
obtain the TO-252AA variant in tape and reel, e.g., HUF76129D3ST.
G
S
Packaging
JEDEC TO-251AA
JEDEC TO-252AA
DRAIN
(FLANGE)
SOURCE
DRAIN
GATE
GATE
SOURCE
DRAIN
(FLANGE)
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.
UltraFET鈩?is a trademark of Intersil Corporation. PSPICE
廬
is a registered trademark of MicroSim Corporation.
SABER
漏
is a Copyright of Analogy Inc. http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999

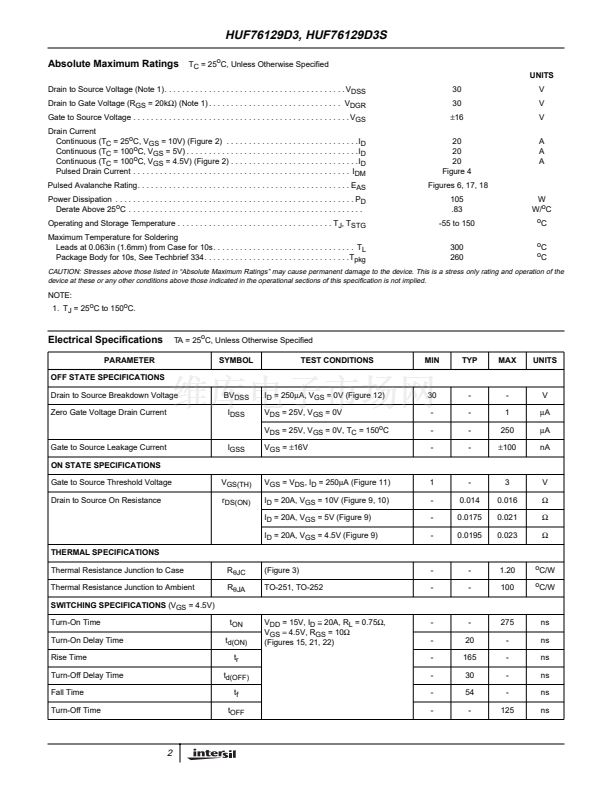

HUF76129D3S 產品屬性

  • Fairchild Semiconductor

  • N-Channel

  • 30 V

  • +/- 20 V

  • 20 A

  • 0.016 Ohms

  • Single

  • + 150 C

  • SMD/SMT

  • TO-252AA

  • Tube

  • 54 ns

  • - 55 C

  • 105 W

  • 165 ns, 47 ns

  • 30 ns, 60 ns
