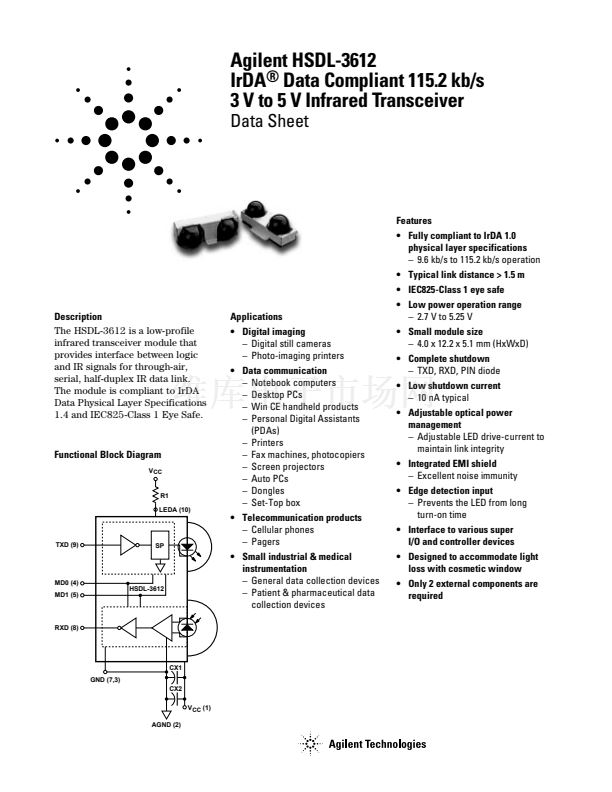

Agilent HSDL-3612

IrDA

廬

Data Compliant 115.2 kb/s

3 V to 5 V Infrared Transceiver

Data Sheet

Features

鈥?Fully compliant to IrDA 1.0

physical layer specifications

鈥?9.6 kb/s to 115.2 kb/s operation

鈥?Typical link distance > 1.5 m

鈥?IEC825-Class 1 eye safe

Description

The HSDL-3612 is a low-profile

infrared transceiver module that

provides interface between logic

and IR signals for through-air,

serial, half-duplex IR data link.

The module is compliant to IrDA

Data Physical Layer Specifications

1.4 and IEC825-Class 1 Eye Safe.

Applications

鈥?Digital imaging

鈥?Digital still cameras

鈥?Photo-imaging printers

鈥?Data communication

鈥?Notebook computers

鈥?Desktop PCs

鈥?Win CE handheld products

鈥?Personal Digital Assistants

(PDAs)

鈥?Printers

鈥?Fax machines, photocopiers

鈥?Screen projectors

鈥?Auto PCs

鈥?Dongles

鈥?Set-Top box

鈥?Telecommunication products

鈥?Cellular phones

鈥?Pagers

鈥?Small industrial & medical

instrumentation

鈥?General data collection devices

鈥?Patient & pharmaceutical data

collection devices

鈥?Low power operation range

鈥?2.7 V to 5.25 V

鈥?Small module size

鈥?4.0 x 12.2 x 5.1 mm (HxWxD)

鈥?Complete shutdown

鈥?TXD, RXD, PIN diode

鈥?Low shutdown current

鈥?10 nA typical

鈥?Adjustable optical power

management

鈥?Adjustable LED drive-current to

maintain link integrity

鈥?Integrated EMI shield

鈥?Excellent noise immunity

鈥?Edge detection input

鈥?Prevents the LED from long

turn-on time

鈥?Interface to various super

I/O and controller devices

鈥?Designed to accommodate light

loss with cosmetic window

鈥?Only 2 external components are

required

Functional Block Diagram

LEDA (10)

TXD (9)

MD0 (4)

MD1 (5)

HSDL-3612

RXD (8)

CX1

GND (7,3)

CX2

(1)

AGND (2)
