HMC427LP3 Datasheet

  • HMC427LP3

  • GaAs MMIC POSITIVE CONTROL TRANSFER SWITCH, DC - 8.0 GHz

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MICROWAVE CORPORATION
v05.0604
HMC427LP3
GaAs MMIC POSITIVE CONTROL
TRANSFER SWITCH, DC* - 8.0 GHz

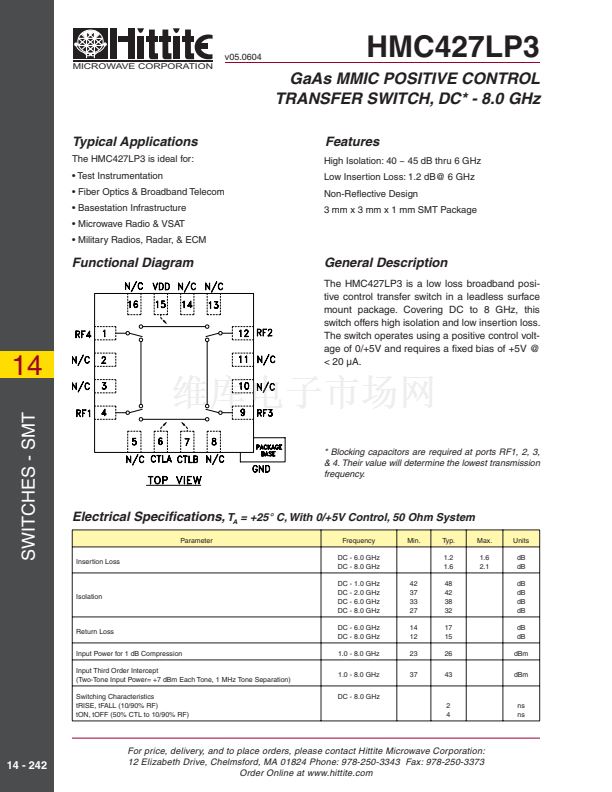

Features
High Isolation: 40 ~ 45 dB thru 6 GHz
Low Insertion Loss: 1.2 dB@ 6 GHz
Non-Re鏗俥ctive Design
3 mm x 3 mm x 1 mm SMT Package
Typical Applications
The HMC427LP3 is ideal for:
鈥?Test Instrumentation
鈥?Fiber Optics & Broadband Telecom
鈥?Basestation Infrastructure
鈥?Microwave Radio & VSAT
鈥?Military Radios, Radar, & ECM
Functional Diagram
General Description
The HMC427LP3 is a low loss broadband posi-
tive control transfer switch in a leadless surface
mount package. Covering DC to 8 GHz, this
switch offers high isolation and low insertion loss.
The switch operates using a positive control volt-
age of 0/+5V and requires a 鏗亁ed bias of +5V @
< 20 碌A(chǔ).
14
SWITCHES - SMT
* Blocking capacitors are required at ports RF1, 2, 3,
& 4. Their value will determine the lowest transmission
frequency.
Electrical Speci鏗乧ations,
T
A
= +25擄 C, With 0/+5V Control, 50 Ohm System
Parameter
Insertion Loss
Frequency
DC - 6.0 GHz
DC - 8.0 GHz
DC - 1.0 GHz
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
1.0 - 8.0 GHz
1.0 - 8.0 GHz
DC - 8.0 GHz
2
4
ns
ns
42
37
33
27
14
12
23
37
Min.
Typ.
1.2
1.6
48
42
38
32
17
15
26
43
Max.
1.6
2.1
Units
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
Isolation
Return Loss
Input Power for 1 dB Compression
Input Third Order Intercept
(Two-Tone Input Power= +7 dBm Each Tone, 1 MHz Tone Separation)
Switching Characteristics
tRISE, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)

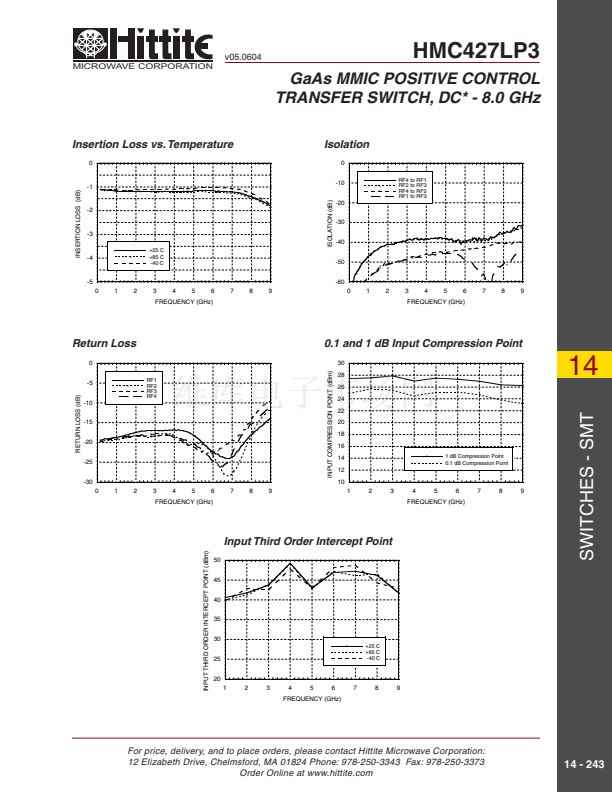

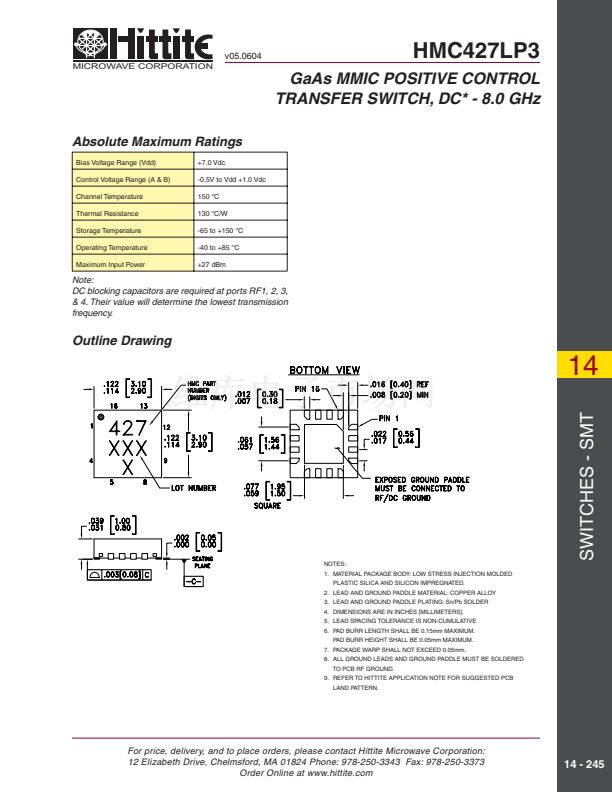

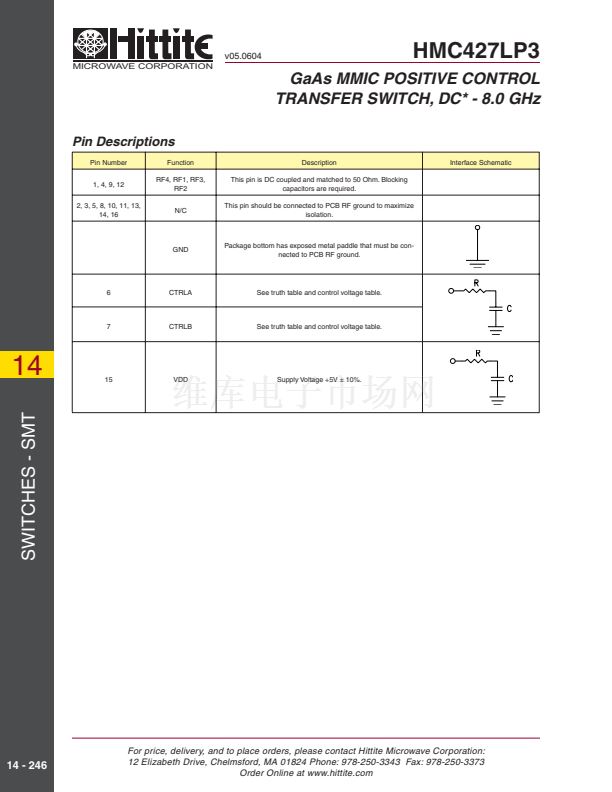

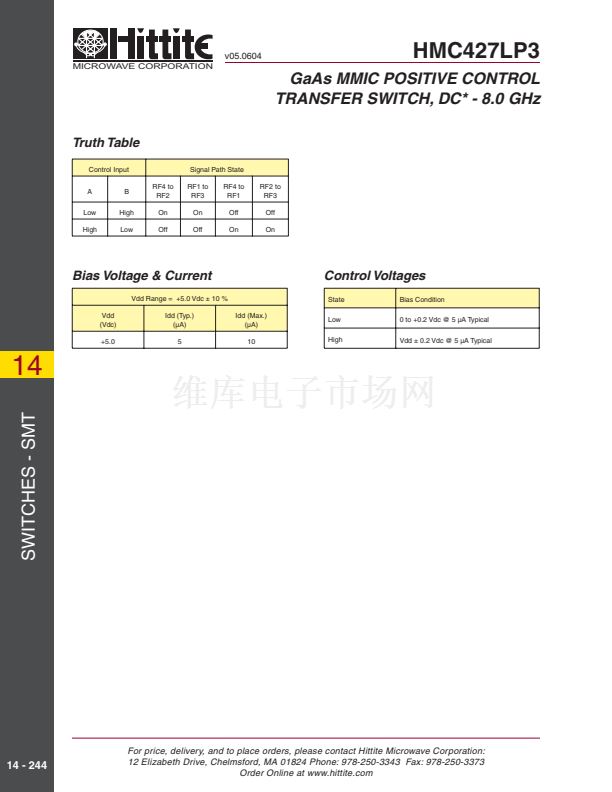

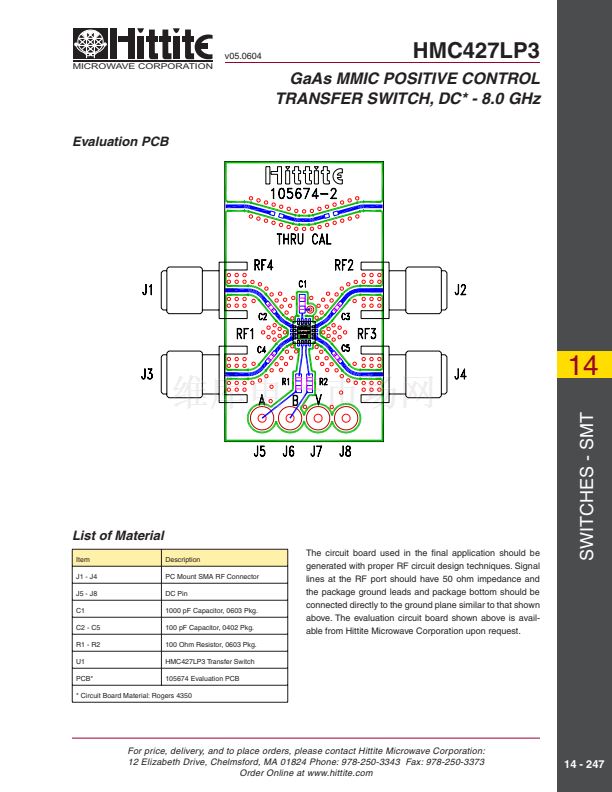

14 - 242
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com

HMC427LP3 產品屬性

  • 0現貨

  • 停產

  • -

  • 帶

  • 停產

  • VSAT

  • -

  • 0Hz ~ 8GHz

  • 42dB

  • 1.2dB

  • 2GHz

  • 26dBm

  • 43dBm

  • -

  • 50 歐姆

  • 5V

  • -40°C ~ 85°C

  • 表面貼裝型

  • 16-VFQFN 裸露焊盤

  • 16-QFN（3x3）

HMC427LP3相關型號PDF文件下載
